20692 C - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

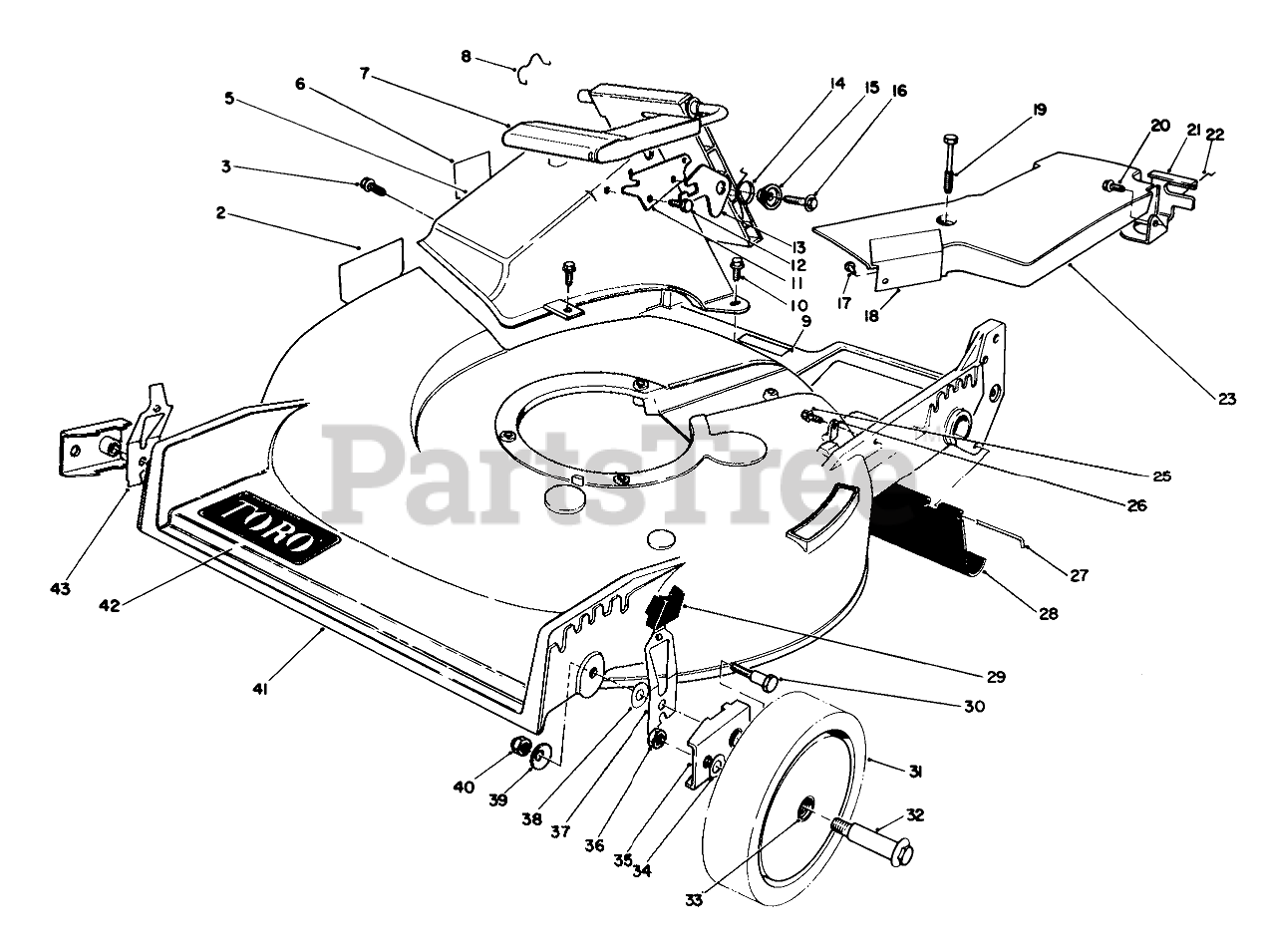

HOUSING ASSEMBLY Parts Diagram

  • Title

2

Toro 56-6270

DECAL-DANGER

$8.49

$

Usually ships in 3-6 days

0

3

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

In Stock, only 2 left!

0

5

Toro 11-6239

Tunnel-Discharge (Incl. Ref. #6)
(Superseded to 116239-01)

$

$

Not available

6

Toro 62-4060

DECAL - DANGER

$

$

Not available

7

Toro 51-0201

Discharge Door Assembly
(Superseded to 77-0200)

$

$

Not available

8

Toro 47-5840

DOOR RET SPRING

$

$

Not available

9

Toro 40-2850

Decal

$

$

Not available

10

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, Qty 7

0

11

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

12

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

13

Toro 424010

Latch-Door

$

$

Currently unavailable

14

Toro 33-4860

TORSION SPRING

$69.99

$

Usually ships in 3-6 days

0

15

Toro 43-4840

DOOR SPACER

$7.49

$

Usually ships in 3-6 days

0

16

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

17

Toro 3295-35

RIVET-HEAD, FLAT

$2.99

$

Usually ships in 3-6 days

0

18

Toro 38-8730

HEAT SHIELD

$

$

Not available

19

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, Qty 5

0

20

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

21

Toro 62-3940

Bracket-Traction Adj.
(Superseded to 82-5680-03)

$11.99

$

Usually ships in 3-6 days

0

22

Toro 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 3 left!

0

23

Toro 52-7404

Belt Cover Assembly (Incl. Ref. #17 & 18)

$71.99

$

Usually ships in 3-6 days

0

25

Toro 12-5450

SCREW

$8.99

$

Usually ships in 3-6 days

0

26

Toro 2412-83

CLAMP-CABLE

$

$

Not available

27

Toro 33-3208

ROD-SHIELD

$14.99

$

In Stock, Qty 16

0

28

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$27.99

$

In Stock, Qty 16

0

29

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 10

0

30

Toro 44-5270

PIVOT SCREW

$8.99

$

In Stock, Qty 12

0

31

Toro 11-9509

Wheel & Tire Assembly (Incl. Ref. #33)
(Superseded to 51-2751)

$30.99

$

In Stock, only 2 left!

0

32

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 3 left!

0

33

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

34

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

35

Toro 47-2940

HP PIVOT ARM ASM

$51.99

$

Usually ships in 3-6 days

0

36

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 17

0

37

Toro 52-7480

L. HP SPRING ARM ASM

$

$

Not available

38

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

39

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 9

0

40

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

41

Toro 12-2709

Housing
(Superseded to 11-4089)

$

$

Not available

42

Toro 71-0600

DECAL

$13.99

$

Usually ships in 3-6 days

0

43

Toro 52-7490

R HP SPRING ARM ASM

$

$

Not available
