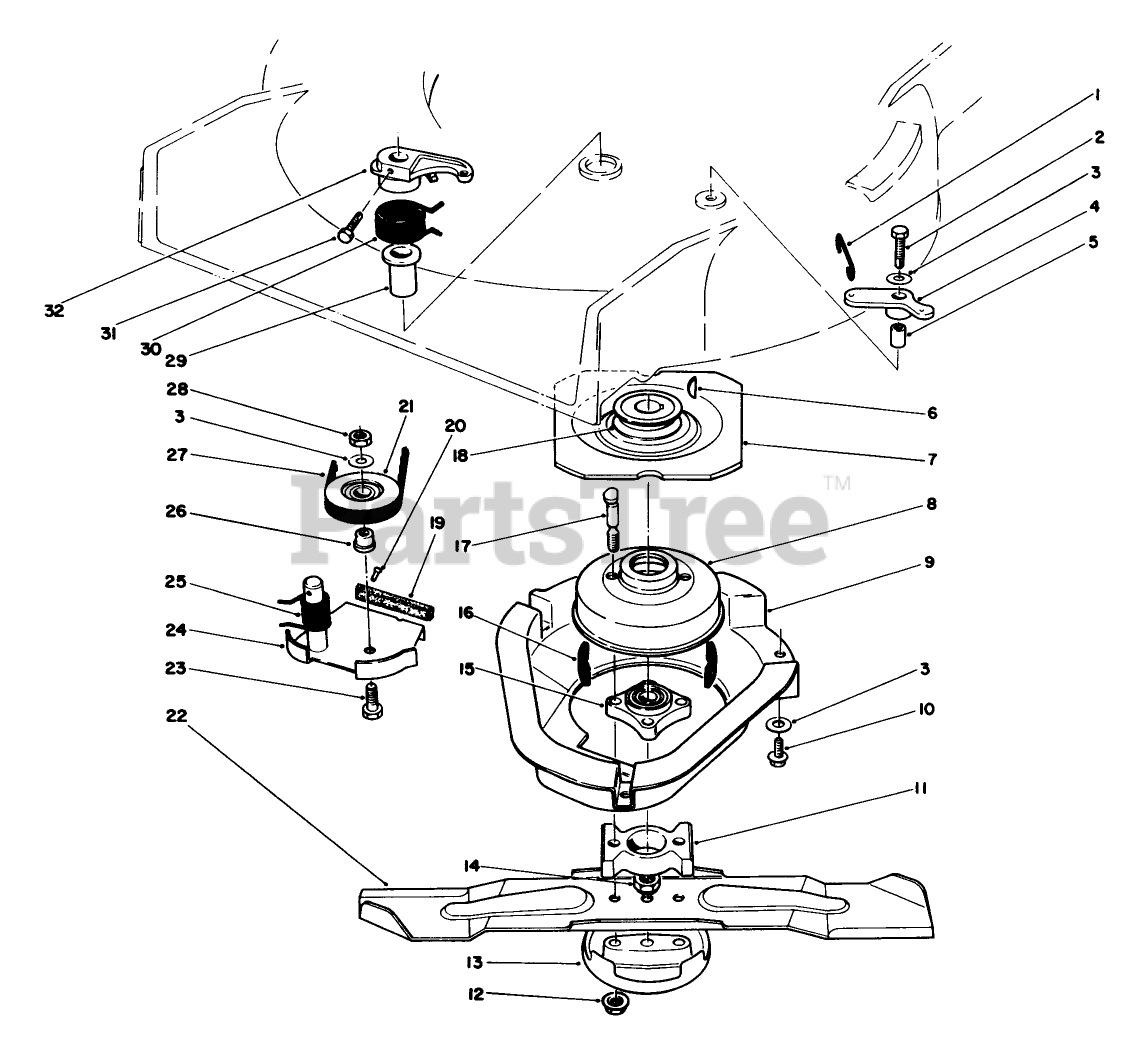

20695 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1987) Blade Brake Clutch Assembly Parts Diagram

Walk-Behind Mower

Blade Brake Clutch Assembly Parts Diagram

  • Title

1

Toro 49-2810

LINK-CONTROL

$3.99

$

In Stock, only 1 left!

0

2

Toro 32104-107

SCREW-HH

$8.99

$

Usually ships in 3-6 days

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 49-7960

BELLCRANK

$13.99

$

Usually ships in 3-6 days

0

5

Toro 49-7950

SLEEVE-BELLCRANK

$5.99

$

Usually ships in 3-6 days

0

6

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, only 2 left!

0

7

Toro 56-6160

See Supercession: 56-6160-03
(Superseded to 56-6160-03)

$119.99

$

In Stock, only 2 left!

0

8

Toro 56-6170

See Supercession: 94-9431
(Superseded to 94-9431)

$55.99

$

In Stock, Qty 18

0

9

Toro 46-5690

SHIELD BBC

$73.99

$

In Stock, only 3 left!

0

10

Toro 32144-11

SCREW-THD ROLL, HWH

$8.49

$

In Stock, only 2 left!

0

11

Toro 42-6760

See Supercession: 107-4275
(Superseded to 107-4275)

$

$

Not available

12

Toro 54-9190

NUT-LOCK
(Superseded to 127-6852)

$2.99

$

In Stock, Qty 20+

0

13

Toro 42-0910

See Supercession: 80-2770
(Superseded to 80-2770)

$

$

Not available

14

Toro 3296-33

NUT-LOCK, NI

$2.99

$

In Stock, only 2 left!

0

15

Toro 42-6890

HUB ASM

$113.99

$

In Stock, only 1 left!

0

16

Toro 52-3480

DAMPENER-VIBRATION

$1.99

$

Usually ships in 3-6 days

0

17

Toro 42-3190

BOLT-BLADE

$13.99

$

In Stock, only 2 left!

0

18

Toro 56-6180

PULLEY-DRIVER

$53.99

$

In Stock, only 3 left!

0

19

Pad-Brake

$

$

Not available

20

Toro 3295-23

.185 DIA X .375 RT +

$12.99

$

Usually ships in 3-6 days

0

21

Toro 46-5650

See Supercession: 117-5299
(Superseded to 117-5299)

$45.99

$

In Stock, Qty 13

0

22

Toro 42-1000

See Supercession: 107-4276-03
(Superseded to 107-4276-03)

$30.99

$

In Stock, only 2 left!

0

23

Toro 322-16

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

24

Toro 49-7920

See Supercession: 94-1601
(Superseded to 94-1601)

$

$

Not available

25

Toro 46-5670

SPRING-TORSION

$12.99

$

Usually ships in 3-6 days

0

26

Toro 46-5630

HUB-PULLEY, IDLER

$20.99

$

In Stock, only 2 left!

0

27

Toro 42-0884

V-BELT

$18.99

$

In Stock, Qty 20+

0

28

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

29

Toro 46-6680

BUSHING PM

$29.99

$

Usually ships in 3-6 days

0

30

Toro 49-7970

SPRING-TORSION

$16.99

$

Usually ships in 3-6 days

0

31

Toro 32104-96

SCREW-HH

$6.99

$

In Stock, Qty 5

0

32

Toro 49-2820

LEVER

$13.99

$

In Stock, only 2 left!

0
