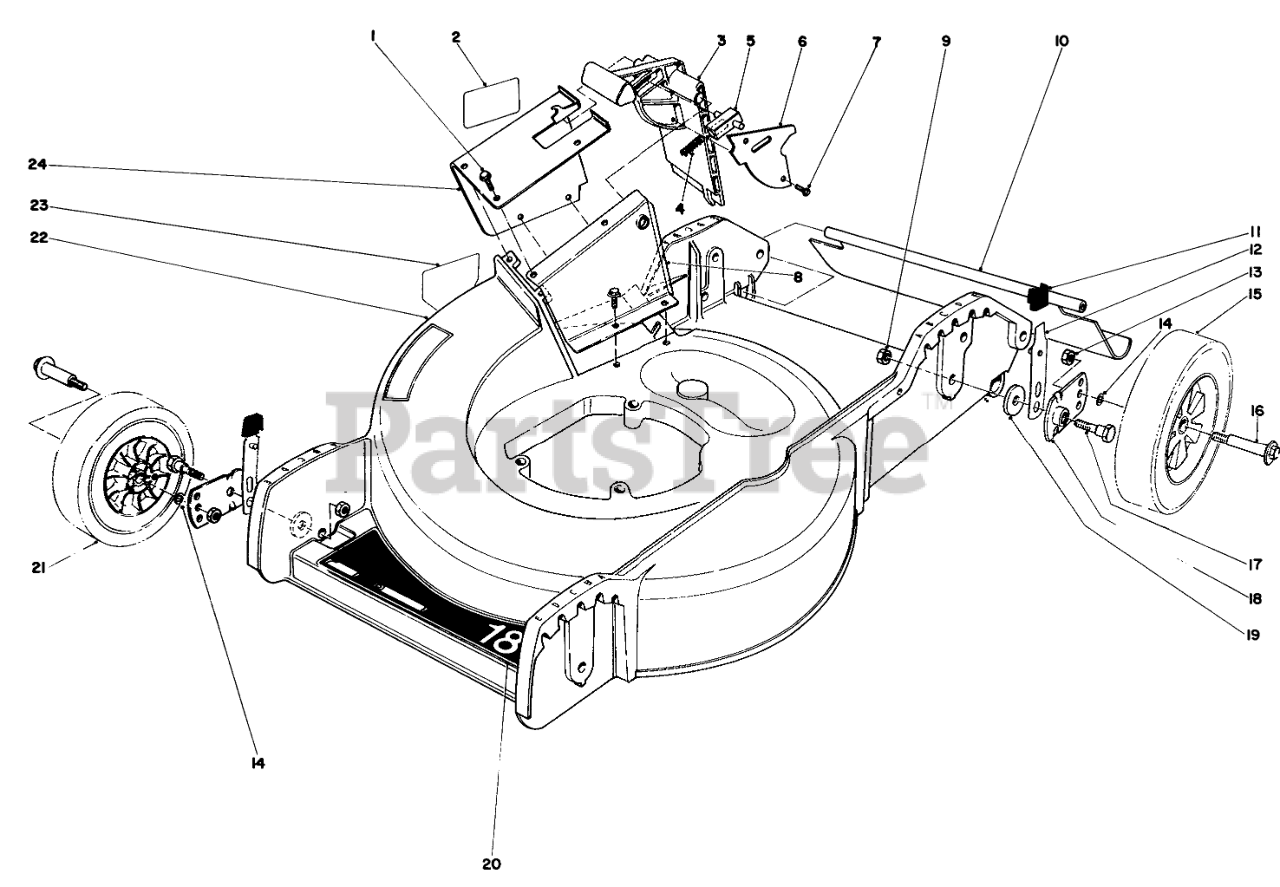

20698 - Toro Walk-Behind Mower (SN: 002000001 - 002999999) (1982) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

HOUSING ASSEMBLY Parts Diagram

  • Title
Usually ships in 1 day

$

$2.90

0

2

Toro Part# 46-2240

Danger Decal
(Superseded to 71-3410)
Usually ships same day

Not available

$

$

3

Toro Part# 33-0410

Door Mulching
(Superseded to 33-0412)
Usually ships same day

Not available

$

$

4

Toro Part# 33-0450

SPRING-COMPRESSION, LATCH
Usually ships in 5 to 8 days

$

$5.91

0

5

Toro Part# 33-0470

Door Latch
(Superseded to 47-5551)
Usually ships same day

Not available

$

$

6

Toro Part# 33-0440

Cover Door
(Superseded to 33-0441)
Usually ships in 5 to 8 days

$

$9.64

0

Usually ships in 5 to 8 days

$

$1.99

0

8

Toro Part# 33-0430

Inner Tunnel
Usually ships same day

Not available

$

$

9

Toro Part# 32146-5

Nut
(Superseded to 32153-3)
Usually ships in 5 to 8 days

$

$4.98

0

10

Toro Part# 33-2380

SHIELD - TRAILING
Usually ships in 5 to 8 days

$

$48.32

0

11
Usually ships in 1 day

$

$4.46

0

12

Toro Part# 25-7890

SPRING ARM ASM
Usually ships same day

Not available

$

$

13

Toro Part# 32146-6

Nut
(Superseded to 3296-6)
Usually ships in 1 day

$

$1.44

0

14
Usually ships in 1 day

$

$1.38

0

15

Toro Part# 27-6200

WHEEL TIRE ASM 8 IN
Usually ships in 1 day

$

$45.08

0

16

Toro Part# 27-6230

BOLT-WHEEL
Usually ships in 1 day

$

$6.59

0

17

Toro Part# 25-3440

PIVOT SCREW
Usually ships in 5 to 8 days

$

$14.29

0

18

Toro Part# 33-0400

PIVOT ARM ASSY
Usually ships in 5 to 8 days

$

$26.93

0

19

Toro Part# 33-0390

PIVOT WASHER
Usually ships in 1 day

$

$2.64

0

20

Toro Part# 44-0470

Decal-Rear Bagger
Usually ships same day

Not available

$

$

21

Toro Part# 27-6210

WHEEL TIRE ASM 7 IN
Usually ships same day

Not available

$

$

22

Toro Part# 8-3529

Housing (Incl. Ref. #23)
(Superseded to 12-1089)
Usually ships in 5 to 8 days

$

$776.53

0

23

Toro Part# 39-5770

DECAL-DANGER
Usually ships in 1 day

$

$6.35

0

24

Toro Part# 11-2849

Tunnel-Outer(Incl. Ref. #2)
(Superseded to 13-5829)
Usually ships same day

Not available

$

$

Toro Part# 11-2039

Loose Parts

Note: Not illustrated

Usually ships same day

Currently unavailable

$

$
