207 (190-207-100) - Cub Cadet 3-Point Hitch att 3 Point Hitch Parts Diagram

3-Point Hitch

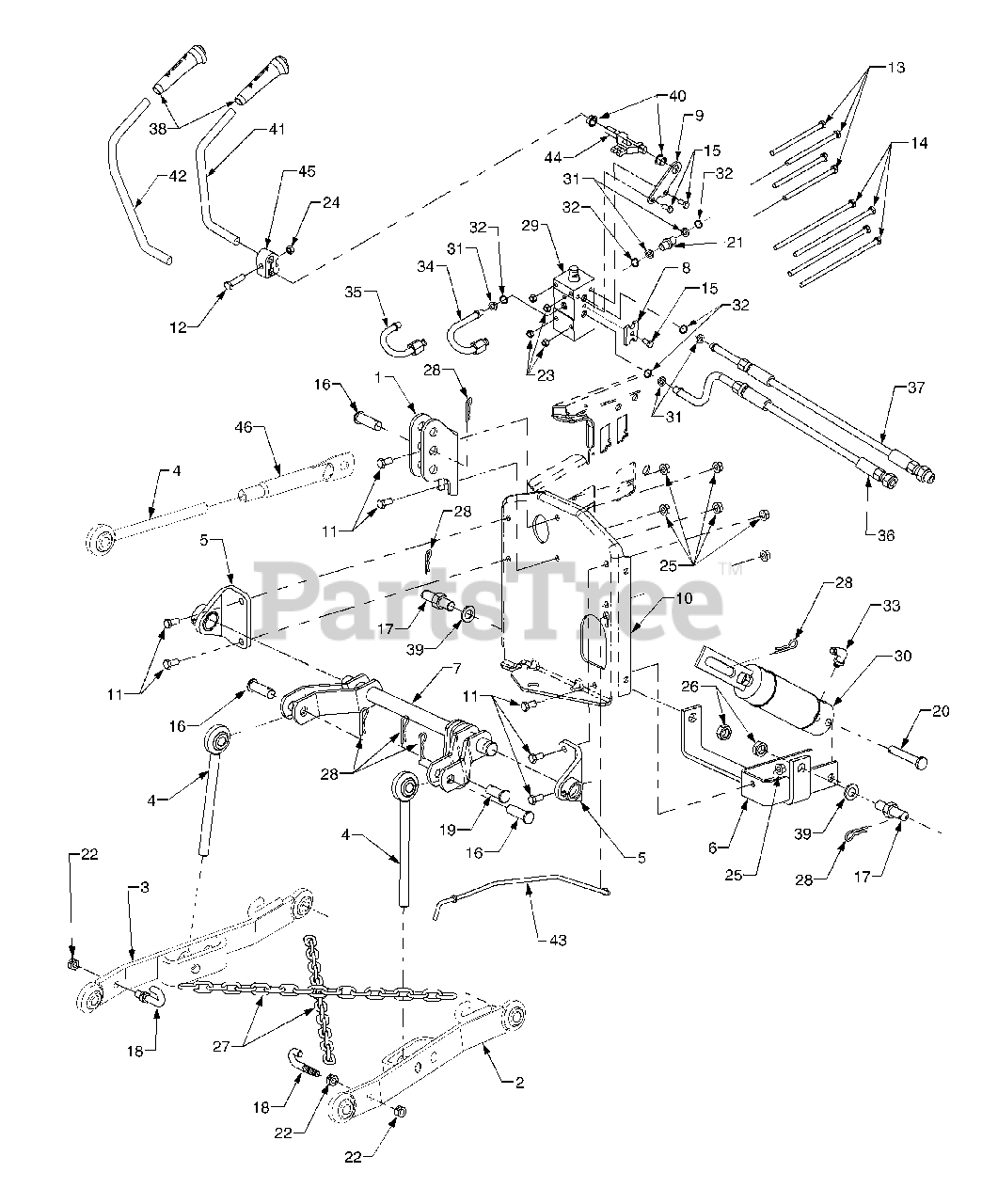

3 Point Hitch Parts Diagram

  • Title

1

Cub Cadet 13026-0637

Hitch Bracket

$56.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-0769-0637

Link Ass'y., Lower - RH

$

$

Not available

3

Cub Cadet 603-0768-0637

Link Ass'y., Lower - LH

$

$

Not available

4

Cub Cadet 603-0606

Link, Adjustment

$90.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 603-0740-0637

Bracket, Rockshaft

$

$

Not available

Cub Cadet 737-3000

Fitting, Grease
(Superseded to 937-3000)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 603-0742-0637

Brace Assembly, Hitch

$

$

Not available

7

Cub Cadet 611-3026-0637

Rockshaft Assembly,

$

$

Not available

8

Cub Cadet 703-1803

Clamp, Double Valve
(Superseded to 903-1803)

$

$

Not available

9

Cub Cadet 703-3154-0637

Bracket, Lift Valve

$30.99

$

In Stock, only 1 left!

0

10

Cub Cadet 703-3747-0716

Plate, Hitch 3 Point

$

$

Not available

11

Cub Cadet 710-0514

Screw, Hex Cap 3/8-16 x 1.00 GR 5

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0528

Screw, Hex Cap 5/16-18 x 1.25 GR5

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-1058

Screw, Hex Cap 1/4-20 x 4.0 GR5

$5.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-1656

Screw, Hex Cap 1/4-20 x 6.0 GR5

$

$

Not available

15

Cub Cadet 710-3013

Screw, Hex Cap 1/4-20 x .5 GR5

$4.49

$

In Stock, only 2 left!

0

16

Cub Cadet 711-0174

Pin, Clevis, .624 Dia.

$10.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 711-0497

Pin, Link Clevis

$

$

Not available

18

Cub Cadet 711-0639

Hook, 7/16-14 Thrd.

$10.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 711-0654

Pin, Clevis, .62 x 1.34

$14.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 711-1400

Pin, Clevis, .5 x 3.2

$37.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 711-3294

Adapter, Valve

$33.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 712-0290

Nut, Hex Lock, 7/16-14

$4.49

$

In Stock, Qty 12

0

23

Cub Cadet 712-0324

Nut, Hex Insert Lock, 1/4-20

$3.49

$

In Stock, Qty 20+

0

24

Cub Cadet 712-0429

Nut, Hex Insert Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

26

Cub Cadet 712-0923

Nut, Hex Lock, 5/8-18

$6.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 713-0495

Chain, 18.99 Lg

$

$

Not available

28

Cub Cadet 714-0147

Pin, Internal Cotter

$4.49

$

In Stock, Qty 12

0

29

Cub Cadet 717-3452

Valve Assembly, Hydraulic Lift
(Superseded to 717P3452)

$440.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 717-3514

Cylinder Assembly, Lift

$674.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 721-0492

O-Ring, Backup, .327 x .433 x .05

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 721-3021

O-Ring, .301 ID x .070 Dia
(Superseded to 921-3021)

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 727-3012

O-Ring

$24.99

$

In Stock, only 4 left!

0

Cub Cadet 721-3001

Elbow, 90° Fitting w/ O-Ring

$3.49

$

In Stock, Qty 8

0

34

Cub Cadet 727-3149

Tube, Hydro Return, Aux. Valve #1

$

$

Not available

35

Cub Cadet 727-3150

Tube, Hydro Return, Aux. Valve #2

$47.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 727-3200

Hose, 3 Point Lift

$120.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 727-3201

Hose, 3 Point Return

$124.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 731-3259

Knob, Valve Handle

$17.99

$

In Stock, only 2 left!

0

39

Cub Cadet 736-0366

Washer, Flat, .640 x 1.12 x .125

$4.49

$

In Stock, Qty 14

0

40

Cub Cadet 741-0491

Bearing, Nylon Flange, .5 ID

$4.99

$

In Stock, Qty 20+

0

41

Cub Cadet 747-3350A

Handle, Hydraulic Valve Aux. #1

$44.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 747-3351A

Handle, Hydraulic Valve Aux. #2

$46.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 747-3424

Rod, Pump Bypass

$52.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 748-3081A

Link, Lift

$46.99

$

In Stock, only 1 left!

0

45

Cub Cadet 748-3082

Clamp, Handle

$33.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 749-0238-0637

Tube, Clv.

$44.99

$

Usually ships in 3-6 days

0
