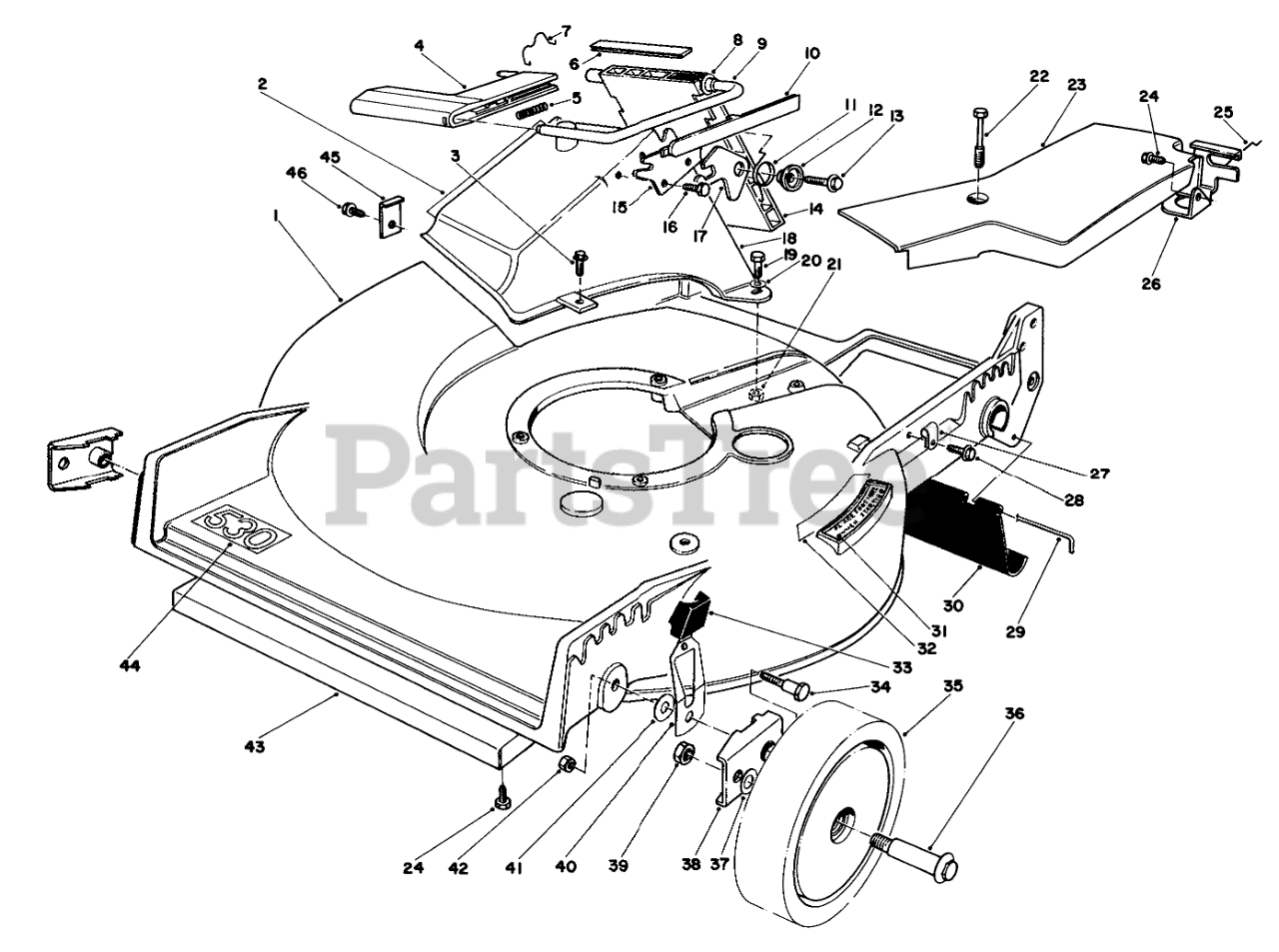

20705 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 11-4089

21 SP RB HSG/DECAL

$

$

Not available

2

Toro 46-9350

ATTENTION DECAL

$

$

Not available

3

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

4

Toro 46-3520

Handle-Door

$

$

Not available

5

Toro 46-7060

Spring

$

$

Not available

6

Toro 464820

Cover-Door

$

$

Currently unavailable

7

Toro 47-5840

DOOR RET SPRING

$

$

Not available

8

Toro 23-0880

BUSHING-NYLON

$

$

Not available

9

Toro 46-3530

DOOR ROD +

$

$

Not available

10

Toro 46-7050

DOOR HANDLE COVER

$4.99

$

Usually ships in 3-6 days

0

11

Toro 334860

Spring-Torsion

$

$

Currently unavailable

12

Toro 43-4840

DOOR SPACER

$7.49

$

Usually ships in 3-6 days

0

13

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

14

Toro 46-3510

Door Discharge
(Superseded to 77-0200)

$

$

Not available

15

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

16

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

17

Toro 424010

Latch-Door

$

$

Currently unavailable

18

Toro 46-3500

Tunnel Discharge
(Superseded to 82-9151)

$164.99

$

Usually ships in 3-6 days

0

19

Toro 321-7

SCREW-HH

$5.49

$

In Stock, only 4 left!

0

20

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

22

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, Qty 6

0

23

Toro 42-0381

Cover-Belt
(Superseded to 52-7404)

$71.99

$

Usually ships in 3-6 days

0

24

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 8

0

25

Toro 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 3 left!

0

26

Toro 46-5870

Bracket-Traction Adj.
(Superseded to 82-5680-03)

$11.99

$

Usually ships in 3-6 days

0

27

Toro 2412-83

CLAMP-CABLE

$

$

Not available

28

Toro 12-5450

SCREW

$8.99

$

In Stock, only 2 left!

0

29

Toro 33-3208

ROD-SHIELD

$14.99

$

In Stock, Qty 16

0

30

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$27.99

$

In Stock, Qty 16

0

31

Toro 46-7370

STEP PAD DECAL

$24.99

$

Usually ships in 3-6 days

0

32

Toro 46-9330

Decal-Place Foot Here

$

$

Not available

33

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 13

0

34

Toro 44-5270

PIVOT SCREW

$8.99

$

In Stock, Qty 13

0

35

Toro 46-1140

Wheel & Tire Assembly

$

$

Not available

36

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 3 left!

0

37

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

38

Toro 47-2940

HP PIVOT ARM ASM

$51.99

$

Usually ships in 3-6 days

0

39

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

40

Toro 44-0990

Spring Arm
(Superseded to 99-5260)

$47.99

$

Usually ships in 3-6 days

0

41

Toro 54460

Washer

$

$

Currently unavailable

42

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

43

Toro 46-5400

Shield-front
(Superseded to 46-5400-03)

$56.99

$

Usually ships in 3-6 days

0

44

Toro 46-9410

Decal-530

$

$

Not available

45

Toro 47-6540

TUNNEL CLIP

$

$

Not available

46

Toro 12-3270

SCREW

$3.49

$

In Stock, only 2 left!

0
