20705 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1979) REWIND STARTER NO. 590531 Parts Diagram

Walk-Behind Mower

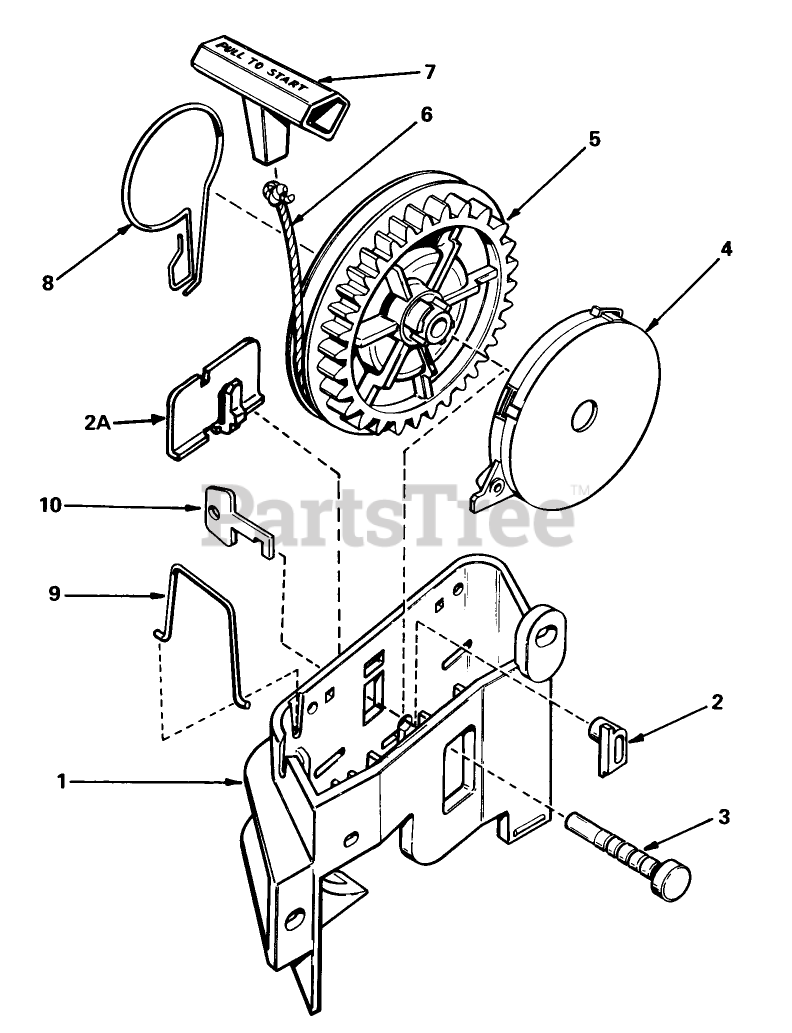

REWIND STARTER NO. 590531 Parts Diagram

  • Title

1

Toro 590523

Bracket Starter

$

$

Currently unavailable

2

Toro 590524

Pawl, Locking Not used on all engine models)

$

$

Currently unavailable

2A

Toro 590538

Clip, Starter Bracket (Used On Starters Not Equipped With Pawl, Ref. No. 2)

$

$

Currently unavailable

3

Toro 590525

Pin-Pulley

$

$

Currently unavailable

4

Toro 590526

Spring Assy., Rewind (Incl. Ref. #3)

$

$

Currently unavailable

5

Toro 590522

Pulley

$

$

Currently unavailable

6

Toro 590527

Rope Starter (Length 65" & 9/64" Dia.)

$

$

Currently unavailable

7

Toro 590452

Handle-Starter

$

$

Currently unavailable

8

Toro 590528

Brake

$

$

Currently unavailable

9

Toro 590529

Clip-Rope

$

$

Currently unavailable

10

Toro 590530

Key (Not Used On All Engine Models

$

$

Currently unavailable
