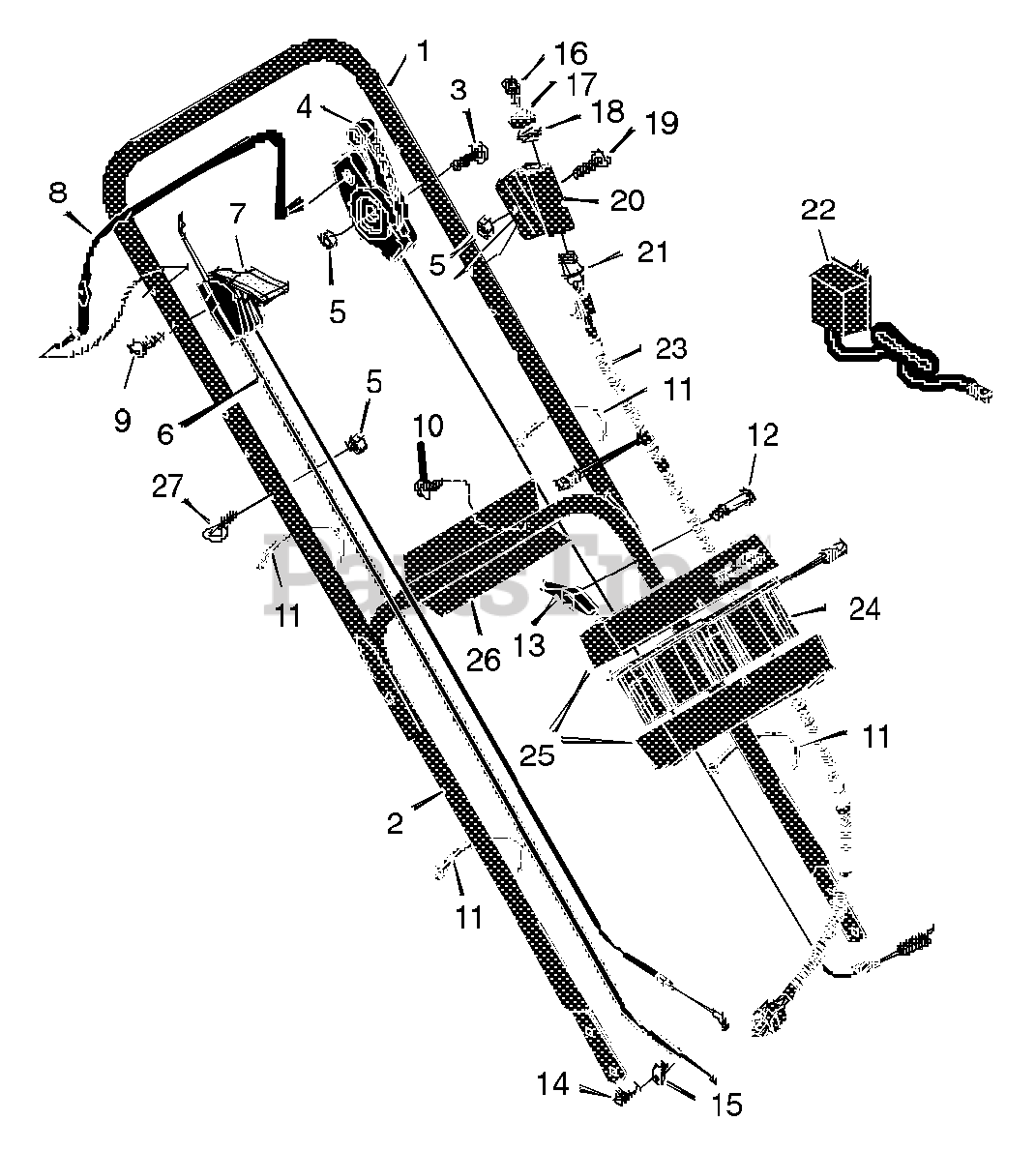

20705x92A - Murray 20" Walk-Behind Mower (1997) Handle Assembly Parts Diagram

20" Walk-Behind Mower

Handle Assembly Parts Diagram

  • Title

1

Murray 671918E701

Handle, Upper (Black)

$11.99

$

Usually ships in 2-12 days

0

--

Murray 671918E724

Handle, Upper - (Gray)

$

$

Currently unavailable

2

Murray 671940E701MA

Handle, Lower (Black)

$102.99

$

Usually ships in 2-12 days

0

--

Murray 671940E724

Handle, Lower (Gray)

$

$

Currently unavailable

3

Murray 03X144

Bolt

$3.99

$

Usually ships in 2-12 days

0

4

Murray 672067MA

Control, Drive

$51.99

$

Usually ships in 2-12 days

0

5

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

6

Murray 672130MA

Cable, Stop

$30.99

$

Usually ships in 2-12 days

0

7

Murray 672134MA

Throttle Control

$30.99

$

Usually ships in 2-12 days

0

8

Murray 671922E701

Lever, Stop

$

$

Currently unavailable

9

Murray 03X144

Screw

$3.99

$

Usually ships in 2-12 days

0

10

Murray 26X220MA

Screw

$3.49

$

Usually ships in 2-12 days

0

11

Murray 071372MA

Fastener, Cable

$4.49

$

In Stock, only 1 left!

0

12

Murray 002X77MA

Bolt

$3.99

$

In Stock, Qty 6

0

13

Murray 071294

Knob
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

14

Murray 26X268MA

Screw

$3.99

$

Usually ships in 2-12 days

0

15

Murray 042294

Clamp

$

$

Not available

16

Murray 043956MA

GUIDE, ROPE

$5.99

$

Usually ships in 2-12 days

0

17

Murray 091488

Cap
(Superseded to 091488MA)

$4.99

$

In Stock, only 4 left!

0

18

Murray 091489MA

Nut
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

19

Murray 03X136MA

Bolt

$3.49

$

Usually ships in 2-12 days

0

20

Murray 671916MA

Cover, Ignition

$1.99

$

Usually ships in 2-12 days

0

21

Murray 776011MA

Switch Ignition & Key

$20.99

$

Usually ships in 2-12 days

0

22

Murray 671992MA

Charger, Battery

$54.99

$

Usually ships in 2-12 days

0

23

Murray 776012

Harness, Wiring

$

$

Currently unavailable

24

Murray 776014MA

Battery

$55.99

$

Usually ships in 2-12 days

0

25

Murray 776013

Case, Battery

$

$

Currently unavailable

26

Murray 671959

Bracket, Battery

$

$

Currently unavailable

27

Murray 020729

Key, Ignition

$5.49

$

In Stock, only 1 left!

0
