20708 - Toro 53cm Walk-Behind Mower (SN: 079000001 - 079999999) (1997) ENGINE ASSEMBLY Parts Diagram

53cm Walk-Behind Mower

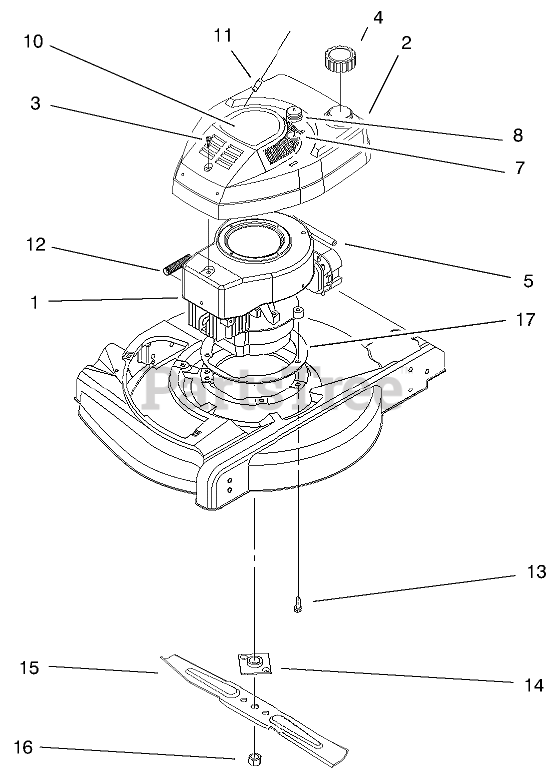

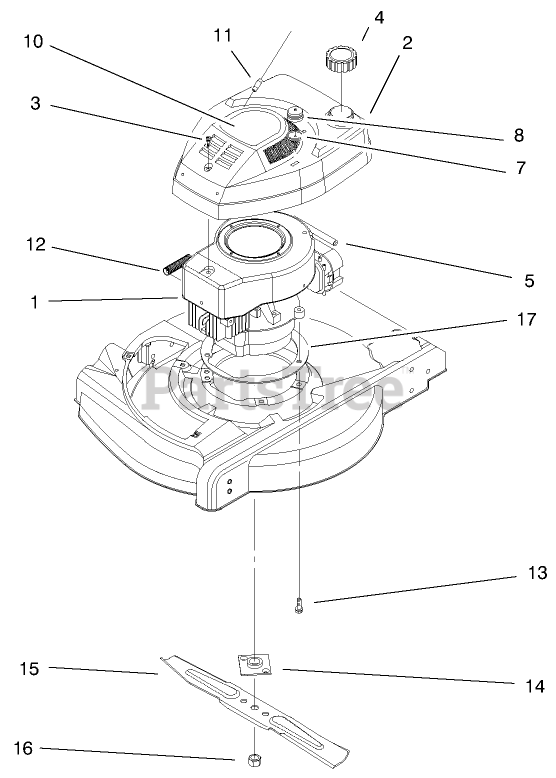

ENGINE ASSEMBLY Parts Diagram

  • Title

1

ASM-Engine

$

$

Not available

2

Toro 92-6380

TANK & SHROUD ASM

$138.99

$

In Stock, only 1 left!

0

3

Toro 93-4302

SCREW

$8.49

$

In Stock, Qty 12

0

4

Toro 93-3660

ASM-Fuel/Oil Cap
(Superseded to 98-8344)

$25.99

$

In Stock, only 1 left!

0

5

Toro 612782

LINE-FUEL

$7.99

$

In Stock, Qty 7

0

7

Toro 44-2750

BODY-PRIMER

$9.49

$

In Stock, Qty 20+

0

8

Toro 66-7460

BULB-PRIMER

$6.99

$

In Stock, Qty 20+

0

10

Toro 95-7058

DECAL - RECOIL,2 CYCLE

$

$

Not available

11

Toro 92-1701

STOP-ROPE
(Superseded to 2210-316)

$8.49

$

Usually ships in 3-6 days

0

12

Toro 93-4306

SPRING-COMPRESSION

$6.99

$

In Stock, only 2 left!

0

13

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

14

Toro 677525

PLATE AND COLLAR ASM

$47.99

$

In Stock, Qty 6

0

15

Toro 612543

Blade
(Superseded to 612543-03)

$31.99

$

In Stock, Qty 20+

0

16

Toro 603164

NUT-BLADE
(Superseded to 121-3611)

$6.49

$

In Stock, Qty 9

0

17

Toro 93-7152

PLATE - ENGINE

$111.99

$

Usually ships in 3-6 days

0
