20708 - Toro 53cm Walk-Behind Mower (SN: 079000001 - 079999999) (1997) Handle Assembly Parts Diagram

53cm Walk-Behind Mower

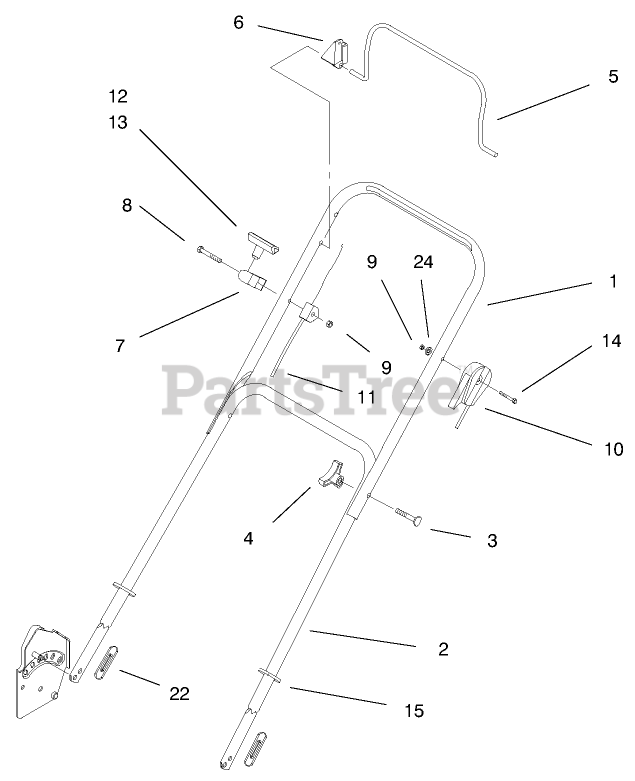

Handle Assembly Parts Diagram

  • Title

1

Toro 95-1713

See Supercession: 95-1713-05
(Superseded to 95-1713-05)

$

$

Not available

2

Toro 614643

See Supercession: 614643-05
(Superseded to 614643-05)

$

$

Not available

3

Toro 614697

SCREW

$2.99

$

In Stock, Qty 18

0

4

Toro 614243

See Supercession: 98-7134
(Superseded to 98-7134)

$3.49

$

In Stock, Qty 18

0

5

Toro 93-4184

See Supercession: 93-4184-03
(Superseded to 93-4184-03)

$45.99

$

Usually ships in 3-6 days

0

6

Toro 92-5412

See Supercession: 107-0757
(Superseded to 107-0757)

$4.99

$

In Stock, Qty 20+

0

7

Toro 93-7383

See Supercession: 86-9671
(Superseded to 86-9671)

$4.99

$

In Stock, Qty 10

0

8

Toro 321-50

SCREW-HH

$1.99

$

In Stock, only 3 left!

0

9

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 13

0

10

Toro 95-7069

CABLE - THROTTLE

$

$

Not available

11

Toro 92-7738

CABLE-FLYWHEEL BRAKE

$33.99

$

In Stock, only 2 left!

0

12

Toro 612824

CLIP-STARTER

$4.49

$

In Stock, Qty 9

0

13

Toro 612825

See Supercession: 81-1630
(Superseded to 81-1630)

$

$

Not available

14

Toro 321-48

SCREW-HH

$2.49

$

In Stock, only 2 left!

0

15

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 9

0

22

Toro 93-3653

See Supercession: 104-1013
(Superseded to 104-1013)

$

$

Not available

24

Toro 92-8632

See Supercession: 115-0995
(Superseded to 115-0995)

$7.49

$

In Stock, only 3 left!

0
