20710 - Toro 53cm Walk-Behind Mower (SN: 079000001 - 079999999) (1997) COVER & GEAR CASE ASSEMBLY Parts Diagram

53cm Walk-Behind Mower

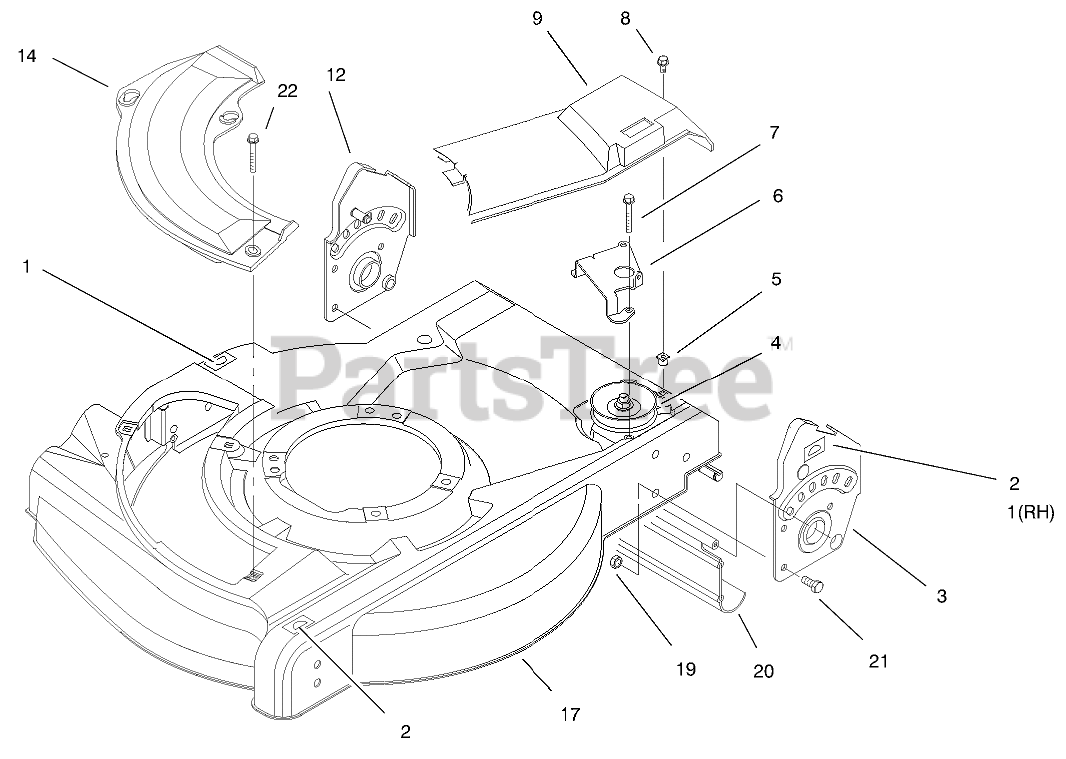

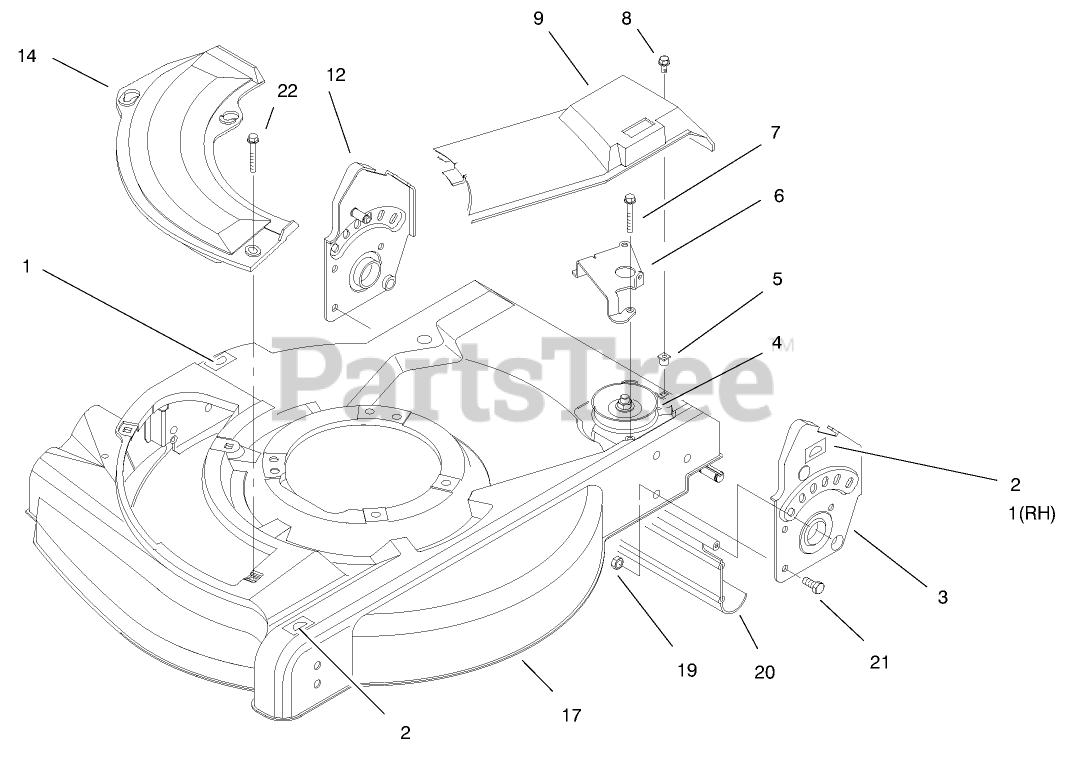

COVER & GEAR CASE ASSEMBLY Parts Diagram

  • Title

1

Toro 93-6671

DECAL-HOC, RH

$

$

Not available

2

Toro 93-6670

DECAL-HOC, LH

$

$

Not available

3

Toro 92-7724

HANDLE BRACKET ASM-LH
(Superseded to 105-8604)

$47.99

$

Usually ships in 3-6 days

0

4

Toro 92-7735

Gear Case
(Superseded to 104-7671)

$

$

Not available

5

Toro 605120

NUT-CLIP

$3.99

$

In Stock, Qty 16

0

6

Toro 92-7728

Guide-Transmission
(Superseded to 92-7728-03)

$7.99

$

In Stock, only 1 left!

0

7

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

8

Toro 92-9665

SCREW-TAP

$1.99

$

In Stock, Qty 11

0

9

Toro 95-7068

COVER-DRIVE

$25.99

$

In Stock, only 1 left!

0

12

Toro 92-7723

HANDLE BRACKET ASM-RH
(Superseded to 105-8602)

$45.99

$

In Stock, only 1 left!

0

14

Toro 95-7052

PLATE-OPENING, CHUTE

$30.99

$

In Stock, only 2 left!

0

17

Toro 95-7088

Housing & Baffle ASM (Incl. Ref. #1-2, 6, & 10 pg. 1)(Incl. Ref. #1-2 pg. 2)

$422.99

$

Usually ships in 3-6 days

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 92-8647

SHIELD-TRAILING

$35.99

$

In Stock, Qty 9

0

21

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

22

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, Qty 7

0
