20710 - Toro 53cm Walk-Behind Mower (SN: 079000001 - 079999999) (1997) ENGINE ASSEMBLY Parts Diagram

53cm Walk-Behind Mower

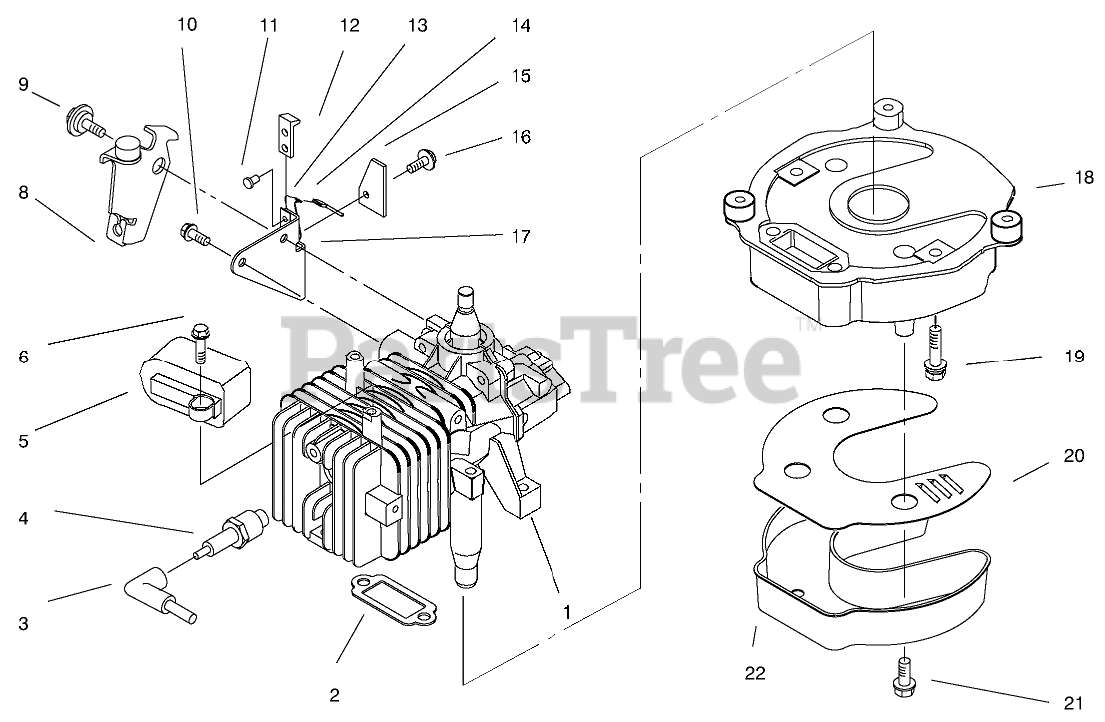

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 94-5737

Short Block (Incl. Ref. #2, Ref. #9 pg. 8)

$

$

Not available

2

Toro 93-1233

GASKET-EXH. VF

$1.99

$

In Stock, Qty 16

0

3

CD Ignition

$

$

Not available

Toro 681678

HT LEAD&COVER XEV

Note: Not illustrated

$23.99

$

Usually ships in 3-6 days

0

4

Toro 614009

SPARK PLUG

$5.49

$

In Stock, Qty 20+

0

5

Toro 684049

CD Ignition (Incl. Ref. #3)
(Superseded to 99-2916)

$78.99

$

In Stock, Qty 8

0

6

Toro 613208

SCREW

$1.99

$

In Stock, only 2 left!

0

8

Toro 93-4312

PLATE-BRAKE

$64.99

$

In Stock, only 3 left!

0

9

Toro 92-9698

SCREW-SHOULDER

$5.49

$

In Stock, only 1 left!

0

10

Toro 614702

SCREW
(Superseded to 32144-10)

$4.99

$

In Stock, Qty 12

0

11

Toro 3290-459

RIVET-PLASTIC

$1.99

$

Usually ships in 3-6 days

0

12

Toro 92-2925

STRAP-INSULATION

$1.99

$

Usually ships in 3-6 days

0

13

Toro 60-9010

STRAP-GROUND

$11.99

$

Usually ships in 3-6 days

0

14

Toro 92-1156

ELECTRICAL LEAD ASM

$7.99

$

Usually ships in 3-6 days

0

15

Toro 53-4690

STOP-GROUND STRAP

$3.99

$

Usually ships in 3-6 days

0

16

Toro 12-5450

SCREW

$8.99

$

Usually ships in 3-6 days

0

17

Mounting Plate (Incl. Ref. #11-13)

$

$

Not available

18

Toro 614654

PLATE-MUFFLER V

$103.99

$

Usually ships in 3-6 days

0

19

Toro 607601

SCREW V

$3.99

$

In Stock, Qty 5

0

20

Toro 93-4343

BAFFLE-MUFFLER

$13.99

$

In Stock, only 4 left!

0

21

Toro 609471

SCREW

$4.99

$

In Stock, Qty 20+

0

22

Toro 614674

Cover-Muffler
(Superseded to 614674-03)

$30.99

$

Usually ships in 3-6 days

0
