20711 - Toro 53cm Walk-Behind Mower (SN: 200000001 - 200999999) (2000) ENGINE AND BLADE ASSEMBLY Parts Diagram

53cm Walk-Behind Mower

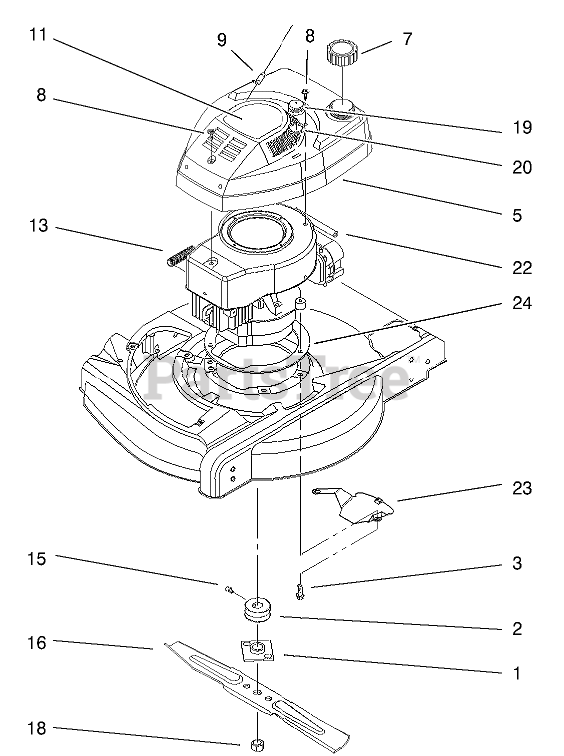

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 677525

PLATE AND COLLAR ASM

$49.99

$

In Stock, Qty 7

0

2

Toro 92-6542

PULLEY

$103.99

$

In Stock, only 1 left!

0

3

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

5

Toro 92-6380

TANK & SHROUD ASM

$142.99

$

In Stock, only 3 left!

0

7

Toro 98-8344

FUEL AND OIL CAP ASM

$27.99

$

Usually ships in 3-6 days

0

8

Toro 93-4302

SCREW

$8.49

$

In Stock, Qty 7

0

9

Toro 92-1701

STOP-ROPE
(Superseded to 2210-316)

$8.49

$

Usually ships in 3-6 days

0

11

Toro 99-8126

DECAL-RECOIL

$

$

Not available

13

Toro 93-4306

SPRING-COMPRESSION

$6.99

$

In Stock, only 2 left!

0

15

Toro 104-0214

SCREW-SET
(Superseded to 105-8875)

$12.99

$

Usually ships in 3-6 days

0

16

Toro 612543

Blade
(Superseded to 612543-03)

$31.99

$

In Stock, only 2 left!

0

18

Toro 603164

NUT-BLADE
(Superseded to 121-3611)

$6.49

$

In Stock, only 2 left!

0

19

Toro 66-7460

BULB-PRIMER

$7.49

$

In Stock, Qty 20+

0

20

Toro 44-2750

BODY-PRIMER

$10.99

$

In Stock, Qty 20+

0

22

Toro 612782

LINE-FUEL

$8.49

$

In Stock, only 4 left!

0

23

Toro 93-4196-03

SHIELD-GRASS

$16.99

$

In Stock, only 2 left!

0

24

Toro 93-7152-01

Plate-Engine

$

$

Currently unavailable
