20711 - Toro 53cm Walk-Behind Mower (SN: 200000001 - 200999999) (2000) IGNITION, BRAKE AND MUFFLER ASSEMBLY Parts Diagram

53cm Walk-Behind Mower

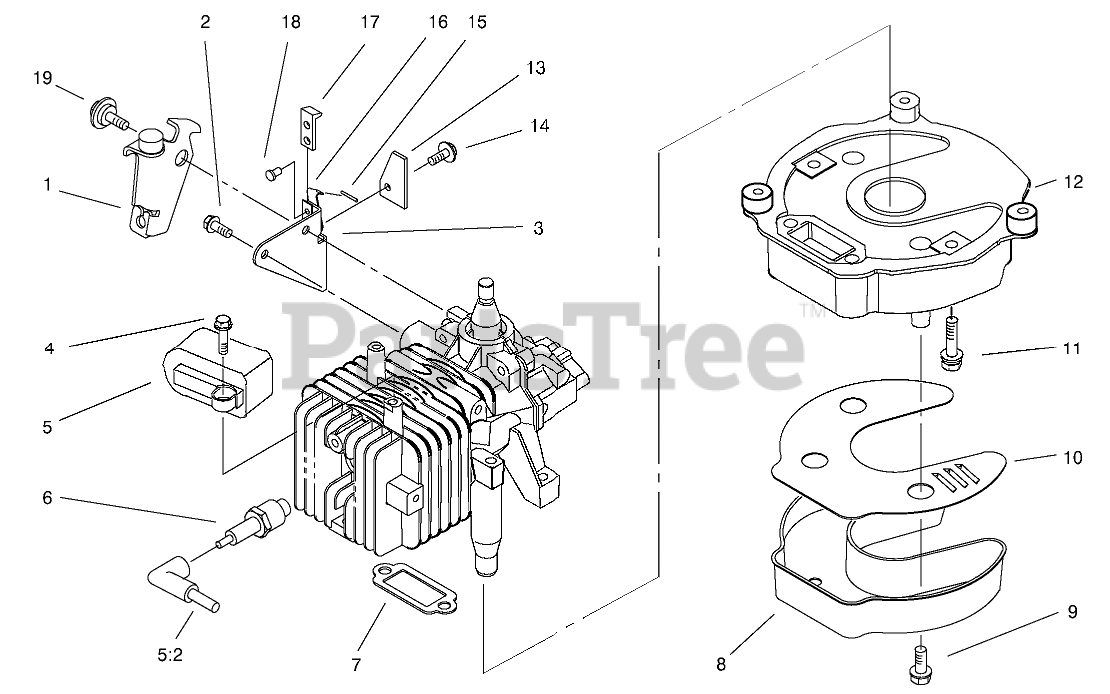

IGNITION, BRAKE AND MUFFLER ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 93-4312

PLATE-BRAKE
Usually ships in 1 day

$

$52.50

0

2

Toro Part# 614702

SCREW
(Superseded to 32144-10)
Usually ships in 1 day

$

$4.13

0

3

Toro Part# 84-7820

PLATE-BRAKE
Usually ships in 5 to 8 days

$

$10.39

0

Usually ships in 1 day

$

$1.57

0

5

Toro Part# 99-2911

MODULE-IGNITION
Usually ships in 1 day

$

$72.66

0

5:2

Toro Part# 99-6719

LEAD-TENSION, HIGH
Usually ships in 5 to 8 days

$

$45.37

0

5:1

Toro Part# 99-6721

Clip-High Tension Lead
(Superseded to 99-6719)

Note: Not illustrated

Usually ships in 5 to 8 days

$

$45.37

0

6

Toro Part# 614009

SPARK PLUG
Usually ships in 1 day

$

$5.28

0

7

Toro Part# 93-1233

GASKET-EXH. VF
Usually ships in 1 day

$

$1.36

0

8

Toro Part# 614674-03

COVER-MUFFLER V BLACK
Usually ships in 1 day

$

$23.79

0

Usually ships in 1 day

$

$3.78

0

10

Toro Part# 93-4343

BAFFLE-MUFFLER
Usually ships in 1 day

$

$7.03

0

11
Usually ships in 1 day

$

$2.91

0

12

Toro Part# 614654

PLATE-MUFFLER V
Usually ships in 5 to 8 days

$

$84.74

0

13

Toro Part# 53-4690

STOP-GROUND STRAP
Usually ships in 5 to 8 days

$

$3.11

0

Usually ships in 1 day

$

$7.03

0

15

Toro Part# 92-1156

ELECTRICAL LEAD ASM
Usually ships in 5 to 8 days

$

$6.51

0

16

Toro Part# 60-9010

STRAP-GROUND
Usually ships in 5 to 8 days

$

$9.76

0

17

Toro Part# 92-2925

STRAP-INSULATION
Usually ships in 5 to 8 days

$

$1.61

0

18

Toro Part# 3290-459

RIVET-PLASTIC
Usually ships in 5 to 8 days

$

$1.61

0

19

Toro Part# 92-9698

SCREW-SHOULDER
Usually ships in 1 day

$

$4.45

0
