20711 - Toro 53cm Walk-Behind Mower (SN: 200000001 - 200999999) (2000) Short Block Assembly No. 93-4349 Parts Diagram

53cm Walk-Behind Mower

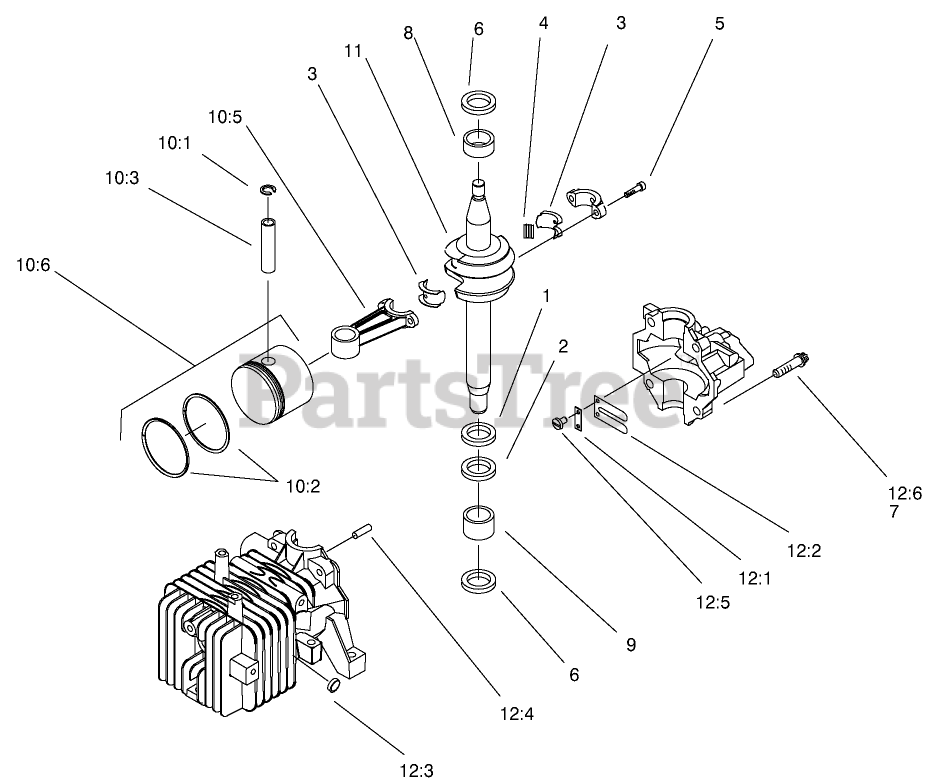

Short Block Assembly No. 93-4349 Parts Diagram

  • Title

1

Toro 252-76

BEARING-THRUST

$23.99

$

In Stock, only 1 left!

0

2

Toro 252-80

WASHER-THRUST

$10.99

$

Usually ships in 3-6 days

0

3

Toro 677982

LINER ASM

$50.99

$

In Stock, only 4 left!

0

4

Toro 683911

BEARING-NEEDLE

$

$

Not available

5

Toro 611393

SCREW-HSH

$23.99

$

Usually ships in 3-6 days

0

6

Toro 611396

SEAL-OIL

$6.99

$

In Stock, Qty 8

0

7

Toro 614636

SCREW - EXT TORX HD

$

$

Not available

8

Toro 681830

BEARING V

$45.99

$

In Stock, only 2 left!

0

9

Toro 681831

BEARING V

$27.99

$

In Stock, only 2 left!

0

10

Piston Connecting Rod

Note: Not serviced

$

$

Not available

10:1

Toro 303712

RING-RETAINING

$3.49

$

In Stock, Qty 9

0

10:2

Toro 681737

DISCONTINUED

$

$

Not available

10:3

Toro 606608

See Supercession: 94-5774
(Superseded to 94-5774)

$12.99

$

Usually ships in 3-6 days

0

10:5

Toro 92-4921

CONNECTING ROD ASM

$263.99

$

In Stock, only 2 left!

0

10:6

Toro 92-4923

DISCONTINUED

$

$

Not available

11

Toro 94-5713

CRANKSHAFT V

$

$

Not available

12

Cylinder Crankcase ASM

Note: Not serviced

$

$

Not available

12:1

Toro 602587

PLATE-BACKUP, REED

$3.99

$

Usually ships in 3-6 days

0

12:2

Toro 602588

DISCONTINUED

$

$

Not available

12:3

Toro 609123

PLUG-CORE VF

$3.99

$

Usually ships in 3-6 days

0

12:4

Toro 609629

DOWEL XEV

$

$

Not available

12:5

Toro 612872

SCREW-HH

$2.49

$

In Stock, Qty 5

0

12:6

Toro 614636

SCREW - EXT TORX HD

$

$

Not available
