20712 - Toro 53cm Walk-Behind Mower (SN: 079000001 - 079999999) (1997) ENGINE BRIGGS & STRATTON MODEL 12U802-0639-01 Parts Diagram

53cm Walk-Behind Mower

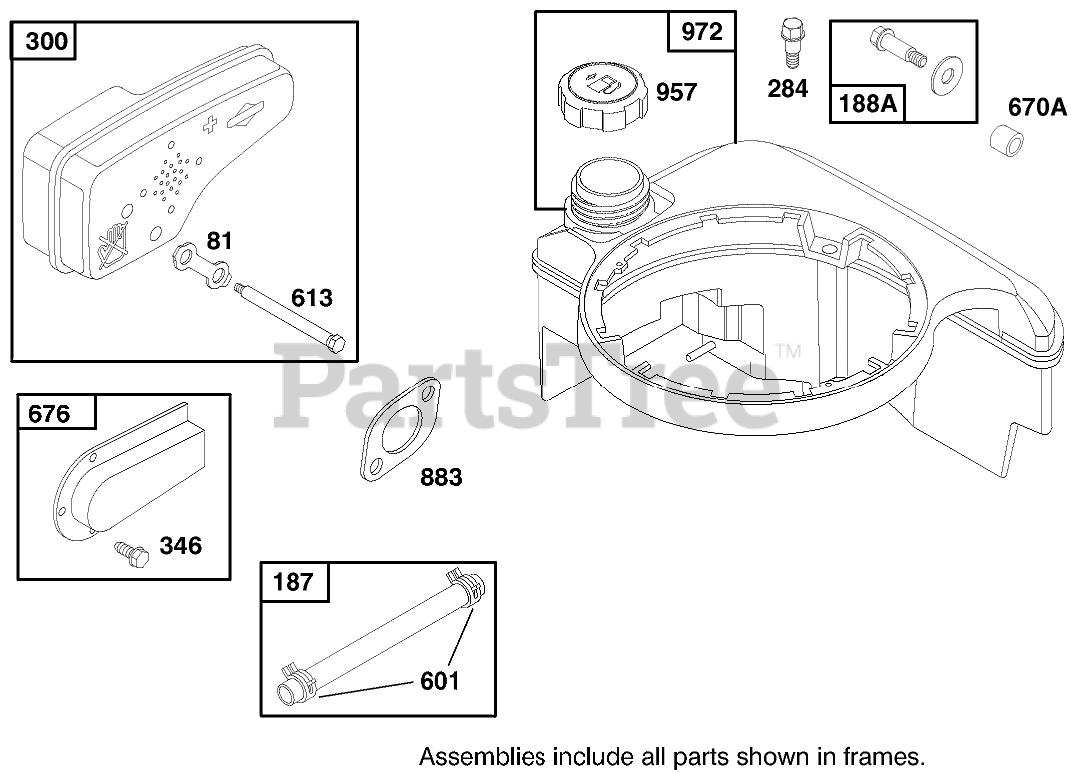

ENGINE BRIGGS & STRATTON MODEL 12U802-0639-01 Parts Diagram

  • Title

81

Briggs & Stratton 223664

Lock-Muffler Screw
(Superseded to 691740)

$5.99

$

In Stock, Qty 17

0

187

Briggs & Stratton 492790

Hose-Fuel
(Superseded to 791766)

$8.49

$

In Stock, Qty 19

0

188A

Briggs & Stratton 398540

Screw-Shoulder
(Superseded to 692311)

$7.49

$

In Stock, only 3 left!

0

284

Briggs & Stratton 94511

Screw-Hex.
(Superseded to 690940)

$4.49

$

In Stock, Qty 19

0

300

Briggs & Stratton 496106

Muffler
(Superseded to 692038)

$28.99

$

In Stock, Qty 9

0

346

Briggs & Stratton 94896

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 9

0

601

Briggs & Stratton 93053

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 12

0

613

Briggs & Stratton 94231

Screw-Shoulder
(Superseded to 691340)

$5.49

$

In Stock, Qty 12

0

670A

Briggs & Stratton 280512

Spacer-FueITank
(Superseded to 692294)

$5.49

$

In Stock, Qty 10

0

676

Briggs & Stratton 493871

Deflector-Muffler

$15.99

$

In Stock, only 2 left!

0

883

Briggs & Stratton 272253

Gasket-Exhaust
(Superseded to 691881)

Note: Included in Gasket Set-Part No. 497316.

$9.49

$

In Stock, Qty 6

0

883

Briggs & Stratton 272253

Gasket-Exhaust
(Superseded to 691881)

Note: Included in Valve Overhaul Gasket Set-Part No. 498528.

$9.49

$

In Stock, Qty 6

0

957

Briggs & Stratton 397974

Cap-Fuel
(Superseded to 796577)

$12.99

$

In Stock, Qty 9

0

972

Briggs & Stratton 495224

Tank-Fuel
(Superseded to 699374)

$71.99

$

In Stock, Qty 20+

0
