20712 - Toro 53cm Walk-Behind Mower (SN: 079000001 - 079999999) (1997) Handle Assembly Parts Diagram

53cm Walk-Behind Mower

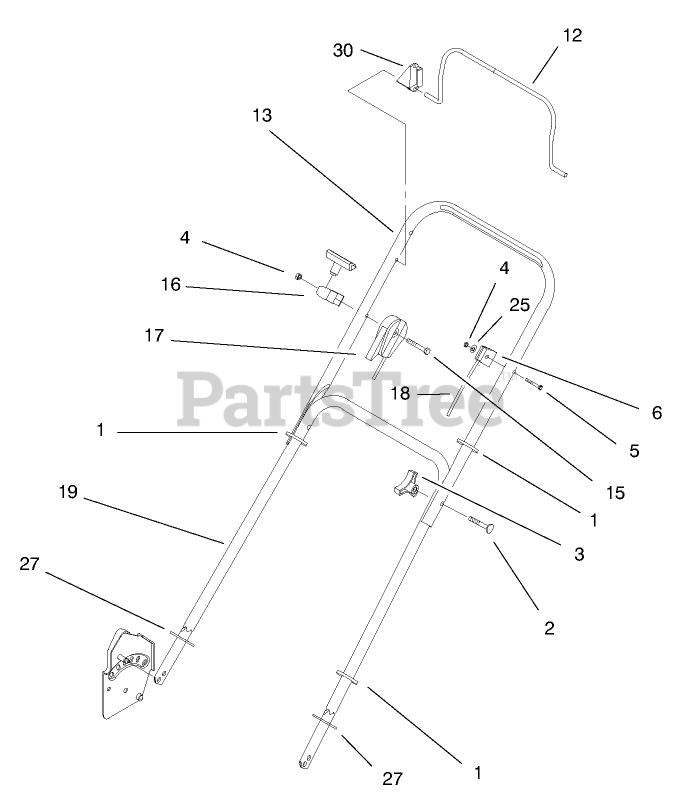

Handle Assembly Parts Diagram

  • Title

1

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 9

0

2

Toro 614697

SCREW

$2.99

$

In Stock, Qty 18

0

3

Toro 614243

See Supercession: 98-7134
(Superseded to 98-7134)

$3.49

$

In Stock, Qty 18

0

4

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 13

0

5

Toro 92-2269

SCREW-HANDLE
(Superseded to 137-3108)

$4.99

$

Usually ships in 3-6 days

0

6

Toro 94-6096

ANCHOR - CABLE

$8.99

$

Usually ships in 3-6 days

0

12

Toro 94-6099

See Supercession: 94-6099-03
(Superseded to 94-6099-03)

$

$

Not available

13

Toro 95-1713

See Supercession: 95-1713-05
(Superseded to 95-1713-05)

$

$

Not available

15

Toro 321-50

SCREW-HH

$1.99

$

In Stock, only 3 left!

0

16

Toro 93-7383

See Supercession: 86-9671
(Superseded to 86-9671)

$4.99

$

In Stock, Qty 10

0

17

Toro 95-7064

CABLE - THROTTLE

$

$

Not available

18

Toro 95-1718

BRAKE CABLE ASM

$91.99

$

Usually ships in 3-6 days

0

19

Toro 614643

See Supercession: 614643-05
(Superseded to 614643-05)

$

$

Not available

25

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 11

0

27

Toro 93-3653

See Supercession: 104-1013
(Superseded to 104-1013)

$

$

Not available

30

Toro 94-6097

STOP

$10.99

$

In Stock, only 1 left!

0
