20713 - Toro 53cm Walk-Behind Mower (SN: 089000001 - 089999999) (1998) ENGINE BRIGGS & STRATTON MODEL 12U802-1739-E1 Parts Diagram

53cm Walk-Behind Mower

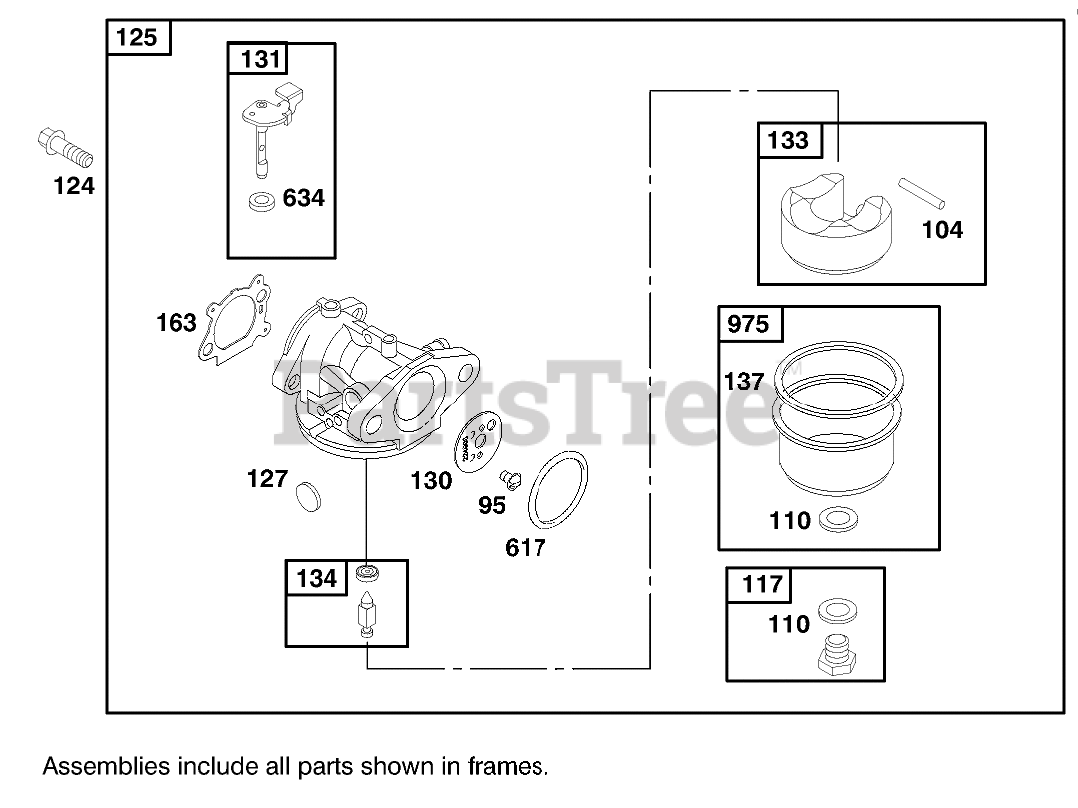

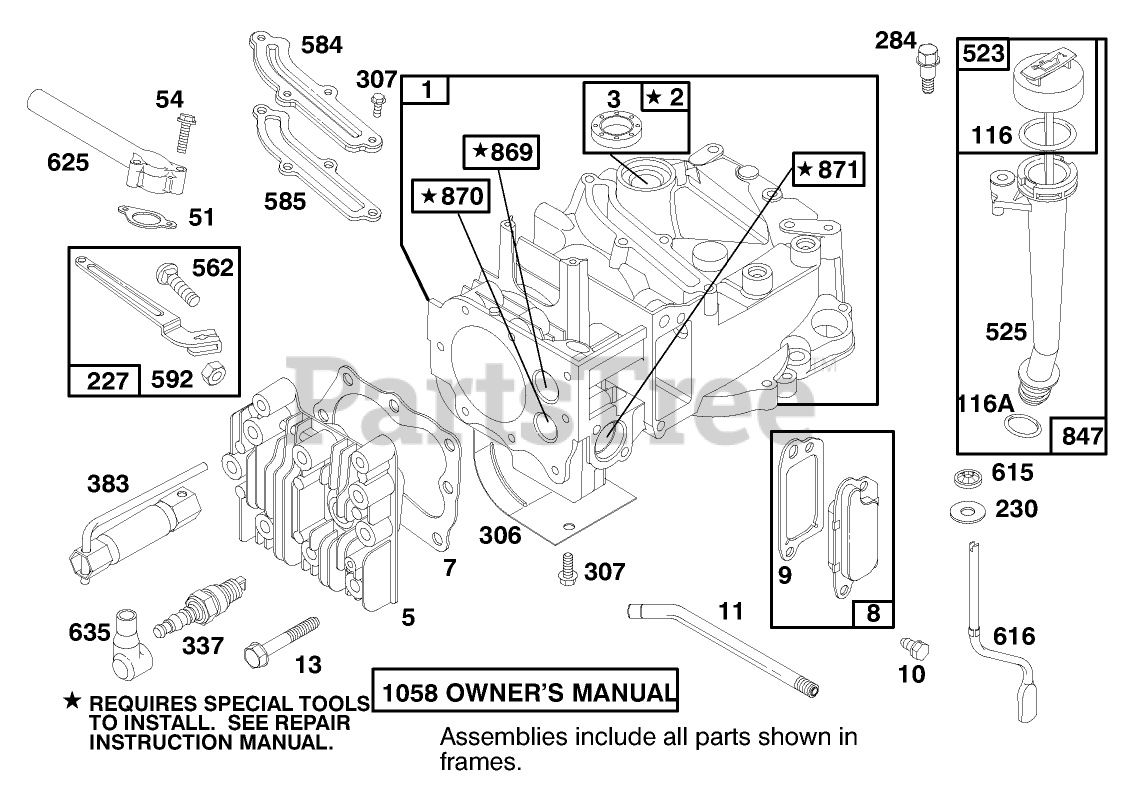

ENGINE BRIGGS & STRATTON MODEL 12U802-1739-E1 Parts Diagram

  • Title
95

Briggs & Stratton Part# T94098

Screw-Throttle Valve Mtg.
(Superseded to 691636)
Usually ships in 1 day

$

$3.12

0

104

Briggs & Stratton Part# T231371

Pin-Float Hinge
(Superseded to 797622)

Note: Included in Carburetor Kit-Part No. 498260.

Usually ships in 1 day

$

$3.12

0

110

Part#

Gasket-Sealing (Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 498260.

Usually ships same day

Not available

$

$

110

Part#

Gasket-Sealing (Sold in Kit Only)

Note: Included in Carburetor Gasket Set-Part No. 498261.

Usually ships same day

Not available

$

$

117

Briggs & Stratton Part# 498975

Jet?Main
(Superseded to 798660)
Usually ships in 1 day

$

$15.08

0

Usually ships same day

Not available

$

$

125

Briggs & Stratton Part# 498966

Carburetor
(Superseded to 799868)
Usually ships in 1 day

$

$61.48

0

127

Part#

Plug-Welch (Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 498260.

Usually ships same day

Not available

$

$

130

Briggs & Stratton Part# 224908

Throttle Valve
(Superseded to 691203)
Usually ships in 1 day

$

$7.26

0

131

Briggs & Stratton Part# T493267

Shaft-Throttle
(Superseded to 493267)
Usually ships in 1 day

$

$13.07

0

133
Usually ships in 1 day

$

$9.27

0

134

Briggs & Stratton Part# 398188

Needle and Seat Kit

Note: Included in Carburetor Kit-Part No. 498260.

Usually ships in 1 day

$

$6.47

0

137

Part#

Gasket-Bowl (Sold in Kit Only)

Note: Included in Carburetor Gasket Set-Part No. 498261.

Usually ships same day

Not available

$

$

163

Briggs & Stratton Part# 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Gasket Set-Part No. 497316.

Usually ships in 1 day

$

$3.46

0

163

Briggs & Stratton Part# 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Carburetor Kit-Part No. 498260.

Usually ships in 1 day

$

$3.46

0

163

Briggs & Stratton Part# 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Carburetor Gasket Set-Part No. 498261.

Usually ships in 1 day

$

$3.46

0

524

Briggs & Stratton Part# 280393

O-Ring Seal
(Superseded to 691031)

Note: Included in Gasket Set-Part No. 497316.

Usually ships in 1 day

$

$4.35

0

617

Briggs & Stratton Part# 270344

Seal-O Ring
(Superseded to 270344S)

Note: Included in Carburetor Kit-Part No. 498260.

Usually ships in 1 day

$

$2.90

0

617

Briggs & Stratton Part# 270344

Seal-O Ring
(Superseded to 270344S)

Note: Included in Carburetor Gasket Set-Part No. 498261.

Usually ships in 1 day

$

$2.90

0

634

Part#

Washer-Shaft (Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 498260.

Usually ships same day

Not available

$

$

634

Part#

Washer-Shaft (Sold in Kit Only)

Note: Included in Carburetor Gasket Set-Part No. 498261.

Usually ships same day

Not available

$

$

842

Briggs & Stratton Part# 280966

O-Ring Seal
(Superseded to 692296)

Note: Included in Gasket Set-Part No. 497316.

Usually ships in 1 day

$

$3.79

0

975

Briggs & Stratton Part# 493640

Bowl-Float
(Superseded to 796611)
Usually ships in 1 day

$

$6.59

0

1058

Briggs & Stratton Part# 273693

Owner-s Manual
(Superseded to 380567TRI)
Usually ships same day

Not available

$

$
