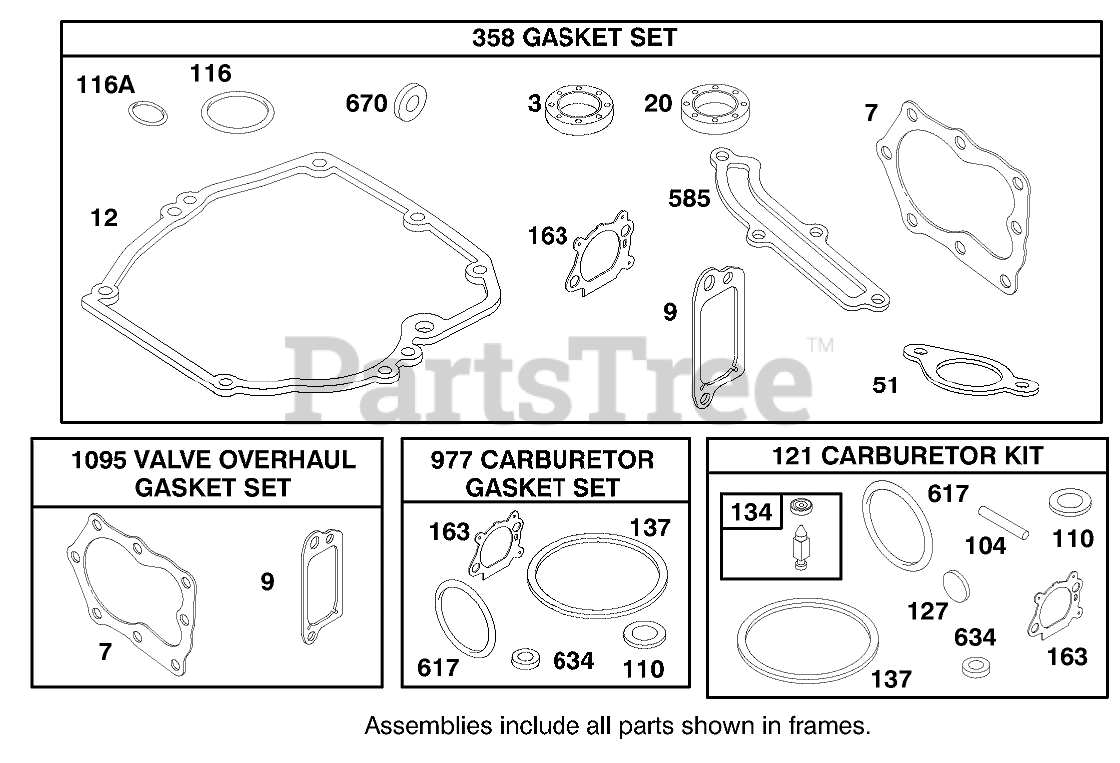

20713 - Toro 53cm Walk-Behind Mower (SN: 089000001 - 089999999) (1998) ENGINE BRIGGS & STRATTON MODEL 12U802-1739-E1 Parts Diagram

53cm Walk-Behind Mower

ENGINE BRIGGS & STRATTON MODEL 12U802-1739-E1 Parts Diagram

  • Title
3

Briggs & Stratton Part# 299819

Seal-Oil
(Superseded to 299819S)

Note: Included in Carburetor Gasket Set-Part No. 498261.

Usually ships in 1 day

$

$4.57

0

7

Briggs & Stratton Part# 272916

Gasket-Cylinder Hd
(Superseded to 692249)

Note: Included in Carburetor Gasket Set-Part No. 498261.

Usually ships in 1 day

$

$9.27

0

7

Briggs & Stratton Part# 272916

Gasket-Cylinder Hd
(Superseded to 692249)

Note: Included in Valve Overhaul Gasket Set-Part No. 498528.

Usually ships in 1 day

$

$9.27

0

9

Briggs & Stratton Part# 272481

Gasket?Breather
(Superseded to 699833)

Note: Included in Valve Overhaul Gasket Set-Part No. 498528.

Usually ships in 1 day

$

$4.35

0

9

Briggs & Stratton Part# 272481

Gasket?Breather
(Superseded to 699833)

Note: Included in Carburetor Gasket Set-Part No. 498261.

Usually ships in 1 day

$

$4.35

0

12

Briggs & Stratton Part# 272198

Gasket
(Superseded to 692232)

Note: Included in Carburetor Gasket Set-Part No. 498261.

Usually ships in 6 to 12 days

$

$4.91

0

20

Briggs & Stratton Part# 399781

Seal-Oil
(Superseded to 399781S)

Note: Included in Carburetor Gasket Set-Part No. 498261.

Usually ships in 1 day

$

$6.59

0

51

Briggs & Stratton Part# 272199

Gasket-Intake
(Superseded to 272199S)

Note: Included in Carburetor Gasket Set-Part No. 498261.

Usually ships in 1 day

$

$4.01

0

104

Briggs & Stratton Part# 231371

Spring
(Superseded to 797622)

Note: Included in Carburetor Kit-Part No. 498260.

Usually ships in 1 day

$

$3.12

0

110

Part#

Gasket-Sealing (Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 498260.

Usually ships same day

Not available

$

$

110

Part#

Gasket-Sealing (Sold in Kit Only)

Note: Included in Gasket Set-Part No. 497316.

Usually ships same day

Not available

$

$

116

Briggs & Stratton Part# 280393

O-Ring Seal
(Superseded to 691031)

Note: Included in Carburetor Gasket Set-Part No. 498261.

Usually ships in 1 day

$

$4.35

0

116A

Briggs & Stratton Part# 280966

O-Ring Seal
(Superseded to 692296)

Note: Included in Carburetor Gasket Set-Part No. 498261.

Usually ships in 1 day

$

$3.79

0

121

Briggs & Stratton Part# 498260

Carburetor Overhaul Kit
Usually ships in 1 day

$

$18.77

0

127

Part#

Plug-Welch (Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 498260.

Usually ships same day

Not available

$

$

134

Briggs & Stratton Part# 398188

Needle and Seat Kit

Note: Included in Carburetor Kit-Part No. 498260.

Usually ships in 1 day

$

$6.47

0

137

Part#

Gasket-Bowl (Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 498260.

Usually ships same day

Not available

$

$

137

Part#

Gasket-Bowl (Sold in Kit Only)

Note: Included in Gasket Set-Part No. 497316.

Usually ships same day

Not available

$

$

163

Briggs & Stratton Part# 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Carburetor Kit-Part No. 498260.

Usually ships in 1 day

$

$3.46

0

163

Briggs & Stratton Part# 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Gasket Set-Part No. 497316.

Usually ships in 1 day

$

$3.46

0

163

Briggs & Stratton Part# 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Carburetor Gasket Set-Part No. 498261.

Usually ships in 1 day

$

$3.46

0

358

Briggs & Stratton Part# 497316

Engine Gasket Set
(Superseded to 590508)
Usually ships in 1 day

$

$34.09

0

524

Briggs & Stratton Part# 280393

O-Ring Seal
(Superseded to 691031)

Note: Included in Gasket Set-Part No. 497316.

Usually ships in 1 day

$

$4.35

0

585

Briggs & Stratton Part# 272238

Gasket-Breather
(Superseded to 691879)

Note: Included in Carburetor Gasket Set-Part No. 498261.

Usually ships in 1 day

$

$5.24

0

617

Briggs & Stratton Part# 270344

Seal-O Ring
(Superseded to 270344S)

Note: Included in Carburetor Kit-Part No. 498260.

Usually ships in 1 day

$

$2.90

0

617

Briggs & Stratton Part# 270344

Seal-O Ring
(Superseded to 270344S)

Note: Included in Gasket Set-Part No. 497316.

Usually ships in 1 day

$

$2.90

0

634

Part#

Washer-Shaft (Sold in Kit Only)

Note: Included in Gasket Set-Part No. 497316.

Usually ships same day

Not available

$

$

634

Part#

Washer-Shaft (Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 498260.

Usually ships same day

Not available

$

$

670

Briggs & Stratton Part# 493823

Spacer-Bracket (Includes 2)

Note: Included in Carburetor Gasket Set-Part No. 498261.

Usually ships in 1 day

$

$4.68

0

842

Briggs & Stratton Part# 280966

O-Ring Seal
(Superseded to 692296)

Note: Included in Gasket Set-Part No. 497316.

Usually ships in 1 day

$

$3.79

0

977

Briggs & Stratton Part# 498261

Carburetor Gasket Set
(Superseded to 498260)
Usually ships in 1 day

$

$18.77

0

1058

Briggs & Stratton Part# 273693

Owner-s Manual
(Superseded to 380567TRI)
Usually ships same day

Not available

$

$

1095
Usually ships in 1 day

$

$20.90

0
