20713 - Toro 53cm Walk-Behind Mower (SN: 099000001 - 099999999) (1999) Engine Assembly Parts Diagram

53cm Walk-Behind Mower

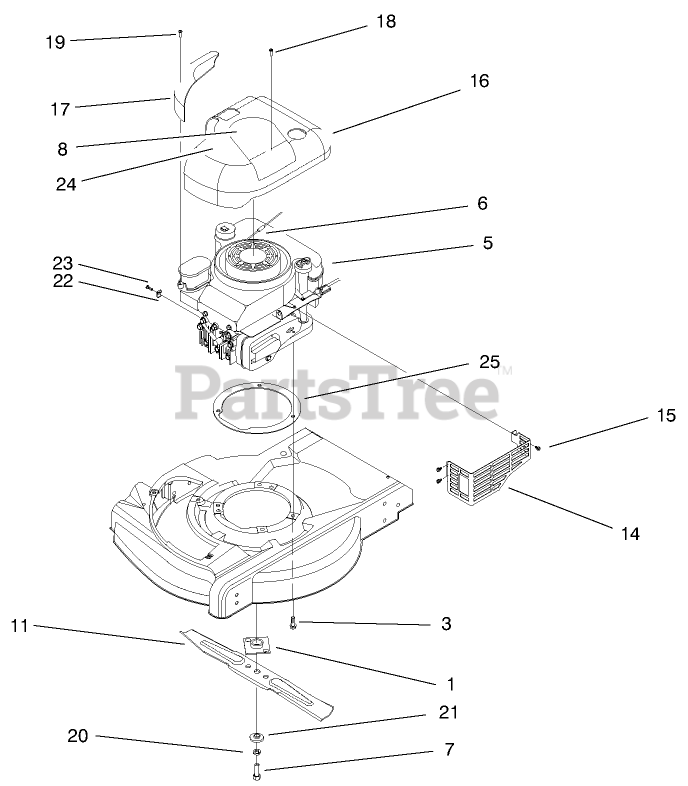

Engine Assembly Parts Diagram

  • Title

1

Toro 677525

PLATE AND COLLAR ASM

$55.99

$

In Stock, Qty 6

0

3

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

5

Engine ASM

$

$

Not available

6

Toro 2210-316

STOP-ROPE

$8.49

$

Usually ships in 3-6 days

0

7

Toro 95-1748

See Supercession: 105-8629
(Superseded to 105-8629)

$21.99

$

In Stock, only 4 left!

0

8

Toro 99-8125

DECAL-RECOIL,4 CYCLE

$

$

Not available

11

Toro 612543

See Supercession: 612543-03
(Superseded to 612543-03)

$36.99

$

In Stock, Qty 20+

0

14

Toro 82-8550-03

See Supercession: 104-7577-03
(Superseded to 104-7577-03)

$28.99

$

In Stock, only 2 left!

0

15

Toro 32144-73

See Supercession: 104-2065
(Superseded to 104-2065)

$0.99

$

In Stock, Qty 20+

0

16

Toro 95-1704

See Supercession: 95-1704-03
(Superseded to 95-1704-03)

$166.99

$

Usually ships in 3-6 days

0

17

Toro 95-1709

DISCONTINUED

$

$

Not available

18

Toro 95-1706

See Supercession: 92-7887
(Superseded to 92-7887)

$

$

Not available

19

Toro 95-1707

SCREW - AIR CLEANER F/W

$

$

Not available

20

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

21

Toro 92-8626

SPACER-BLADE

$16.99

$

Usually ships in 3-6 days

0

22

Toro 2210-249

CLAMP-CASING

$

$

Not available

23

Toro 93-8470

SCREW-CLAMP

$

$

Not available

24

Toro 95-7061

DISCONTINUED

$

$

Not available

25

Toro 93-7152-01

Plate-Engine

$

$

Currently unavailable
