20713 - Toro 53cm Walk-Behind Mower (SN: 099000001 - 099999999) (1999) Engine Briggs Stratton Model 12u802-1740-E1 3 Parts Diagram

53cm Walk-Behind Mower

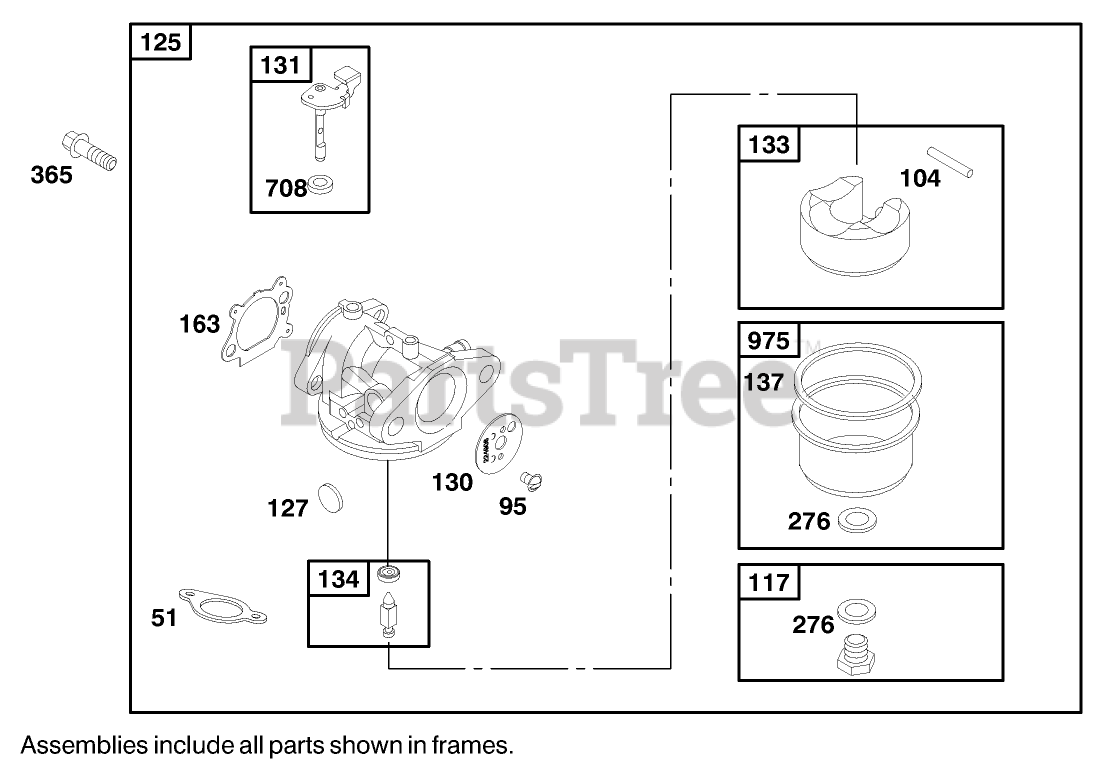

Engine Briggs Stratton Model 12u802-1740-E1 3 Parts Diagram

  • Title

51

Toro 272199

Gasket-Intake

Note: Included in Gasket Set-See Ref. 358.

$

$

Currently unavailable

95

Toro 94098

Valve-Choke

$

$

Currently unavailable

104

Toro 231371

Spring
(Superseded to 701979)

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Not available

117

Toro 498975

Jet?Main

$

$

Currently unavailable

125

Toro 498966

Carburetor

$

$

Currently unavailable

127

Welch Plug (Sold in Kit Only)

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Not available

130

Toro 224908

Throttle Valve

$

$

Currently unavailable

131

Toro 493267

Shaft and Lever

$

$

Currently unavailable

133

Toro 398187

Float-Carburetor

$

$

Currently unavailable

134

Toro 398188

Valve-Inlet (Includes Seat)

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Currently unavailable

137

Float Bowl Gasket (Sold in Kit Only)

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Not available

137

Float Bowl Gasket (Sold in Kit Only)

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Not available

163

Toro 272653

Gasket-Cleaner, Air

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Currently unavailable

163

Toro 272653

Gasket-Cleaner, Air

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Currently unavailable

163

Toro 272653

Gasket-Cleaner, Air

Note: Included in Gasket Set-See Ref. 358.

$

$

Currently unavailable

276

Sealing Washer (Sold in Kit Only)

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Not available

276

Sealing Washer (Sold in Kit Only)

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Not available

365

Toro 94525

Screw-Hex

$

$

Currently unavailable

708

Toro 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Currently unavailable

708

Toro 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Currently unavailable

975

Toro 493640

Bowl-Float

$

$

Currently unavailable
