20713 - Toro 53cm Walk-Behind Mower (SN: 099000001 - 099999999) (1999) ENGINE BRIGGS & STRATTON MODEL 12U802-1740-E1 Parts Diagram

53cm Walk-Behind Mower

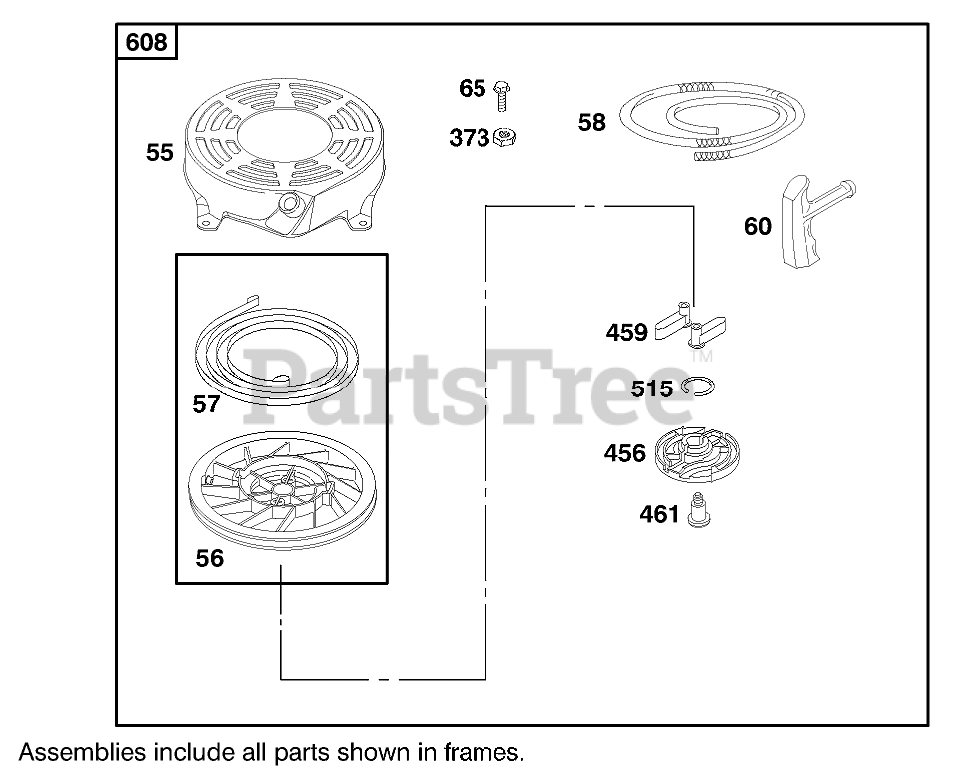

ENGINE BRIGGS & STRATTON MODEL 12U802-1740-E1 Parts Diagram

  • Title
55

Briggs & Stratton 691421

Housing-Starter, Rewind

$64.99

$

In Stock, only 1 left!

0

56

Briggs & Stratton 498144

Pulley and Spring ASM

$19.99

$

In Stock, only 2 left!

0

57

Briggs & Stratton 498144

Pulley and Spring ASM

$19.99

$

In Stock, only 2 left!

0

58

Briggs & Stratton 280399

Rope?Starter (Cut to Required Length)
(Superseded to 280399S)

$5.99

$

In Stock, Qty 19

0

60

Briggs & Stratton 281434

Grip-Rope, Starter
(Superseded to 281434S)

$3.99

$

In Stock, Qty 10

0

65

Briggs & Stratton 94904

Screw-Hex
(Superseded to 690837)

$3.49

$

In Stock, Qty 18

0

373

Briggs & Stratton 94908

Nut-Hex.
(Superseded to 690800)

$3.99

$

In Stock, only 3 left!

0

456

Briggs & Stratton 281503

Retainer-Spring
(Superseded to 692299)

$4.99

$

In Stock, Qty 20+

0

459

Briggs & Stratton 281505

Ratchet-Pawl
(Superseded to 281505S)

$3.49

$

In Stock, Qty 20+

0

461

Briggs & Stratton 94943

Pin-Starter
(Superseded to 691696)

$11.99

$

In Stock, only 4 left!

0

515

Briggs & Stratton 263073

Spring-Torsion
(Superseded to 691855)

$4.49

$

In Stock, Qty 7

0

608

Briggs & Stratton 497680

Starter-Rewind

$49.99

$

In Stock, only 3 left!

0
