20713 - Toro 53cm Walk-Behind Mower (SN: 099000001 - 099999999) (1999) HOUSING ASSEMBLY Parts Diagram

53cm Walk-Behind Mower

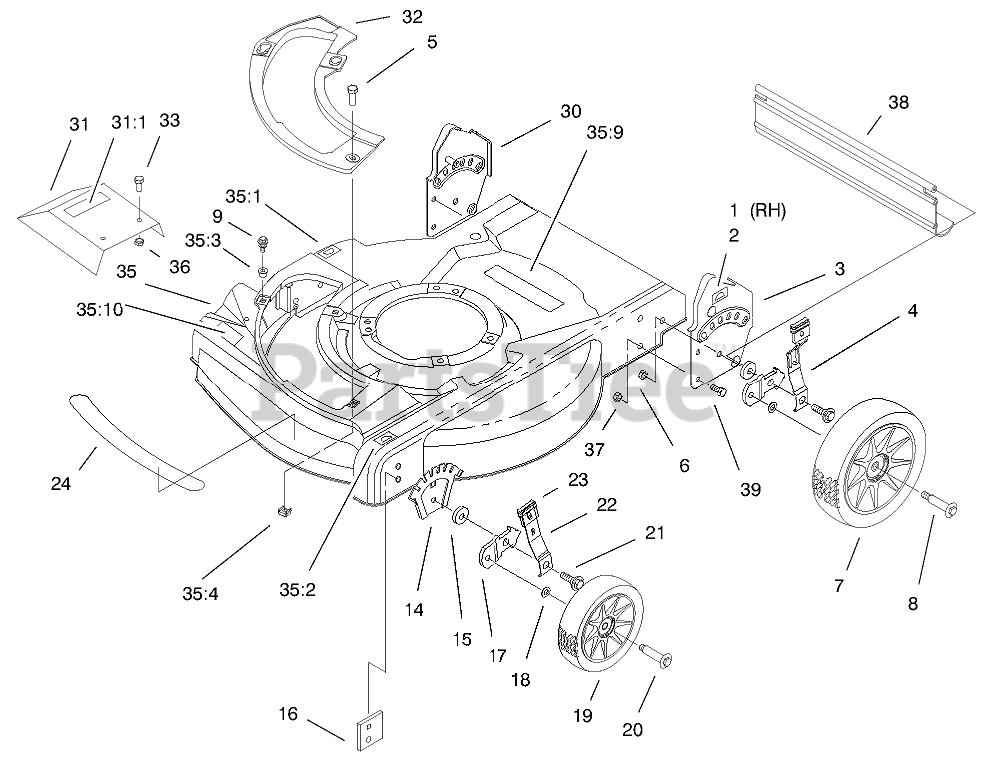

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 93-6671

DECAL-HOC, RH

$

$

Not available

2

Toro 93-6670

DECAL-HOC, LH

$

$

Not available

3

Toro 92-7743-03

Handle Bracket ASM

$

$

Currently unavailable

4

Toro 92-1005

REAR SPRING ARM ASM

$21.99

$

In Stock, only 2 left!

0

5

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, Qty 7

0

6

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Toro 684777

WHEEL ASM

$52.99

$

In Stock, Qty 8

0

8

Toro 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 20+

0

9

Toro 614677

SCREW-SEMS

$3.99

$

In Stock, Qty 20+

0

14

Toro 92-4881-03

PLATE-HEIGHT, ADJUSTMENT

$25.99

$

Usually ships in 3-6 days

0

15

Toro 92-4890

WASHER

$8.99

$

Usually ships in 3-6 days

0

16

Toro 92-7731

PLATE-BAFFLE

$8.99

$

Usually ships in 3-6 days

0

17

Toro 95-7403-03

BRACKET-HEIGHT ADJUSTMENT, WHEEL

$

$

Not available

18

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

19

Toro 684776

WHEEL AND TIRE ASM

$33.99

$

In Stock, Qty 20+

0

20

Toro 92-1099

BOLT-SHOULDER

$7.49

$

In Stock, Qty 10

0

21

Toro 614672

BOLT-SHOULDER

$2.99

$

In Stock, Qty 9

0

22

Toro 614687

ARM-FRONT SPRING

$21.99

$

In Stock, only 3 left!

0

23

Toro 92-1008

KNOB-LEVER, HEIGHT ADJUSTMENT

$12.99

$

In Stock, only 3 left!

0

24

Toro 95-7051

DECAL - DECK,SP

$

$

Not available

30

Toro 92-7742

RH HANDLE BRACKET ASM

$

$

Not available

31

Toro 94-1697

GUARD PLATE ASM

$233.99

$

Usually ships in 3-6 days

0

31:1

Toro 93-6667

DECAL - WARNING

$

$

Not available

32

Toro 95-7052

PLATE-OPENING, CHUTE

$30.99

$

In Stock, only 2 left!

0

33

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 15

0

35

Toro 95-7082

HOUSING - HP

$475.99

$

Usually ships in 3-6 days

0

35:1

Toro 93-6671

DECAL-HOC, RH

$

$

Not available

35:2

Toro 93-6670

DECAL-HOC, LH

$

$

Not available

35:3

Toro 94-1610

NUT-CLIP

$0.99

$

In Stock, Qty 20+

0

35:4

Toro 613765

NUT-CAGE

$8.49

$

In Stock, Qty 11

0

35:9

Toro 93-6657

DECAL-DANGER

$25.99

$

Usually ships in 3-6 days

0

35:10

Toro 93-6667

DECAL - WARNING

$

$

Not available

36

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

37

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

38

Toro 92-8647

SHIELD-TRAILING

$35.99

$

In Stock, Qty 9

0

39

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
