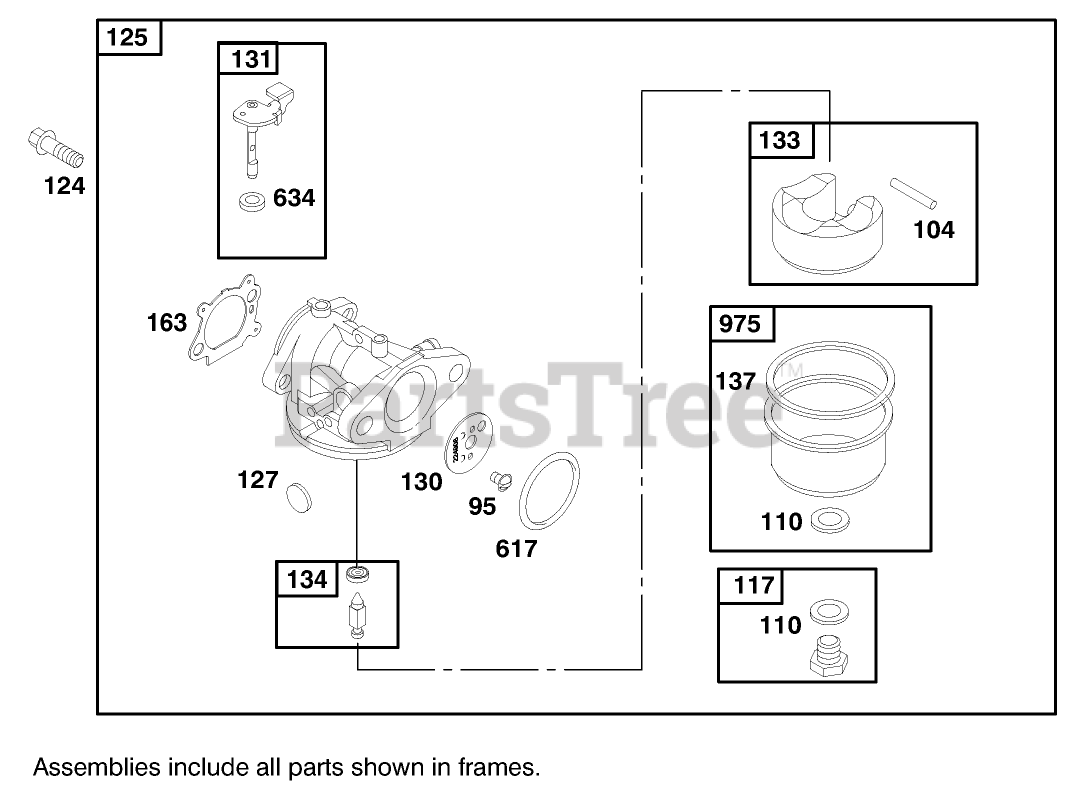

20716 - Toro Walk-Behind Mower (SN: 089000001 - 089999999) (1998) Engine Briggs Stratton Model 12u802-1739-E1 3 Parts Diagram

Walk-Behind Mower

Engine Briggs Stratton Model 12u802-1739-E1 3 Parts Diagram

  • Title

95

Toro T94098

Screw-Throttle Valve Mtg.

$

$

Currently unavailable

104

Toro T231371

Pin-Float Hinge

Note: Included in Carburetor Kit-Part No. 498260.

$

$

Currently unavailable

110

Gasket-Sealing(Sold in Kit Only)

Note: Included in Carburetor Gasket Set-Part No. 498261.

$

$

Not available

110

Gasket-Sealing(Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 498260.

$

$

Not available

117

Toro 498975

Jet?Main

$

$

Currently unavailable

124

Toro 94525

Screw-Hex

$

$

Currently unavailable

125

Toro 498966

Carburetor

$

$

Currently unavailable

127

Plug-Welch(Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 498260.

$

$

Not available

130

Toro 224908

Throttle Valve

$

$

Currently unavailable

131

Toro T493267

Shaft-Throttle

$

$

Currently unavailable

133

Toro 398187

Float-Carburetor

$

$

Currently unavailable

134

Toro 398188

Valve-Inlet (Includes Seat)

Note: Included in Carburetor Kit-Part No. 498260.

$

$

Currently unavailable

137

Gasket-Bowl(Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 498260.

$

$

Not available

137

Gasket-Bowl(Sold in Kit Only)

Note: Included in Carburetor Gasket Set-Part No. 498261.

$

$

Not available

163

Toro 272653

Gasket-Cleaner, Air

Note: Included in Carburetor Gasket Set-Part No. 498261.

$

$

Currently unavailable

163

Toro 272653

Gasket-Cleaner, Air

Note: Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

163

Toro 272653

Gasket-Cleaner, Air

Note: Included in Carburetor Kit-Part No. 498260.

$

$

Currently unavailable

617

Toro 270344

Seal-O Ring

Note: Included in Carburetor Kit-Part No. 498260.

$

$

Currently unavailable

617

Toro 270344

Seal-O Ring

Note: Included in Carburetor Gasket Set-Part No. 498261.

$

$

Currently unavailable

634

Washer-Shaft(Sold in Kit Only)

Note: Included in Carburetor Gasket Set-Part No. 498261.

$

$

Not available

634

Washer-Shaft(Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 498260.

$

$

Not available

975

Toro 493640

Bowl-Float

$

$

Currently unavailable
