20716 - Toro Walk-Behind Mower (SN: 089000001 - 089999999) (1998) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

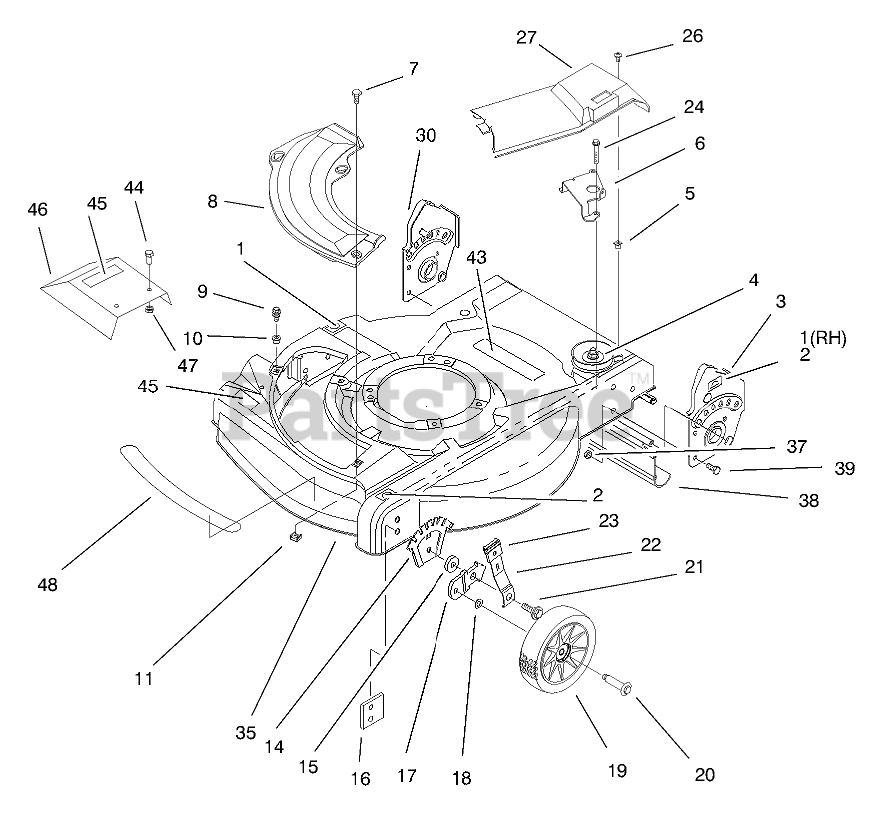

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 93-6671

DECAL-HOC, RH

$

$

Not available

2

Toro 93-6670

DECAL-HOC, LH

$

$

Not available

3

Toro 92-7724

HANDLE BRACKET ASM-LH
(Superseded to 105-8604)

$47.99

$

Usually ships in 3-6 days

0

4

Toro 92-7735

Gear Case
(Superseded to 104-7671)

$

$

Not available

5

Toro 605120

NUT-CLIP

$3.99

$

In Stock, Qty 16

0

6

Toro 92-7728

Guide-Transmission
(Superseded to 92-7728-03)

$7.99

$

In Stock, only 1 left!

0

7

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, Qty 7

0

8

Toro 95-7052

PLATE-OPENING, CHUTE

$30.99

$

In Stock, only 2 left!

0

9

Toro 614677

SCREW-SEMS

$3.99

$

In Stock, Qty 20+

0

10

Toro 94-1610

NUT-CLIP

$0.99

$

In Stock, Qty 20+

0

11

Toro 613765

NUT-CAGE

$8.49

$

In Stock, Qty 11

0

14

Toro 92-4881

Plate H.O.C.
(Superseded to 92-4881-03)

$25.99

$

Usually ships in 3-6 days

0

15

Toro 92-4890

WASHER

$8.99

$

Usually ships in 3-6 days

0

16

Toro 92-7731

PLATE-BAFFLE

$8.99

$

Usually ships in 3-6 days

0

17

Toro 95-7403

Bracket-Wheel Height Adj
(Superseded to 95-7403-03)

$

$

Not available

18

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

19

Toro 684776

WHEEL AND TIRE ASM

$33.99

$

In Stock, Qty 20+

0

20

Toro 92-1099

BOLT-SHOULDER

$7.49

$

In Stock, Qty 10

0

21

Toro 614672

BOLT-SHOULDER

$2.99

$

In Stock, Qty 9

0

22

Toro 614687

ARM-FRONT SPRING

$21.99

$

In Stock, only 3 left!

0

23

Toro 92-1008

KNOB-LEVER, HEIGHT ADJUSTMENT

$12.99

$

In Stock, only 3 left!

0

24

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

26

Toro 92-9665

SCREW-TAP

$1.99

$

In Stock, Qty 11

0

27

Toro 95-7068

COVER-DRIVE

$25.99

$

In Stock, only 1 left!

0

30

Toro 92-7723

HANDLE BRACKET ASM-RH
(Superseded to 105-8602)

$45.99

$

In Stock, only 1 left!

0

35

Toro 95-7088

HOUSING

$422.99

$

Usually ships in 3-6 days

0

37

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

38

Toro 92-8647

SHIELD-TRAILING

$35.99

$

In Stock, Qty 9

0

39

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

43

Toro 93-6657

DECAL-DANGER

$25.99

$

Usually ships in 3-6 days

0

44

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 15

0

45

Toro 93-6667

DECAL - WARNING

$

$

Not available

46

Toro 93-1697

FITTING-HOSE

$

$

Currently unavailable

47

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

48

Toro 95-7051

DECAL - DECK,SP

$

$

Not available
