20716 - Toro Walk-Behind Mower (SN: 099000001 - 099999999) (1999) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

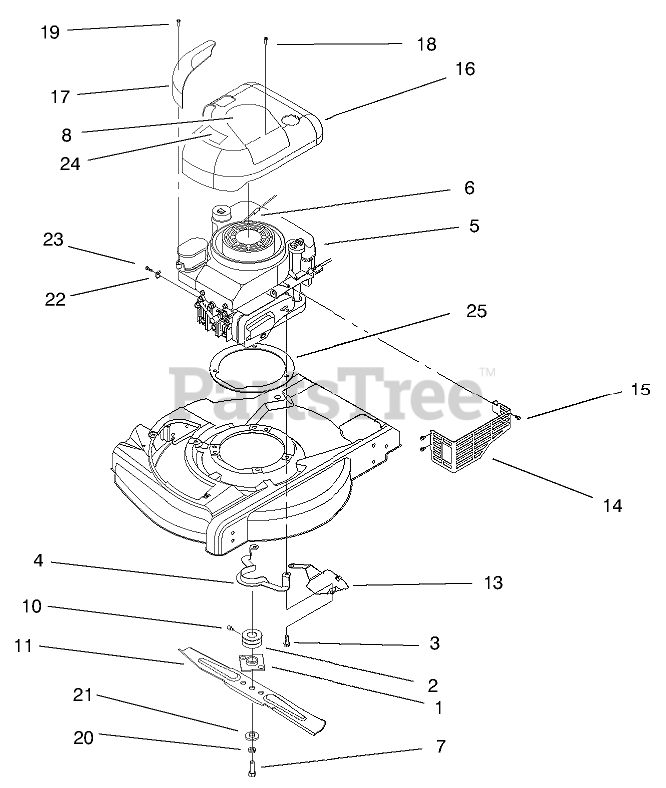

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 677525

PLATE AND COLLAR ASM

$23.99

$

In Stock, Qty 11

0

2

Toro 95-1878

PULLEY

$55.99

$

In Stock, only 1 left!

0

3

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

4

Toro 92-1024-03

GUIDE-BELT

$

$

Not available

5

Engine-Briggs and Stratton 084232-0121-e1

$

$

Not available

6

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

7

Toro 95-1748

SCREW-BLADE
(Superseded to 105-8629)

$20.99

$

In Stock, only 2 left!

0

8

Toro 99-8125

DECAL-RECOIL,4 CYCLE

$

$

Not available

10

Toro 613227

SCREW-SET
(Superseded to 105-8875)

$10.99

$

In Stock, only 1 left!

0

11

Toro 612543

Blade
(Superseded to 612543-03)

$29.99

$

In Stock, Qty 20+

0

13

Toro 93-4196-03

SHIELD-GRASS

$13.99

$

In Stock, only 3 left!

0

14

Toro 82-8550-03

SHIELD-MUFFLER
(Superseded to 104-7577-03)

$25.99

$

Usually ships in 3-6 days

0

15

Toro 32144-73

SCREW-HWH
(Superseded to 104-2065)

$0.99

$

In Stock, Qty 20+

0

16

Toro 95-1704-03

SHROUD-ENGINE

$131.99

$

Usually ships in 3-6 days

0

17

Toro 95-1709

AIR CLEANER COVER ASM

$

$

Not available

18

Toro 95-1706

Screw-Mtg
(Superseded to 92-7887)

$5.99

$

Usually ships in 3-6 days

0

19

Toro 95-1707

SCREW - AIR CLEANER F/W

$2.49

$

Usually ships in 3-6 days

0

20

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

21

Toro 92-8626

SPACER-BLADE

$13.99

$

Usually ships in 3-6 days

0

22

Toro 2210-249

CLAMP-CASING

$3.49

$

Usually ships in 3-6 days

0

23

Toro 93-8470

SCREW-CLAMP

$7.99

$

Usually ships in 3-6 days

0

24

Toro 95-7061

Nameplate-Engine

$

$

Not available

25

Toro 93-7152-01

Plate-Engine

$

$

Currently unavailable
