20718 C - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1985) Engine Assembly Parts Diagram

Walk-Behind Mower

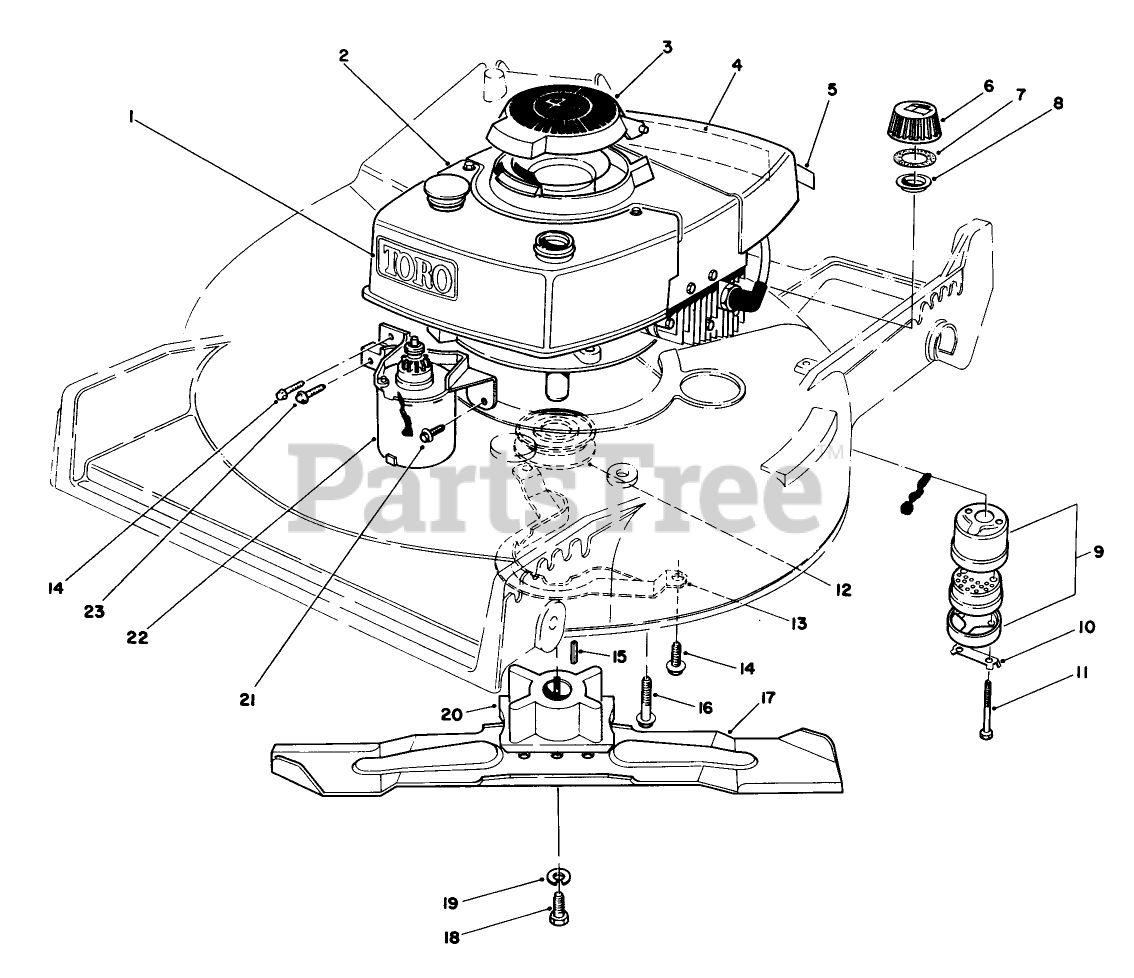

Engine Assembly Parts Diagram

  • Title

1

Toro 44-0510

See Supercession: 70-2200
(Superseded to 70-2200)

$5.99

$

In Stock, only 2 left!

0

2

Toro 55-7150

Engine

$

$

Currently unavailable

3

Toro 38-4720

DISCONTINUED

$

$

Not available

4

Toro 40-2950

DISCONTINUED

$

$

Not available

5

Toro 40-2960

DISCONTINUED

$

$

Not available

6

Toro 42-0682

DISCONTINUED

$

$

Not available

7

Toro 2210-144

GASKET

$

$

Not available

8

Toro 2210-143

DISCONTINUED

$

$

Not available

9

Toro 5-4769

MUFFLER ASM

$67.99

$

Usually ships in 3-6 days

0

10

Toro 3-5094

CLIP - LOCKING

$12.99

$

Usually ships in 3-6 days

0

11

Toro 321-20

SCREW-HH

$7.99

$

Usually ships in 3-6 days

0

12

Toro 23-0130

See Supercession: 93-0278
(Superseded to 93-0278)

$53.99

$

Usually ships in 3-6 days

0

13

Toro 40-5720

DISCONTINUED

$

$

Not available

14

Toro 11-9760

See Supercession: 49-2040
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

15

Toro 7-0036

KEY-SQUARE

$

$

Not available

16

Toro 11-0581

3/8-16 X 2 CAPSCREW

$

$

Not available

17

Toro 42-1000

See Supercession: 107-4276-03
(Superseded to 107-4276-03)

$29.99

$

In Stock, only 4 left!

0

18

Toro 26-0670

SCREW-BLADE

$

$

Not available

19

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

20

Toro 46-3490

BLADE RETAINER(DEEP)

$128.99

$

In Stock, only 1 left!

0

21

Toro 12-3270

SCREW

$3.99

$

In Stock, Qty 9

0

22

Toro 49-4210

DISCONTINUED

$

$

Not available

23

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

In Stock, only 2 left!

0

Toro 33-2930

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 39-5930

DISCONTINUED

Note: Not illustrated

$

$

Not available
