20725 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1979) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

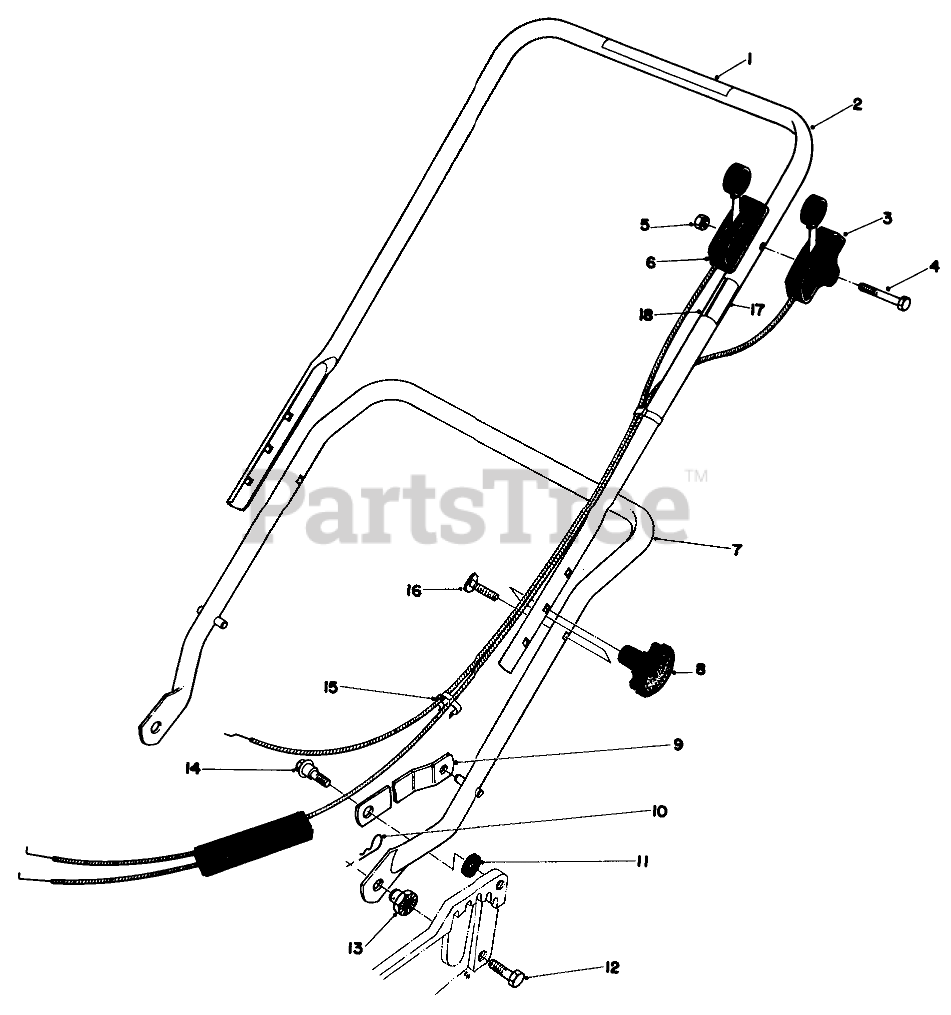

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 39-2740

Decal Danger (French & Dutch)
Usually ships same day

Not available

$

$

2

Toro Part# 334292

Upper Handle
Usually ships same day

Currently unavailable

$

$

3

Toro Part# 33-2525

Traction Control
(Superseded to 46-6030)
Usually ships same day

Not available

$

$

4
Usually ships in 1 day

$

$1.17

0

5

Toro Part# 32146-17

NUT-LOCK
(Superseded to 3296-42)
Usually ships in 1 day

$

$0.40

0

6

Toro Part# 33-2534

Throttle Control
(Superseded to 46-6000)
Usually ships in 1 day

$

$34.43

0

7

Toro Part# 33-4340

LOWER HANDLE ASM
Usually ships same day

Not available

$

$

Usually ships in 1 day

$

$13.41

0

9

Toro Part# 26-0760

HANDLE LATCH
Usually ships same day

Not available

$

$

10

Toro Part# 3290-255

PIN-COTTER, HAIR
Usually ships in 5 to 8 days

$

$7.02

0

11
Usually ships in 1 day

$

$3.30

0

12

Toro Part# 322-5

SCREW-HH
Usually ships in 1 day

$

$0.47

0

13

Toro Part# 12-2080

HANDLE PIVOT NUT
Usually ships in 5 to 8 days

$

$18.21

0

14

Toro Part# 5-2490

SCREW-SHOULDER
Usually ships in 5 to 8 days

$

$7.68

0

15

Toro Part# 218-465

BOWDEN CLIP
Usually ships in 5 to 8 days

$

$5.32

0

16

Toro Part# 17-9420

SCREW-HANDLE
Usually ships in 5 to 8 days

$

$3.34

0

17

Toro Part# 39-3050

Decal Traction Control
Usually ships same day

Not available

$

$

18

Toro Part# 39-2760

Decal Throttle Control
Usually ships same day

Not available

$

$
