20730 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1978) CARBURETOR NO. 631831 Parts Diagram

Walk-Behind Mower

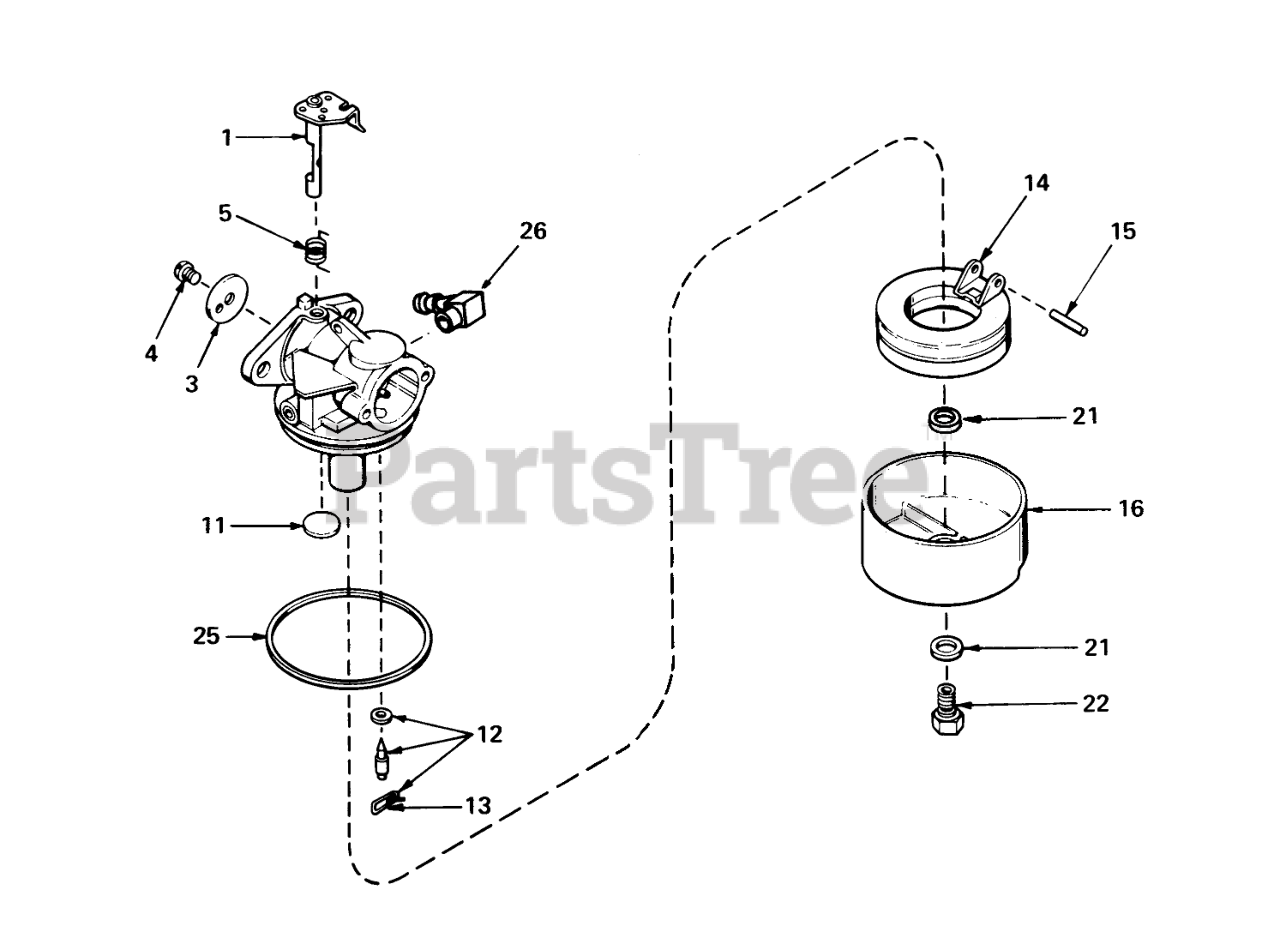

CARBURETOR NO. 631831 Parts Diagram

  • Title
1

Tecumseh Part# 631615

Throttle Shaft and Lever ASM
Usually ships in 1 day

$

$9.08

0

3

Tecumseh Part# 631616

Throttle-Shutter
Usually ships in 8 to 14 days

$

$1.68

0

4

Tecumseh Part# 650506

Screw-Shutter
Usually ships in 1 day

$

$1.22

0

5

Tecumseh Part# 630731

Spring, Return
(Superseded to 631767)
Usually ships in 1 day

$

$1.76

0

11

Tecumseh Part# 631027

Plug-Welch, Atmospheric Vent
Usually ships in 1 day

$

$1.64

0

12

Tecumseh Part# 631021

Inlet Needle, Seat & Clip Assy. ((Incl. Ref. #13)
(Superseded to 631021B)
Usually ships in 1 day

$

$5.40

0

13

Tecumseh Part# 631022

Clip-Spring
Usually ships in 1 day

$

$1.76

0

14

Tecumseh Part# 631023

Float,Carburetor
(Superseded to 632019A)
Usually ships in 1 day

$

$7.31

0

15

Tecumseh Part# 631024

Shaft-Float
Usually ships in 1 day

$

$1.64

0

16
Usually ships in 1 day

$

$3.74

0

21

Tecumseh Part# 631334

Gasket-Bowl
(Superseded to 631334A)
Usually ships in 1 day

$

$3.16

0

22

Tecumseh Part# 631617

Nut, Float Bowl
Usually ships in 8 to 14 days

$

$7.22

0

25

Tecumseh Part# 631028

O Ring-Bowl, Float
(Superseded to 631028A)
Usually ships in 1 day

$

$1.38

0

26

Tecumseh Part# 631807

Fitting-Fuel
Usually ships in 1 day

$

$8.44

0
