20730 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1978) GRASS BAG ASSEMBLY Parts Diagram

Walk-Behind Mower

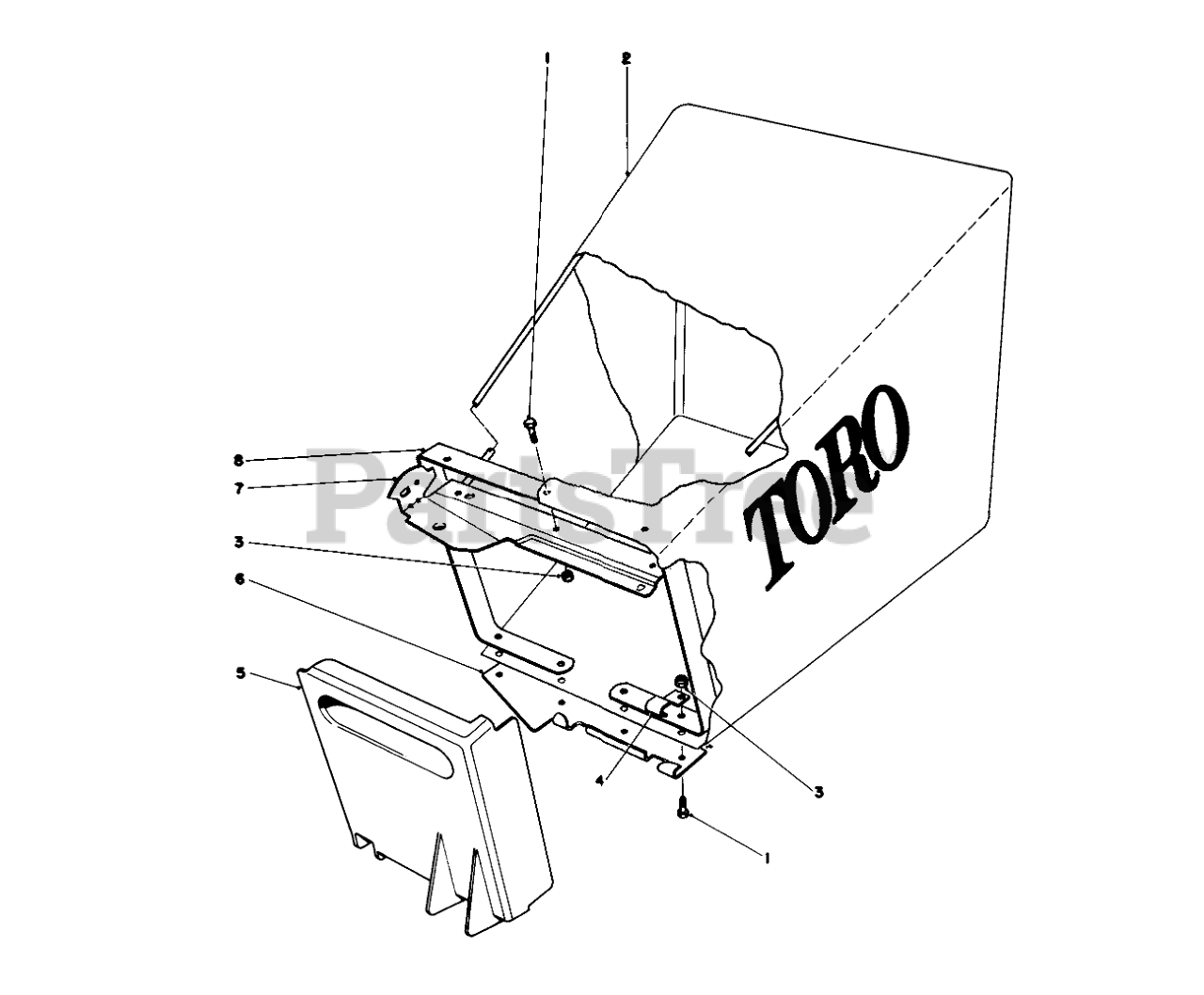

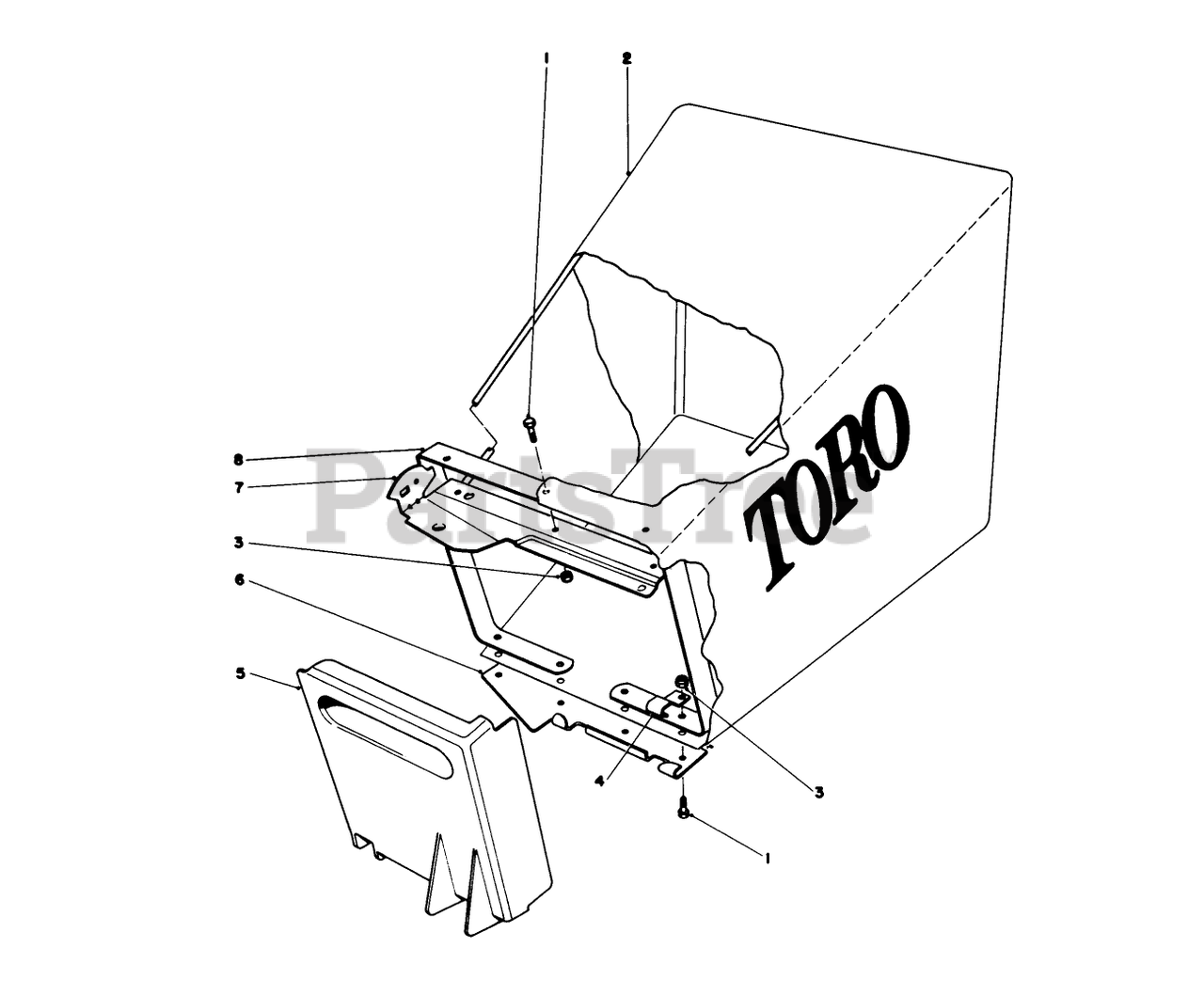

GRASS BAG ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 3290

216 Washer
Usually ships same day

Currently unavailable

$

$

2

Toro Part# 6-1389

REPLACMNT BAG 44-0530
Usually ships same day

Not available

$

$

3

Toro Part# 3290-419

NUT/WASHER
Usually ships same day

Not available

$

$

4

Toro Part# 23-5100

SUPPORT BRACKET
Usually ships same day

Not available

$

$

5
Usually ships in 5 to 8 days

$

$130.38

0

6

Toro Part# 23-1150

DOOR BRACKET
Usually ships same day

Not available

$

$

7

Toro Part# 27-8170

BAG FRAME WA
Usually ships same day

Not available

$

$

8

Toro Part# 23-1110

LOWER BAG FRAME
Usually ships in 5 to 8 days

$

$91.86

0

Toro Part# 6-7859

Grass Bagging Kit (Incl. Ref. #1 thru 8)

Note: Not illustrated

Usually ships same day

Not available

$

$
