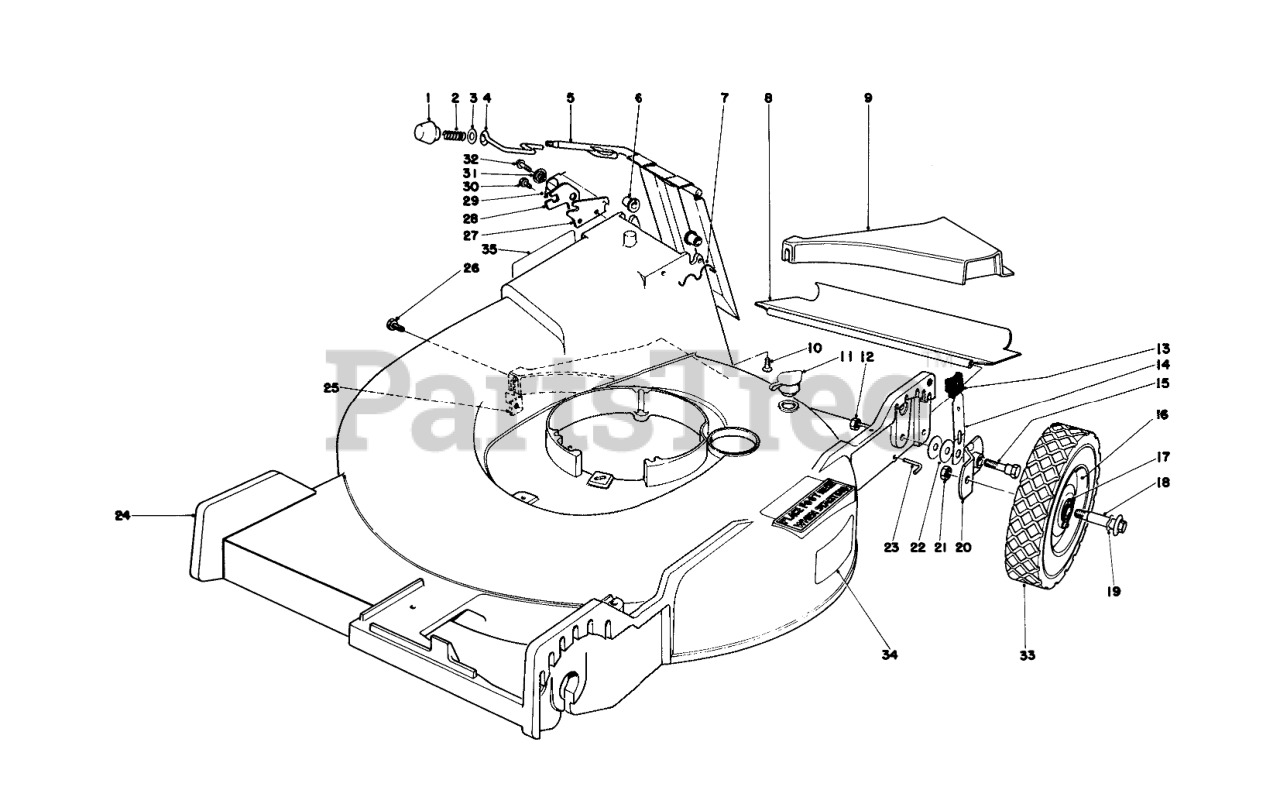

20730 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1978) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

HOUSING ASSEMBLY Parts Diagram

  • Title
Usually ships in 5 to 8 days

$

$25.74

0

2

Toro Part# 23-0920

COMPRESSION SPRING
Usually ships in 5 to 8 days

$

$7.13

0

Usually ships in 5 to 8 days

$

$6.63

0

4

Toro Part# 23-0940

DOOR LATCH
Usually ships same day

Not available

$

$

5

Toro Part# 27-7910

Door Handle
Usually ships same day

Not available

$

$

6

Toro Part# 23-0880

BUSHING-NYLON
Usually ships same day

Not available

$

$

7

Toro Part# 23-0200

Door Retainer
(Superseded to 33-4830)
Usually ships same day

Not available

$

$

8

Toro Part# 23-0560

REAR SAFETY SHIELD
Usually ships same day

Not available

$

$

9

Toro Part# 23-0360

REAR INSERT
Usually ships same day

Not available

$

$

10
Usually ships in 5 to 8 days

$

$4.60

0

11

Toro Part# 6-4500

WASHOUT PLUG
Usually ships in 5 to 8 days

$

$8.13

0

12

Toro Part# 32146-5

Nut
(Superseded to 32153-3)
Usually ships in 5 to 8 days

$

$4.98

0

13
Usually ships in 1 day

$

$4.46

0

14

Toro Part# 25-8000

SPRING ARM ASM
Usually ships in 1 day

$

$54.32

0

15

Toro Part# 25-3440

PIVOT SCREW
Usually ships in 5 to 8 days

$

$14.29

0

16

Toro Part# 26-2960

Wheel & Tire Assy. (Incl. Ref.#4)
(Superseded to 11-1309)
Usually ships in 5 to 8 days

$

$96.61

0

17

Toro Part# 251-180

BEARING-BALL
(Superseded to 116-7257)
Usually ships in 1 day

$

$14.52

0

Usually ships same day

Not available

$

$

19

Toro Part# 3290-393

SPRING WASHER
Usually ships in 5 to 8 days

$

$3.92

0

20

Toro Part# 24-7710

PIVOT ARM ASM A
Usually ships in 5 to 8 days

$

$114.61

0

Toro Part# 23-9120

PIVOT ARM ASM B

Note: Not illustrated

Usually ships same day

Not available

$

$

21

Toro Part# 32146-6

Nut
(Superseded to 3296-6)
Usually ships in 1 day

$

$1.44

0

22

Toro Part# 5-4460

WASHER-PIVOT
Usually ships in 1 day

$

$5.56

0

23

Toro Part# 33-3202

ROD-SHIELD
Usually ships in 1 day

$

$6.24

0

24
Usually ships same day

Not available

$

$

25

Toro Part# 26-0660

SPECIAL NUT
Usually ships same day

Not available

$

$

26

Toro Part# 32104-114

SCREW THD 1/4 20 5/8
Usually ships same day

Not available

$

$

27

Toro Part# 23-1040

DOOR LATCH PLATE
Usually ships in 5 to 8 days

$

$19.78

0

28

Toro Part# 23-1190

Latch Safety
(Superseded to 42-4010)
Usually ships same day

Not available

$

$

29

Toro Part# 23-1200

TORSION SPRING
Usually ships same day

Not available

$

$

Usually ships same day

Currently unavailable

$

$

31

Toro Part# 23-1180

Latch Spacer
Usually ships same day

Not available

$

$

32

Toro Part# 11-9760

Screw
(Superseded to 49-2040)
Usually ships in 1 day

$

$1.67

0

Usually ships same day

Not available

$

$

34

Toro Part# 36-5920

Decal Step
Usually ships same day

Not available

$

$

35

Toro Part# 36-7830

Decal Caution
Usually ships same day

Not available

$

$

Toro Part# 26-9510

Replacement Stud Kit

Note: Not illustrated

Usually ships same day

Not available

$

$

Toro Part# 8-1699

Loose Parts Kit

Note: Not illustrated

Usually ships same day

Currently unavailable

$

$
