20730 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1978) MAGNETO NO. 610964 Parts Diagram

Walk-Behind Mower

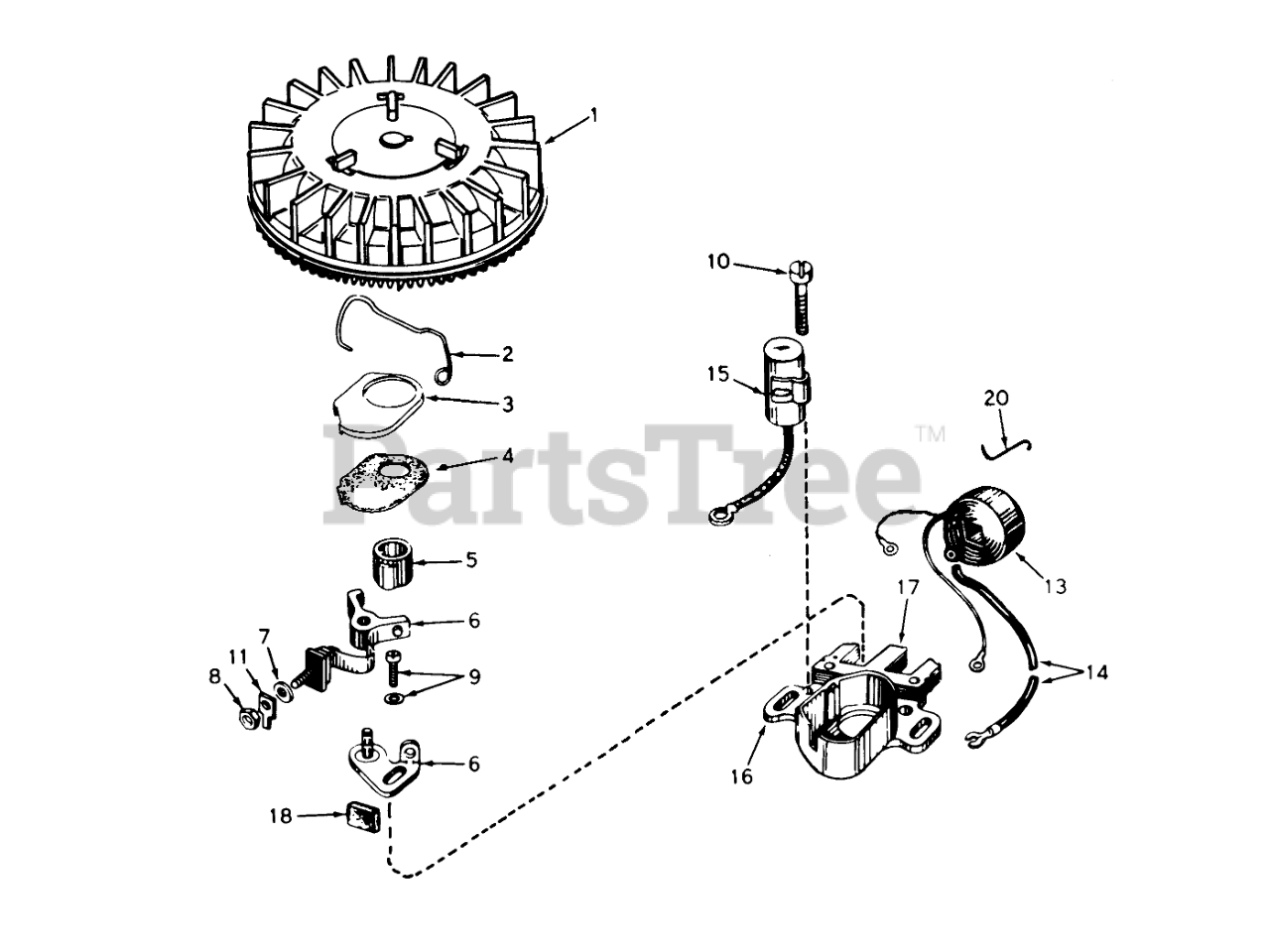

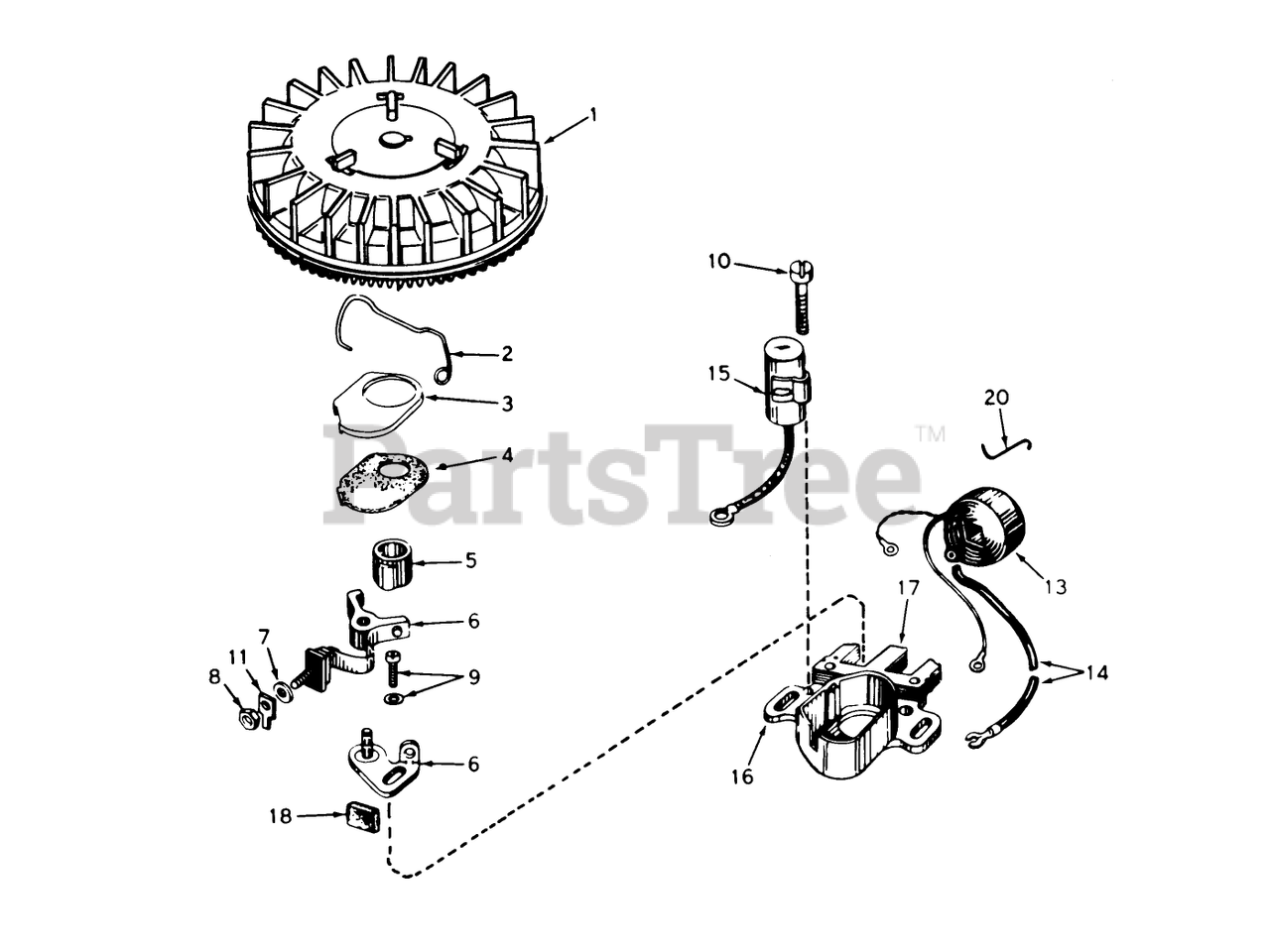

MAGNETO NO. 610964 Parts Diagram

  • Title
1

Tecumseh Part# 610963

Flywheel

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.

Usually ships same day

Currently unavailable

$

$

2

Tecumseh Part# 30551

Spring Breaker Box

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.

Usually ships in 8 to 14 days

$

$1.52

0

3

Tecumseh Part# 610947

Cover-Dust

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.

Usually ships in 1 day

$

$3.64

0

4

Tecumseh Part# 610950

Gasket, Dust Cover

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.

Usually ships same day

Currently unavailable

$

$

5

Tecumseh Part# 30992

Cam-Breaker

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.

Usually ships in 8 to 14 days

$

$5.60

0

6

Tecumseh Part# 30547A

Breaker Assy.

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.

Usually ships in 1 day

$

$15.69

0

7

Tecumseh Part# 610385

Washer

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.

Usually ships in 8 to 14 days

$

$1.52

0

8

Tecumseh Part# 610408

DECAL

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.

Usually ships same day

Currently unavailable

$

$

9

Tecumseh Part# 29181

Breaker Screw

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.

Usually ships in 1 day

$

$1.66

0

10

Tecumseh Part# 610593

Condenser Screw

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.

Usually ships in 1 day

$

$1.68

0

11

Tecumseh Part# 33356

Terminal, Ground

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.

Usually ships in 1 day

$

$1.76

0

13

Tecumseh Part# 30560A

Coil Assy. (Incl. Ref. #14)

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.

Usually ships in 1 day

$

$51.52

0

14

Tecumseh Part# 30554

Wire, Lead

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.

Usually ships same day

Currently unavailable

$

$

15

Tecumseh Part# 30548A

Condenser
(Superseded to 30548B)

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.

Usually ships in 1 day

$

$11.76

0

16

Tecumseh Part# 30545

Core & Plate

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.

Usually ships in 8 to 14 days

$

$17.64

0

17

Tecumseh Part# 30561B

Stator Assy. (Incl. Ref. #2, 3, 4, 6 thru 16, 18 & 20)

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.

Usually ships same day

Currently unavailable

$

$

18

Tecumseh Part# 30549

Felt,Cam Wiper

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.

Usually ships in 1 day

$

$1.70

0

20

Tecumseh Part# 31311

Clip, Coil

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.

Usually ships in 8 to 14 days

$

$1.66

0
