20735 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) CARBURETOR ASSEMBLY MODEL NO. 110908-1207-01 Parts Diagram

Walk-Behind Mower

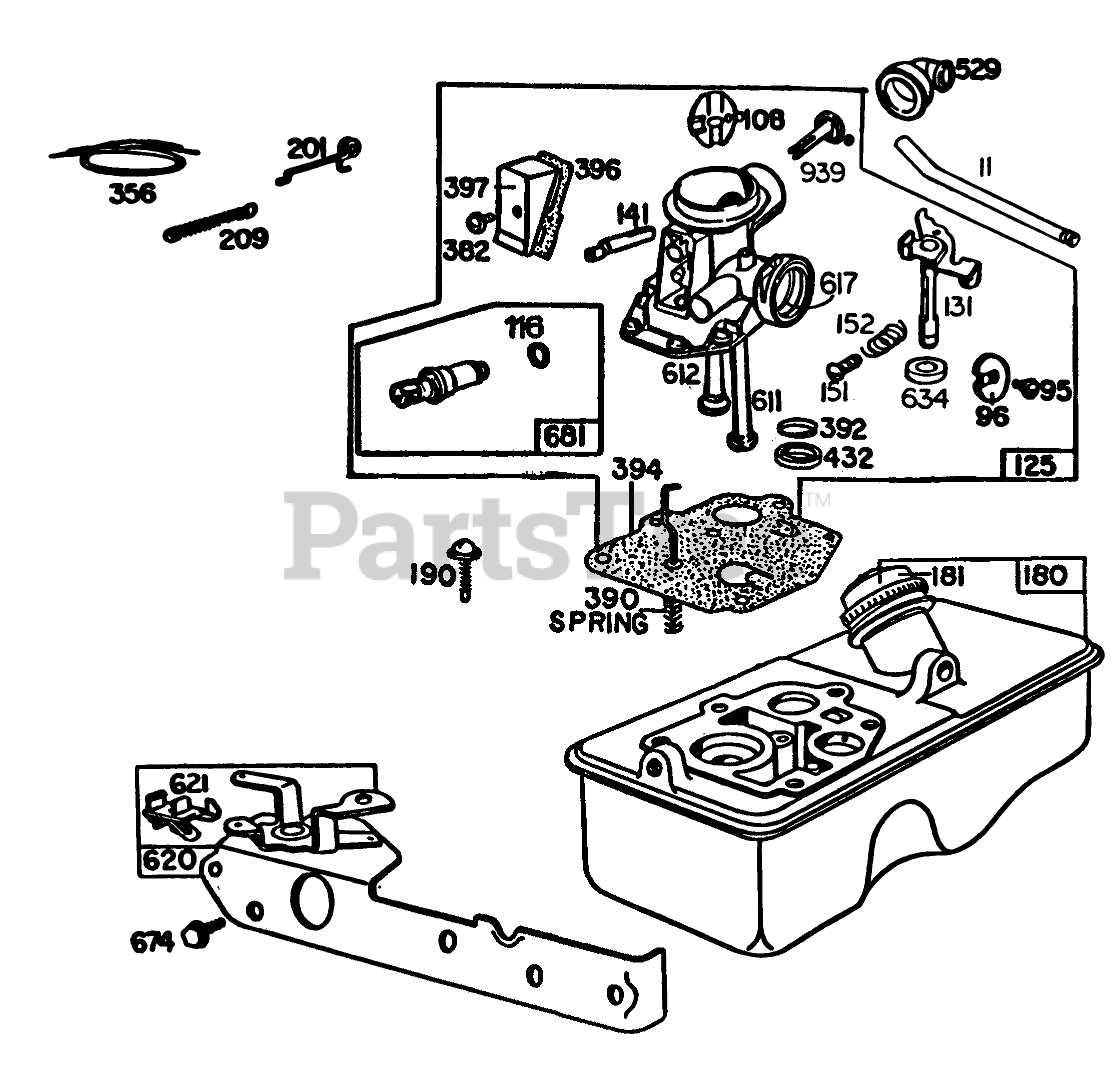

CARBURETOR ASSEMBLY MODEL NO. 110908-1207-01 Parts Diagram

  • Title

11

Briggs & Stratton 231292

Tube-Breather

$4.49

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 93499

Screw
(Superseded to 691437)

$3.99

$

In Stock, only 2 left!

0

96

Briggs & Stratton 211237

Valve

$8.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 280370

Valve-Choke

$5.99

$

Usually ships in 2-12 days

0

116

Briggs & Stratton 280203

O-Ring
(Superseded to 691898)

$5.49

$

In Stock, only 4 left!

0

125

Briggs & Stratton 395957

Carburetor Assembly

$

$

Not available

131

Briggs & Stratton 299977

Shaft & Lever-Throttle

$15.99

$

Usually ships in 2-12 days

0

141

Briggs & Stratton 68908

Shaft-Choke

$14.99

$

Usually ships in 2-12 days

0

151

Briggs & Stratton 93524

Screw-Rd. Hd

$3.99

$

Usually ships in 2-12 days

0

152

Briggs & Stratton 260746

Spring-Throttle Adj
(Superseded to 691783)

$7.99

$

In Stock, only 1 left!

0

180

Briggs & Stratton 391694

Tank Assembly-Fuel
(Superseded to 495912)

$

$

Not available

181

Briggs & Stratton 391494

Cap-Fuel Tank
(Superseded to 493982S)

$4.99

$

In Stock, only 4 left!

0

190

Briggs & Stratton 93440

Screw-Fuel Tank
(Superseded to 692200)

$

$

Not available

201

Briggs & Stratton 261027

Link-Governor

$5.99

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 261312

Spring-Governor

$

$

Not available

356

Briggs & Stratton 298479

Wire-Ground
(Superseded to 398808)

$11.99

$

In Stock, only 1 left!

0

382

Briggs & Stratton 93545

Screw-Choke Link Cover

$3.49

$

Usually ships in 2-12 days

0

390

Briggs & Stratton 261249

Spring-Diaphragm

$5.99

$

Usually ships in 2-12 days

0

392

Briggs & Stratton 260455

Spring-Fuel Pump
(Superseded to 692206)

$4.49

$

In Stock, only 3 left!

0

394

Briggs & Stratton 391643

Diaphragm
(Superseded to 391681)

$19.99

$

In Stock, Qty 5

0

396

Briggs & Stratton 270571

Gasket-Choke Link Cover

$6.99

$

In Stock, only 2 left!

0

397

Briggs & Stratton 211678

Cover-Choke Link

$3.49

$

Usually ships in 2-12 days

0

432

Briggs & Stratton 221377

Cap-Spring
(Superseded to 690766)

$4.99

$

In Stock, Qty 20+

0

529

Briggs & Stratton 280368

Grommet-Breather

$7.99

$

Usually ships in 2-12 days

0

611

Briggs & Stratton 297219

Pipe Fuel (long)
(Superseded to 297219S)

$8.99

$

Usually ships in 2-12 days

0

612

Briggs & Stratton 296811

Pipe-Fuel
(Superseded to 497413S)

$7.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 270344

Seal-O Ring
(Superseded to 270344S)

$3.49

$

In Stock, Qty 20+

0

620

Briggs & Stratton 391442

Plate-Carburetor Control

$34.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 297472

Switch-Stop
(Superseded to 297472S)

$

$

Not available

634

Briggs & Stratton 270167

Washer (Felt)

$4.99

$

In Stock, Qty 16

0

674

Briggs & Stratton 93559

Screw
(Superseded to 690810)

$3.49

$

In Stock, only 4 left!

0

681

Briggs & Stratton 395508

Needle Valve Kit

$8.99

$

Usually ships in 2-12 days

0

939

Briggs & Stratton 395665

Choke Shaft Assy.

$14.99

$

Usually ships in 2-12 days

0
