20735 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) GEAR CASE ASSEMBLY Parts Diagram

Walk-Behind Mower

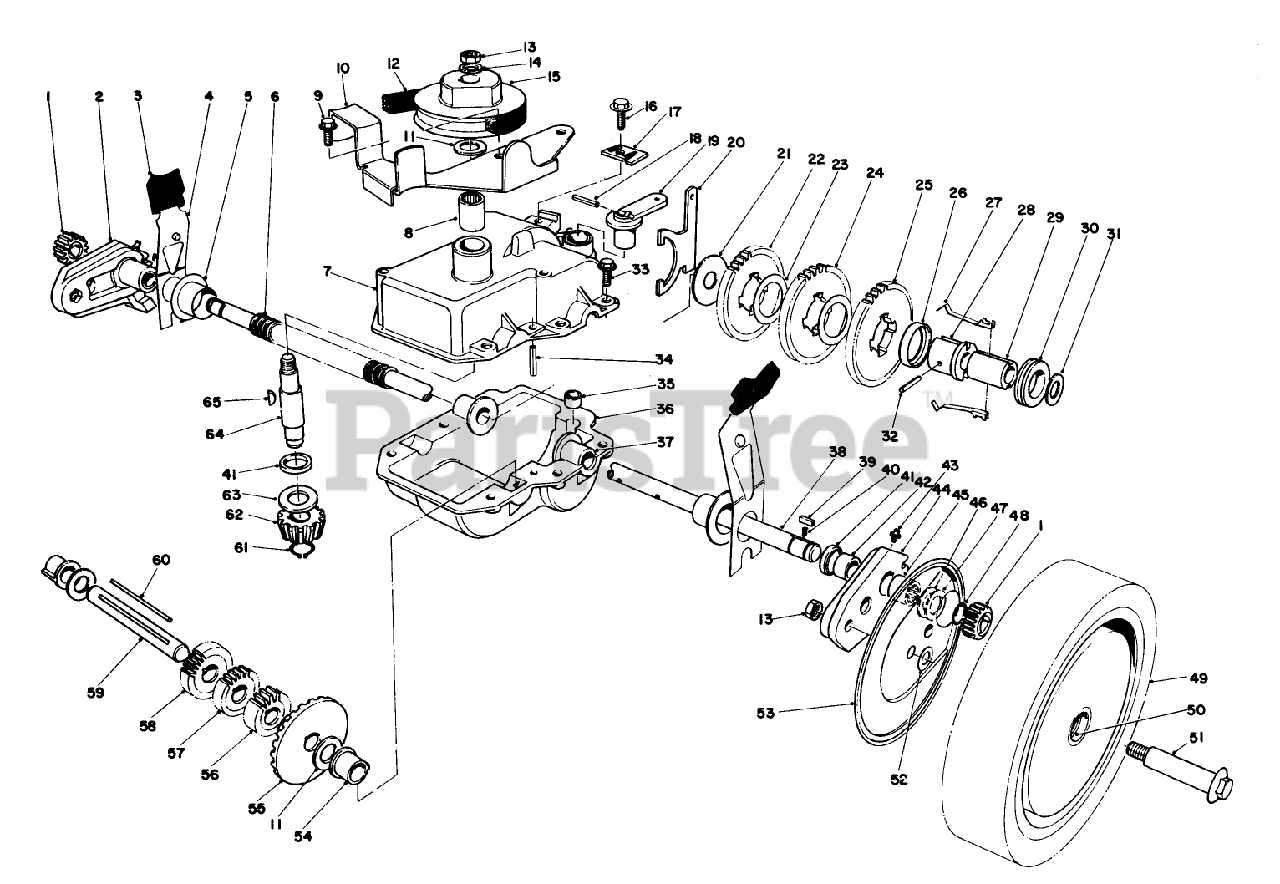

GEAR CASE ASSEMBLY Parts Diagram

  • Title

1

Toro 39-9160

GEAR-PINION

$14.99

$

In Stock, Qty 11

0

2

Toro 29-9590

See Supercession: 49-7720
(Superseded to 49-7720)

$

$

Not available

3

Toro 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 12

0

4

Toro 44-1010

SPRING ARM ASM SP

$47.99

$

Usually ships in 3-6 days

0

5

Toro 42-3520

CAP-END
(Superseded to 138-3235)

$3.99

$

In Stock, Qty 20+

0

6

Toro 24-7922

CONDUIT-CONVOLUTED, SPLIT

$11.99

$

Usually ships in 3-6 days

0

7

Toro 39-7282

DISC PRC4

$

$

Not available

8

Toro 47-6720

BEARING

$43.99

$

Usually ships in 3-6 days

0

9

Toro 12-3270

SCREW

$3.99

$

In Stock, Qty 9

0

10

Toro 46-3570

DISCONTINUED
(Superseded to 49-8460)

$

$

Not available

11

Toro 36-4790

WASHER-THRUST

$3.49

$

Usually ships in 3-6 days

0

12

Toro 36-8070

V-BELT

$15.99

$

In Stock, only 2 left!

0

13

Toro 32146-6

See Supercession: 3296-6
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 10

0

14

Toro 3256-45

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

15

Toro 39-6740

PULLEY

$56.99

$

In Stock, only 2 left!

0

16

Toro 32144-11

SCREW-THD ROLL, HWH

$8.49

$

In Stock, only 2 left!

0

17

Toro 46-5610

See Supercession: 62-3720
(Superseded to 62-3720)

$2.99

$

In Stock, only 1 left!

0

18

Toro 32121-99

PIN-SPRING

$1.49

$

Usually ships in 3-6 days

0

19

Toro 29-9560

LEVER-SHIFT

$18.99

$

Usually ships in 3-6 days

0

20

Toro 29-9520

See Supercession: 60-8870
(Superseded to 60-8870)

$26.99

$

In Stock, only 2 left!

0

21

Toro 29-9690

WASHER

$

$

Not available

22

Toro 42-4740

GEAR-38T

$94.99

$

In Stock, only 3 left!

0

23

Toro 36-4770

WASHER

$6.99

$

Usually ships in 3-6 days

0

24

Toro 29-9271

GEAR-42T

$100.99

$

Usually ships in 3-6 days

0

25

Toro 46-3560

GEAR

$84.99

$

In Stock, only 1 left!

0

26

Toro 39-7830

DISCONTINUED

$

$

Not available

27

Toro 39-6470

See Supercession: 29-9330
(Superseded to 29-9330)

$29.99

$

In Stock, Qty 6

0

28

Toro 39-6730

See Supercession: 55-8010
(Superseded to 55-8010)

$20.99

$

In Stock, only 4 left!

0

29

Toro 39-6720

SLEEVE

$18.99

$

Usually ships in 3-6 days

0

30

Toro 29-9340

COLLAR-SHIFT

$47.99

$

Usually ships in 3-6 days

0

31

Toro 36-4780

WASHER-PLAIN

$8.49

$

In Stock, Qty 12

0

32

Toro 32121-10

PIN-ROLL

$9.49

$

Usually ships in 3-6 days

0

33

Toro 32144-44

SCREW-HWH, THREAD ROLL

$1.99

$

In Stock, Qty 5

0

34

Toro 32121-100

ROLL PIN 3/16 X 1 IN

$2.49

$

Usually ships in 3-6 days

0

35

Toro 29-9570

BUSHING-YOKE

$12.99

$

In Stock, only 3 left!

0

36

Toro 29-9410

DISCONTINUED

$

$

Not available

37

Toro 47-5220

DISCONTINUE

$

$

Not available

38

Toro 44-0850

See Supercession: 12-6659
(Superseded to 12-6659)

$311.99

$

Usually ships in 3-6 days

0

39

Toro 39-9680

KEY RECTANGULAR

$5.49

$

In Stock, Qty 20+

0

40

Toro 39-9650

SPRING-COMPRESSION

$3.99

$

In Stock, Qty 20+

0

41

Toro 47-7260

SEAL

$10.99

$

In Stock, only 2 left!

0

42

Toro 47-2890

BUSHING

$3.99

$

Usually ships in 3-6 days

0

43

Toro 302-56

FITTING-GREASE

$5.49

$

In Stock, Qty 11

0

44

Toro 29-9640

DISCONTINUED
(Superseded to 49-7710)

$

$

Not available

45

Toro 48-2060

See Supercession: 117-3500
(Superseded to 117-3500)

$5.49

$

In Stock, Qty 7

0

46

Toro 252-73

See Supercession: 608030
(Superseded to 60-8030)

$

$

Not available

47

Toro 46-2840

DISCONTINUED

$

$

Not available

48

Toro 32151-68

RING-RETAINING
(Superseded to 65-2720)

$1.49

$

In Stock, Qty 20+

0

49

Toro 44-0571

See Supercession: 16-0029
(Superseded to 16-0029)

$42.99

$

In Stock, only 2 left!

0

51

Toro 27-4230

See Supercession: 27-4230-03
(Superseded to 27-4230-03)

$

$

Not available

52

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 12

0

53

Toro 44-0600

WHEEL COVER

$

$

Not available

54

Toro 47-5210

BUSHING

$

$

Not available

55

Toro 39-6670

DISCONTINUED

$

$

Not available

56

Toro 46-3540

GEAR-12T

$15.99

$

In Stock, Qty 5

0

57

Toro 46-3550

GEAR-14T

$24.99

$

Usually ships in 3-6 days

0

58

Toro 39-6650

GEAR-18T

$15.99

$

In Stock, only 2 left!

0

59

Toro 46-9470

DISCONTINUED

$

$

Not available

60

Toro 39-7841

See Supercession: 39-7843
(Superseded to 39-7843)

$

$

Not available

61

Toro 32151-57

RING-RETAINING

$5.49

$

In Stock, only 3 left!

0

62

Toro 39-6660

PINION-BEVEL

$44.99

$

In Stock, only 1 left!

0

63

Toro 47-2910

WASHER-THRUST

$15.99

$

Usually ships in 3-6 days

0

64

Toro 39-6690

DISCONTINUED

$

$

Not available

65

Toro 3257-1

KEY-WOODRUFF

$2.99

$

In Stock, Qty 14

0

Toro 11-4139

See Supercession: 12-7179
(Superseded to 12-7179)

$

$

Not available
