20740 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1978) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

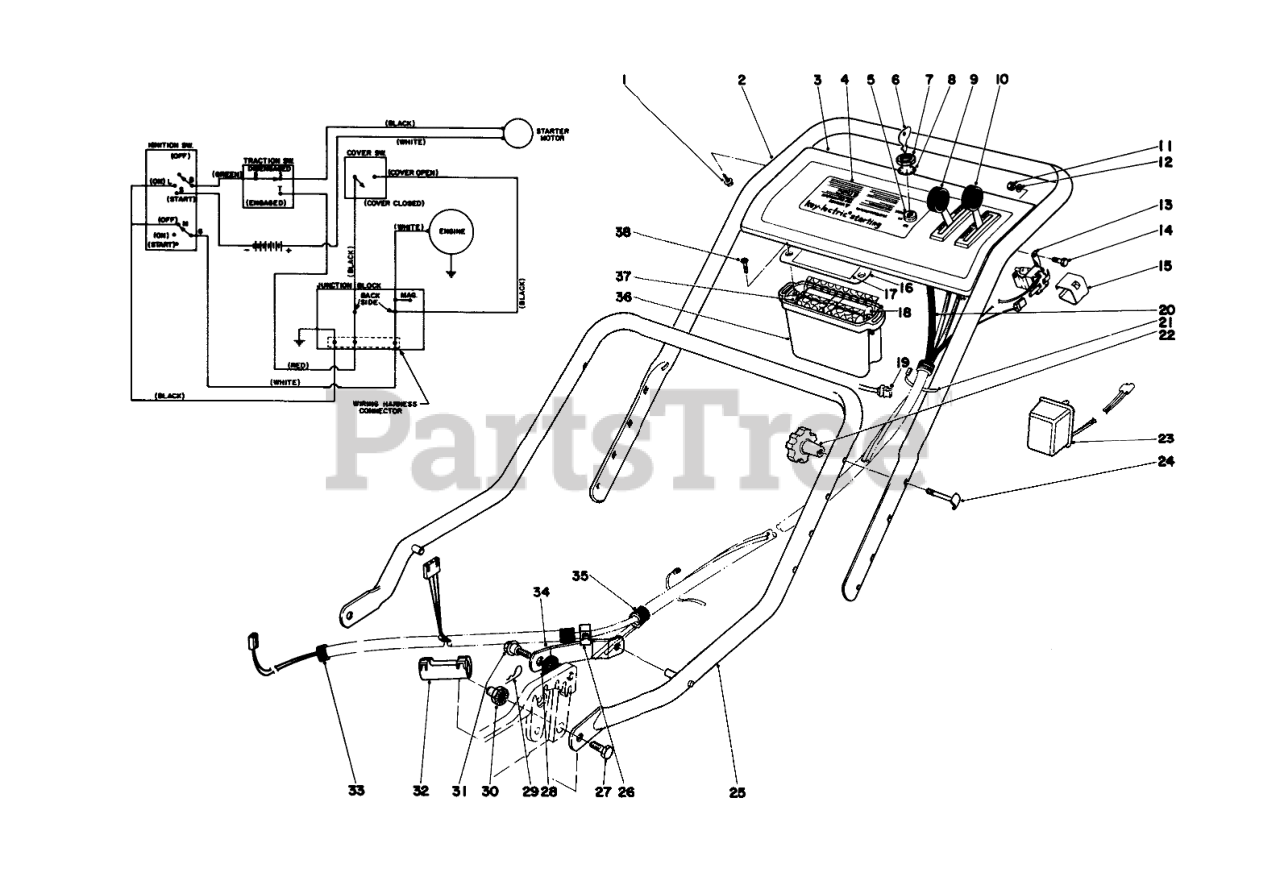

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

2

Toro 28-5430

Upper Handle

$

$

Not available

3

Toro 23-0590

Control Plate

$

$

Currently unavailable

4

Toro 37-1120

Decal Control Plate

$

$

Not available

5

Toro 23-0660

SWITCH-STARTER

$22.99

$

Usually ships in 3-6 days

0

6

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 12

0

7

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 18

0

8

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 13

0

9

Toro 33-2545

Throttle Control
(Superseded to 46-6010)

$60.99

$

Usually ships in 3-6 days

0

10

Toro 33-2550

Traction Control
(Superseded to 46-6040)

$

$

Not available

11

Toro 3296-9

NUT-HEX

$0.99

$

In Stock, Qty 8

0

12

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

13

Toro 24-9760

CONTROL SWITCH

$99.99

$

Usually ships in 3-6 days

0

14

Toro 3290-124

SCREW-HH

$

$

Not available

15

Toro 25-1590

Cover Switch

$

$

Not available

16

Toro 6-8230

Cover

$

$

Not available

17

Toro 37-1110

Decal

$

$

Not available

18

Toro 24-7751

Battery Pack Assembly (Incl. Ref. #16-19 & 36-38)

$

$

Not available

19

Toro 24-5690

Plug & Wire Assembly

$

$

Not available

20

Toro 25-0100

Wiring Harness

$

$

Not available

21

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 14

0

22

Toro 19-4050

KNOB

$17.99

$

In Stock, Qty 9

0

23

Toro 22-4710

Charger
(Superseded to 98-2391)

$60.99

$

Usually ships in 3-6 days

0

24

Toro 6-6330

HANDLE SCREW

$

$

Not available

25

Toro 26-0740

Lower Handle

$

$

Currently unavailable

26

Toro 2412-48

RING FITTING

$

$

Not available

27

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Toro 3-3287

SPACER

$5.49

$

In Stock, only 4 left!

0

29

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

30

Toro 12-2080

HANDLE PIVOT NUT

$22.99

$

Usually ships in 3-6 days

0

31

Toro 5-2490

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

32

Toro 2412-49

Breakout Fitting

$

$

Not available

33

Toro 25-1180

WIRING HARNESS COVER
(Superseded to 116-7257)

$18.99

$

In Stock, only 1 left!

0

34

Toro 26-0760

HANDLE LATCH

$

$

Not available

35

Toro 25-1190

Upper Wiring Harness

$

$

Not available

36

Toro 6-9750

Container Pack

$

$

Not available

37

Toro 6-8320

Spacer

$

$

Not available

38

Toro 32104-93

Screw

$

$

Not available

Toro 33-2930

Rope-Starter

Note: Not illustrated

$

$

Not available

Toro 8-1669

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
