20742 C - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1985) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

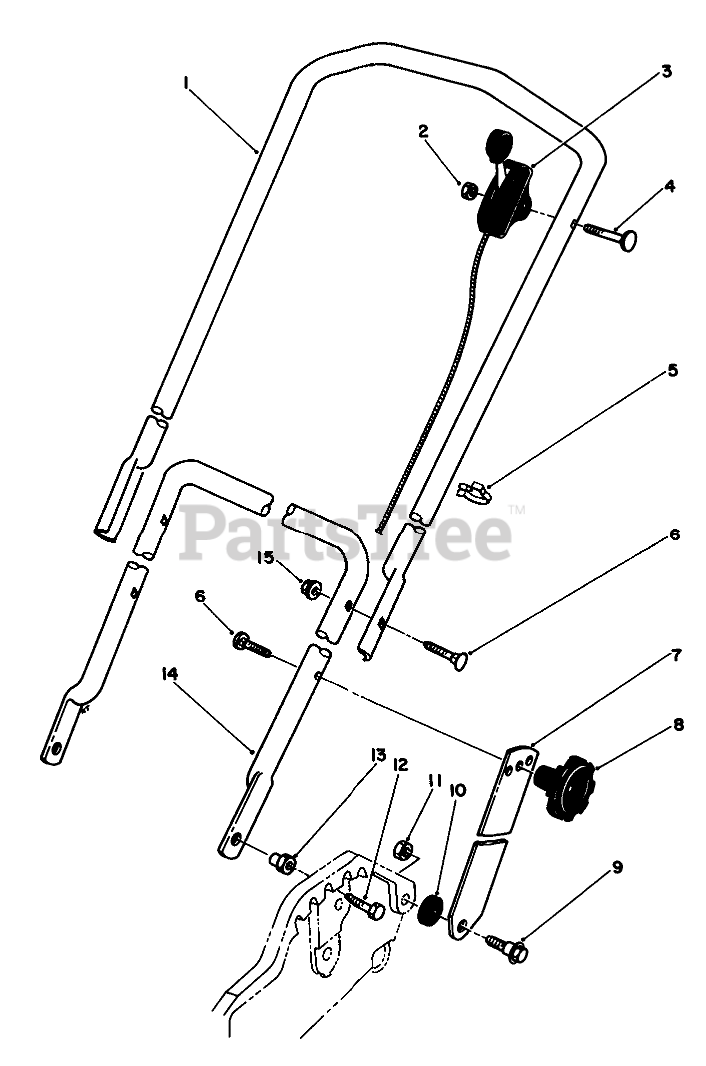

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 52-7420

UPPER HANDLE
Usually ships in 5 to 8 days

$

$116.32

0

2

Toro Part# 3296-42

NUT-LOCK, NI
Usually ships in 1 day

$

$0.40

0

3

Toro Part# 46-6000

SERVICE THROTTLE CONTRO
Usually ships in 1 day

$

$34.43

0

4

Toro Part# 46-6430

SCREW-HANDLE
Usually ships in 5 to 8 days

$

$8.93

0

5

Toro Part# 218-465

BOWDEN CLIP
Usually ships in 5 to 8 days

$

$5.32

0

6

Toro Part# 17-9424

SCREW
(Superseded to 6-6330)
Usually ships same day

Not available

$

$

7

Toro Part# 43-1370

Handle Latch
(Superseded to 98-7138)
Usually ships same day

Not available

$

$

Usually ships in 1 day

$

$13.41

0

9

Toro Part# 27-7210

SCREW-SHOULDER
Usually ships in 1 day

$

$6.54

0

10
Usually ships in 1 day

$

$3.30

0

11

Toro Part# 3296-29

NUT-LOCK, NI
Usually ships in 1 day

$

$2.00

0

12

Toro Part# 322-5

SCREW-HH
Usually ships in 1 day

$

$0.47

0

13

Toro Part# 12-2080

HANDLE PIVOT NUT
Usually ships in 5 to 8 days

$

$18.21

0

14

Toro Part# 50-9920

LOWER HANDLE
Usually ships same day

Not available

$

$

15

Toro Part# 3296-58

NUT-LOCK, NI
Usually ships in 1 day

$

$2.05

0
