20742 C - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1985) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

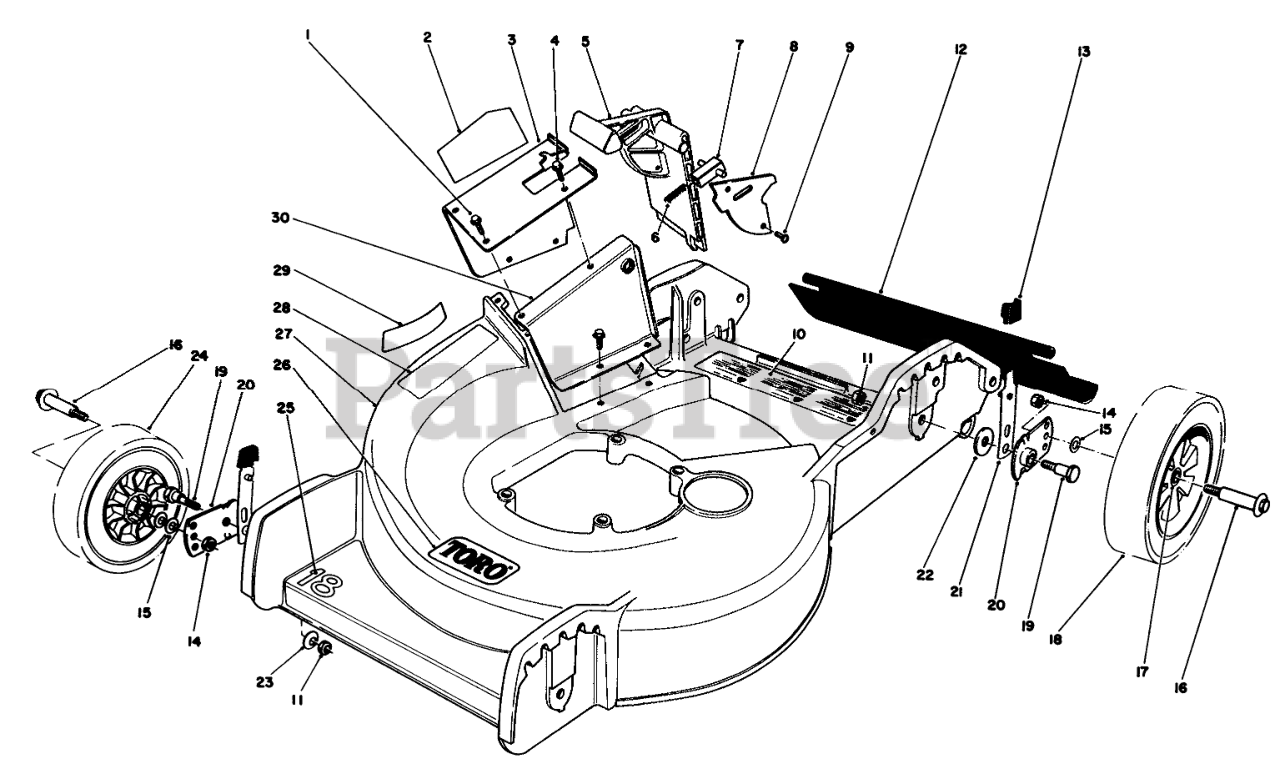

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 12-3270

SCREW

$3.49

$

In Stock, only 2 left!

0

2

Toro 49-8530

Decal-Danger
(Superseded to 13-5839)

$

$

Not available

3

Toro 11-1579

Tunnel-Outer (Incl. Ref. #2)

$

$

Not available

4

Toro 12-5450

SCREW

$8.99

$

In Stock, only 2 left!

0

5

Toro 33-0410

Door Mulching
(Superseded to 33-0412)

$

$

Not available

6

Toro 33-0450

SPRING-COMPRESSION, LATCH

$

$

Not available

7

Toro 47-5550

Door Latch
(Superseded to 47-5551)

$

$

Not available

8

Toro 33-0440

Cover Door
(Superseded to 33-0441)

$11.99

$

Usually ships in 3-6 days

0

9

Toro 32144-32

SCREW

$2.49

$

Usually ships in 3-6 days

0

10

Toro 46-9260

Decal-Danger

$

$

Not available

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 33-2380

SHIELD - TRAILING

$59.99

$

Usually ships in 3-6 days

0

13

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 13

0

14

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 17

0

15

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

16

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 3 left!

0

17

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

18

Toro 27-6200

Wheel & Tire Assembly (Incl. Ref. #17)

$

$

Not available

19

Toro 3-0655

5/16-18 PIVOT SCREW

$15.99

$

In Stock, only 1 left!

0

20

Toro 33-0400

PIVOT ARM ASSY

$33.99

$

Usually ships in 3-6 days

0

21

Toro 25-8000

SPRING ARM ASM

$69.99

$

Usually ships in 3-6 days

0

22

Toro 33-0390

PIVOT WASHER

$3.49

$

In Stock, only 2 left!

0

23

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 10

0

24

Toro 27-6210

Wheel & Tire Assembly (Incl Ref. #17)

$

$

Not available

25

Toro 33-0500

Decal

$

$

Not available

26

Toro 44-0510

Decal Tow
(Superseded to 70-2200)

$6.49

$

Usually ships in 3-6 days

0

27

Toro 12-1589

Housing (Incl. Ref. #10)
(Superseded to 12-1089)

$998.99

$

Usually ships in 3-6 days

0

28

Toro 46-9320

Decal-Step Pad

$

$

Not available

29

Toro 46-7370

STEP PAD DECAL

$24.99

$

Usually ships in 3-6 days

0

30

Toro 49-8030

Tunnel-Inner
(Superseded to 49-8030-01)

$

$

Not available
