20742 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) Engine Briggs Stratton Model 92908-5205-01 Parts Diagram

Walk-Behind Mower

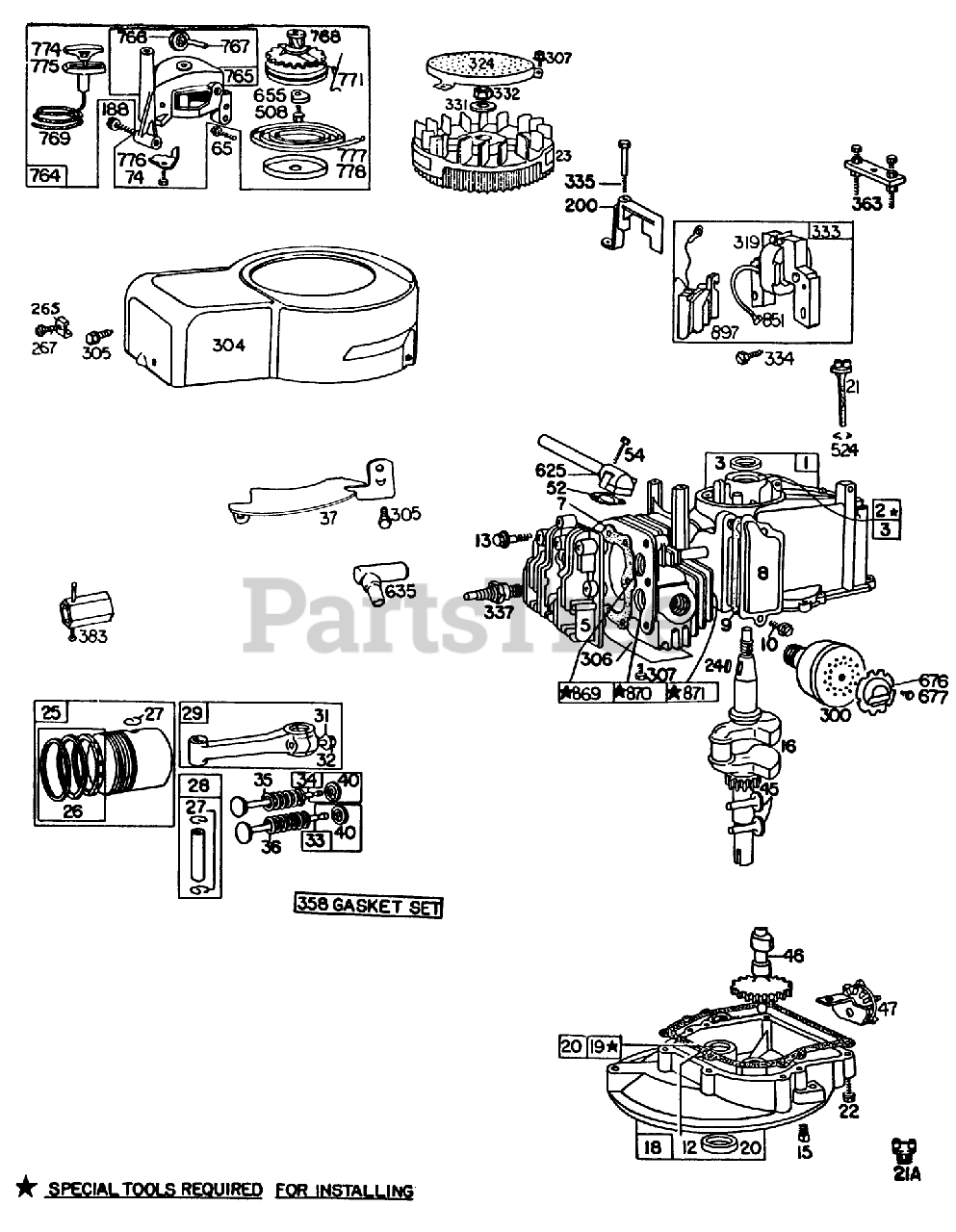

Engine Briggs Stratton Model 92908-5205-01 Parts Diagram

  • Title

1

Toro 395373

Cylinder Assembly

$

$

Currently unavailable

2

Toro 293708

Bushing

Note: Requires special tools for installation.

$

$

Currently unavailable

3

Toro 299819

Seal-Oil

$

$

Currently unavailable

5

Toro 211479

Head Cylinder

$

$

Currently unavailable

7

Toro 270341

Gasket-Cylinder Hd.

Note: Indicates items included in Gasket Set part no. 298989.

$

$

Currently unavailable

8

Toro 298383

Breather-Valve

$

$

Currently unavailable

9

Toro 270239

Gasket Valve Cover

Note: Indicates items included in Gasket Set part no. 298989.

$

$

Currently unavailable

10

Toro 93394

Screw

$

$

Currently unavailable

12

Toro 270833

Gasket-Crankcase-.015" thick

Note: Indicates items included in Gasket Set part no. 298989.

$

$

Currently unavailable

Toro 270895

Gasket-Crankcase .005"

Note: Indicates items included in Gasket Set part no. 298989.

$

$

Currently unavailable

Toro 270896

Gasket-Crankcase .009"

Note: Indicates items included in Gasket Set part no. 298989.

$

$

Currently unavailable

13

Toro 93111

Screw-Cylinder Hd.

$

$

Currently unavailable

15

Toro 91084

Plug-Pipe

$

$

Currently unavailable

16

Toro 261293

Crankshaft

$

$

Currently unavailable

18

Toro 390810

Sump-Oil

$

$

Currently unavailable

19

Toro 293709

Bushing-Oil Base

Note: Requires special tools for installation.

$

$

Currently unavailable

20

Toro 391483

Seal-Oil

$

$

Currently unavailable

21

Toro 280381

Gage-Oil Filler Plug

$

$

Currently unavailable

21A

Toro 66768

Plug-Oil

$

$

Currently unavailable

22

Toro 93032

Screw

$

$

Currently unavailable

23

Toro 394032

Flywheel-Magneto

$

$

Currently unavailable

24

Toro 222698

Key

$

$

Currently unavailable

25

Toro 298904

Piston Assy.-Std.

$

$

Currently unavailable

Toro 298905

Piston Assy.-010"O.S.

$

$

Currently unavailable

Toro 298906

Piston Assy.-020"O.S.

$

$

Currently unavailable

Toro 298907

Piston Assy. .030" O.S.

$

$

Currently unavailable

26

Toro 298982

Ring Set (Std.)

Note: For Chrome Piston Ring Set-Standard Size-Order Part No. 299742.

$

$

Currently unavailable

Toro 298983

Ring Set (.010" O.S.)

$

$

Currently unavailable

Toro 298984

Ring Set (.020" O.S.)

$

$

Currently unavailable

Toro 298985

Lock-Piston Pin

$

$

Currently unavailable

27

Toro 26026

Iock-Piston Pin

$

$

Currently unavailable

28

Toro 298909

Pin Ass-y-Piston

$

$

Currently unavailable

Toro 298908

Pin-Piston (.005 Undersize)

$

$

Currently unavailable

29

Toro 294201

Rod Assy., Conn.

Note: For Connecting Rod with .020 undersize Crankpin Bore-order No. 296079.

$

$

Currently unavailable

31

Toro 222282

DISCONTINUED

$

$

Not available

32

Toro 92296

Screw, Conn.Rod

$

$

Currently unavailable

33

Toro 296676

Valve Exhaust

$

$

Currently unavailable

34

Toro 296677

Valve Intake

$

$

Currently unavailable

35

Toro 260552

Spring-Valve

$

$

Currently unavailable

36

Toro 26478

1531A GIL 3 1/2HP T

$3.23

$

Usually ships in 3-6 days

0

37

Toro 223150

Guard-Flywheel

$

$

Currently unavailable

40

Toro 93312

Gear-Cam

$

$

Currently unavailable

45

Toro 230173

Tappet-Valve

$

$

Not available

46

Toro 394800

Gear-Cam

$

$

Currently unavailable

47

Toro 294652

Oil Slinger Gear Bracket

$

$

Currently unavailable

52

Toro 270345

Gasket-Intake Elbow

Note: Indicates items included in Gasket Set part no. 298989.

$

$

Currently unavailable

54

Toro 93485

Screw Intake Elbow Mtg.

$

$

Currently unavailable

65

Toro 93587

Screw-Starter Mounting

$

$

Currently unavailable

74

Toro 93490

Screw

$

$

Currently unavailable

188

Toro 93585

Screw-Sem

$

$

Currently unavailable

200

Toro 68388

Blade Governor

$

$

Currently unavailable

265

Toro 22372

Clamp-Casing

$

$

Currently unavailable

267

Toro 93469

Screw

$

$

Currently unavailable

300

Toro 394569

Muffler-Exhaust

$

$

Currently unavailable

304

Toro 223188

Housing-Blower

$

$

Currently unavailable

305

Toro 93559

Screw

$

$

Currently unavailable

306

Toro 221805

Shield Cylinder

$

$

Not available

307

Toro 93490

Screw

$

$

Currently unavailable

319

Toro 395488

Armature-Magneto

$

$

Currently unavailable

324

Toro 223006

Screen-Rotating

$

$

Currently unavailable

331

Toro 223047

Washer-Spring

$

$

Currently unavailable

332

Toro 92284

Nut

$

$

Currently unavailable

333

Toro 395489

Armature-Group

$

$

Currently unavailable

334

Toro 93381

Screw

$

$

Currently unavailable

335

Toro 93435

Screw-Armature Governor Blade

$

$

Currently unavailable

337

Toro 293918

Plug-Spark

$

$

Currently unavailable

358

Toro 298989

Gasket Set

$

$

Currently unavailable

363

Toro 19069

Puller-Flywheel

$

$

Currently unavailable

383

Toro 89838

Wrench-Plug, Spark

$

$

Currently unavailable

508

Toro 93158

Screw

$

$

Currently unavailable

524

Toro 271485

Seal-O-Ring

$

$

Currently unavailable

625

Toro 298775

Tube Intake

$

$

Currently unavailable

635

Toro 66538

Boot-Plug, Spark

$

$

Currently unavailable

655

Toro 222057

Anchor-Spring

$

$

Currently unavailable

676

Toro 222522

Deflector-Exhaust

$

$

Currently unavailable

677

Toro 93705

Screw

$

$

Currently unavailable

764

Toro 396082

Starter Assy.-Vertical Pull

$

$

Currently unavailable

765

Toro 395914

Housing-Vertical Pull Starter

$

$

Currently unavailable

766

Toro 280022

Duct Body

$

$

Currently unavailable

767

Toro 231048

Pin-Small Rope Pulley

$

$

Currently unavailable

768

Toro 299948

Pulley and Gear Assy.

$

$

Currently unavailable

769

Toro 66734

Rope-Starter (48.6")

$

$

Currently unavailable

771

Toro 299961

Clip-Starter

$

$

Currently unavailable

774

Toro 280121

Insert-Starter Handle

$

$

Currently unavailable

775

Toro 280036

Grip-Starter Rope

$

$

Currently unavailable

776

Toro 222049

Guide Rope

$

$

Currently unavailable

777

Toro 390066

Spring-Starter

$

$

Currently unavailable

778

Toro 280021

Cover-Starter

$

$

Currently unavailable

851

Toro 221798

Terminal-Cable

$

$

Currently unavailable

869

Toro 210879

Seat-Intake Valve

$

$

Currently unavailable

870

Toro 211291

Seat-Exhaust Valve

Note: For installation see Repair Manual.

$

$

Currently unavailable

871

Toro 63709

Bushing-Guide

$

$

Currently unavailable

897

Toro 394970

Trigger Coil

$

$

Currently unavailable
