20742 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) Housing Assembly Parts Diagram

Walk-Behind Mower

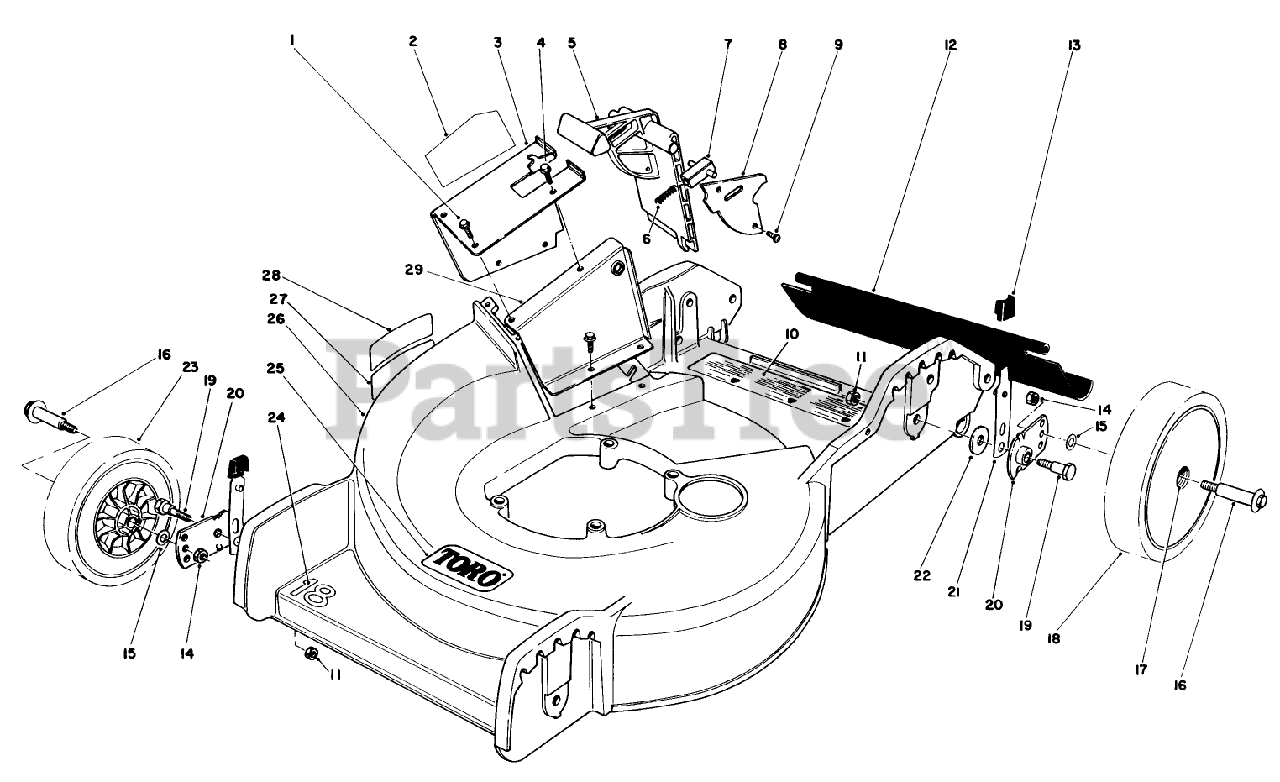

Housing Assembly Parts Diagram

  • Title

1

Toro 12-3270

SCREW

$3.99

$

In Stock, Qty 9

0

2

Toro 49-8530

See Supercession: 13-5839
(Superseded to 13-5839)

$

$

Not available

3

Toro 11-6559

See Supercession: 13-5839
(Superseded to 13-5839)

$

$

Not available

4

Toro 12-5450

SCREW

$10.99

$

Usually ships in 3-6 days

0

5

Toro 33-0410

See Supercession: 33-0412
(Superseded to 33-0412)

$

$

Not available

6

Toro 33-0450

SPRING-COMPRESSION, LATCH

$

$

Not available

7

Toro 47-5550

See Supercession: 47-5551
(Superseded to 47-5551)

$

$

Not available

8

Toro 33-0440

See Supercession: 33-0441
(Superseded to 33-0441)

$

$

Not available

9

Toro 32144-32

SCREW

$2.99

$

Usually ships in 3-6 days

0

10

Toro 46-9260

DISCONTINUED

$

$

Not available

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 33-2380

SHIELD - TRAILING

$76.99

$

Usually ships in 3-6 days

0

13

Toro 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 12

0

14

Toro 32146-6

See Supercession: 3296-6
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 10

0

15

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 10

0

16

Toro 27-6230

BOLT-WHEEL

$8.99

$

In Stock, only 2 left!

0

17

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

18

Toro 34-0390

See Supercession: 27-6200
(Superseded to 27-6200)

$

$

Not available

19

Toro 28-8880

PIVOT SCREW

$10.99

$

In Stock, only 2 left!

0

20

Toro 33-0400

PIVOT ARM ASSY

$

$

Not available

21

Toro 25-8000

SPRING ARM ASM

$

$

Not available

22

Toro 33-0390

PIVOT WASHER

$4.49

$

In Stock, only 2 left!

0

23

Toro 34-0380

DISCONTINUED
(Superseded to 27-6210)

$

$

Not available

24

Toro 33-0500

DISCONTINUED

$

$

Not available

25

Toro 44-0510

See Supercession: 70-2200
(Superseded to 70-2200)

$5.99

$

In Stock, only 2 left!

0

26

Toro 11-4059

DISCONTINUED

$

$

Not available

27

Toro 46-9320

DISCONTINUED

$

$

Not available

28

Toro 46-7370

STEP PAD DECAL

$28.99

$

Usually ships in 3-6 days

0

29

Toro 49-8030

DISCONTINUED
(Superseded to 49-8030-01)

$

$

Not available
