20745 C - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1986) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

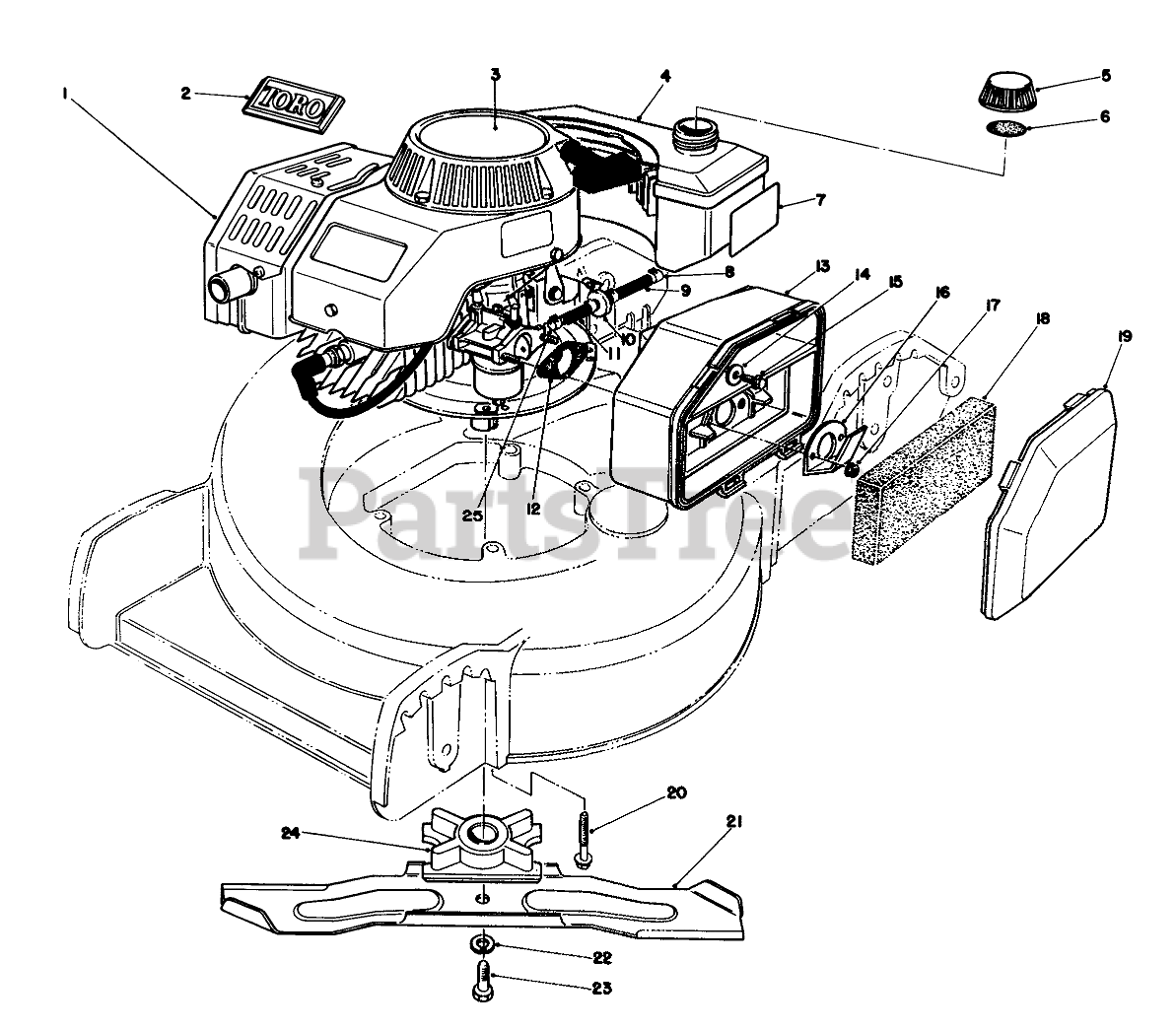

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 59257

Engine
(Superseded to 12-8099)
Usually ships same day

Not available

$

$

2

Toro Part# 46-8290

TORO LOGO PLT
(Superseded to 98-3206)
Usually ships in 1 day

$

$1.59

0

3

Toro Part# 57-3110

DECAL- 2 CYC RECOIL
Usually ships in 5 to 8 days

$

$12.48

0

4

Toro Part# 81-0041

Gas Tank Assembly
(Superseded to 99-5264)
Usually ships same day

Not available

$

$

5

Toro Part# 42-0681

Gas Cap Assembly (Incl. Ref. #6)
Usually ships in 1 day

$

$33.24

0

6

Toro Part# 20-4620

GAS CAP GASKET
Usually ships in 5 to 8 days

$

$7.11

0

7

Toro Part# 40-2440

Decal-Maintenance
Usually ships same day

Not available

$

$

8

Toro Part# 2412-95

CLAMP-FUEL LINE
Usually ships in 1 day

$

$1.11

0

9

Toro Part# 51-3216

HOSE-FUEL
Usually ships in 1 day

$

$3.28

0

10

Toro Part# 56-6360

FILTER-FUEL
Usually ships in 1 day

$

$6.14

0

11

Toro Part# 51-3215

HOSE-FUEL
Usually ships in 5 to 8 days

$

$2.93

0

12

Toro Part# 81-0090

GASKET-AIR CLEANER
Usually ships in 1 day

$

$5.58

0

13

Toro Part# 81-0110

AIR CLEANER
Usually ships in 5 to 8 days

$

$49.29

0

14

Toro Part# 3256-16

WASHER-FLAT
Usually ships in 1 day

$

$0.44

0

15
Usually ships in 5 to 8 days

$

$1.54

0

16

Toro Part# 81-0140

SPIT BACK DEFLECTOR
Usually ships in 5 to 8 days

$

$13.22

0

17

Toro Part# 49-7810

NUT-LOCK
(Superseded to 33023-00)
Usually ships in 5 to 8 days

$

$0.62

0

18
Usually ships in 1 day

$

$6.70

0

19

Toro Part# 81-0120

AIR CLEANER COVER
Usually ships same day

Not available

$

$

20

Toro Part# 3234-24

SCREW-HHF
Usually ships in 1 day

$

$3.12

0

21

Toro Part# 33-0490

Blade
(Superseded to 33-0490-03)
Usually ships in 1 day

$

$31.29

0

22

Toro Part# 3253-22

WASHER-LOCK
Usually ships in 1 day

$

$1.88

0

23
Usually ships in 1 day

$

$5.58

0

24

Toro Part# 49-7900

BLADE RETAINER
Usually ships in 1 day

$

$51.70

0

25

Toro Part# 2412-80

CLAMP-HOSE
(Superseded to 2412-146)
Usually ships in 5 to 8 days

$

$2.10

0
