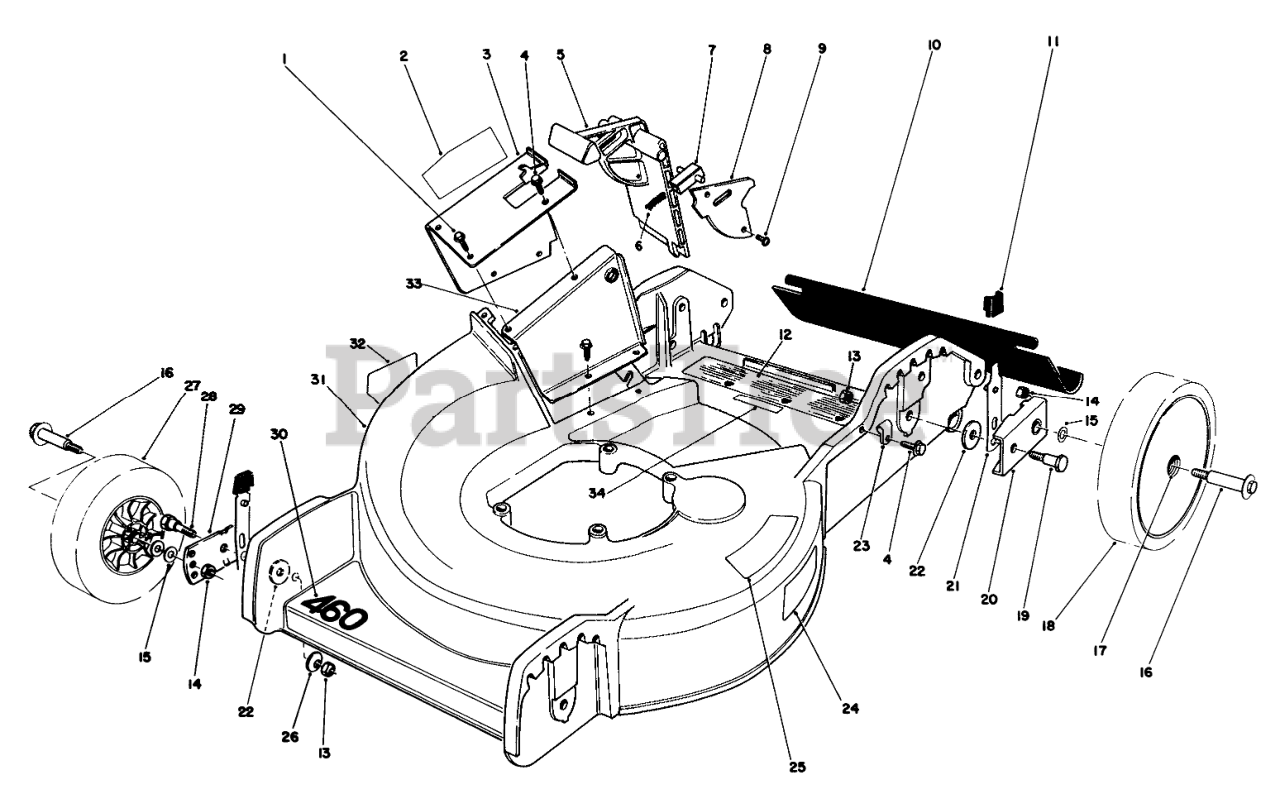

20745 C - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1986) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

HOUSING ASSEMBLY Parts Diagram

  • Title
Usually ships in 1 day

$

$2.90

0

2

Toro Part# 46-8340

OBS DANGER DECAL FR/E/GER
Usually ships same day

Not available

$

$

3

Toro Part# 11-8409

Tunnel-Outer (Incl. Ref. #2)
(Superseded to 13-2149)
Usually ships same day

Not available

$

$

Usually ships in 1 day

$

$7.03

0

5

Toro Part# 33-0410

Door Mulching
(Superseded to 33-0412)
Usually ships same day

Not available

$

$

6

Toro Part# 33-0450

SPRING-COMPRESSION, LATCH
Usually ships in 5 to 8 days

$

$5.91

0

7

Toro Part# 47-5550

Door Latch
(Superseded to 47-5551)
Usually ships same day

Not available

$

$

8

Toro Part# 33-0440

Cover Door
(Superseded to 33-0441)
Usually ships in 5 to 8 days

$

$9.64

0

Usually ships in 5 to 8 days

$

$1.99

0

10

Toro Part# 33-2380

SHIELD - TRAILING
Usually ships in 5 to 8 days

$

$48.32

0

11
Usually ships in 1 day

$

$4.46

0

12

Toro Part# 49-8380

DECAL-DANGER
Usually ships same day

Not available

$

$

13

Toro Part# 3296-29

NUT-LOCK, NI
Usually ships in 1 day

$

$2.00

0

14

Toro Part# 52-3620

Nut
(Superseded to 32153-11)
Usually ships in 1 day

$

$3.53

0

15
Usually ships in 1 day

$

$1.38

0

16

Toro Part# 27-6230

BOLT-WHEEL
Usually ships in 1 day

$

$6.59

0

17
Usually ships in 1 day

$

$2.23

0

18

Toro Part# 11-9509

Wheel & Tire Assembly (Incl. Ref. #17)
(Superseded to 51-2751)
Usually ships in 1 day

$

$25.70

0

19

Toro Part# 44-5271

PIVOT SCREW
Usually ships in 1 day

$

$7.65

0

20

Toro Part# 47-2941

PIVOT ARM ASM
Usually ships in 5 to 8 days

$

$19.07

0

21

Toro Part# 25-8000

SPRING ARM ASM
Usually ships in 1 day

$

$54.32

0

22

Toro Part# 33-0390

PIVOT WASHER
Usually ships in 1 day

$

$2.64

0

23

Toro Part# 2412-83

CLAMP-CABLE
Usually ships in 5 to 8 days

$

$9.76

0

24

Toro Part# 46-9330

Decal-Place Foot Here
Usually ships same day

Not available

$

$

25

Toro Part# 46-7370

STEP PAD DECAL
Usually ships in 5 to 8 days

$

$19.15

0

26

Toro Part# 3290-456

WASHER-BELLEVILLE
Usually ships in 1 day

$

$2.23

0

27

Toro Part# 46-1113

Wheel & Tire Assembly (Inc. Ref. #17)
Usually ships same day

Not available

$

$

28

Toro Part# 3-0655

5/16-18 PIVOT SCREW
Usually ships in 1 day

$

$11.90

0

29

Toro Part# 33-0400

PIVOT ARM ASSY
Usually ships in 5 to 8 days

$

$26.93

0

30

Toro Part# 46-8330

Decal-460
Usually ships same day

Not available

$

$

31

Toro Part# 12-1089

HSG & CARTON
Usually ships in 5 to 8 days

$

$776.53

0

32

Toro Part# 56-6270

DECAL-DANGER
Usually ships in 5 to 8 days

$

$6.59

0

33

Toro Part# 49-8030

Tunnel-Inner
(Superseded to 49-8030-01)
Usually ships same day

Not available

$

$

Usually ships same day

Not available

$

$
