20745 C - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1987) CARBURETOR ASSEMBLY (ENGINE NO. 47PG6) Parts Diagram

Walk-Behind Mower

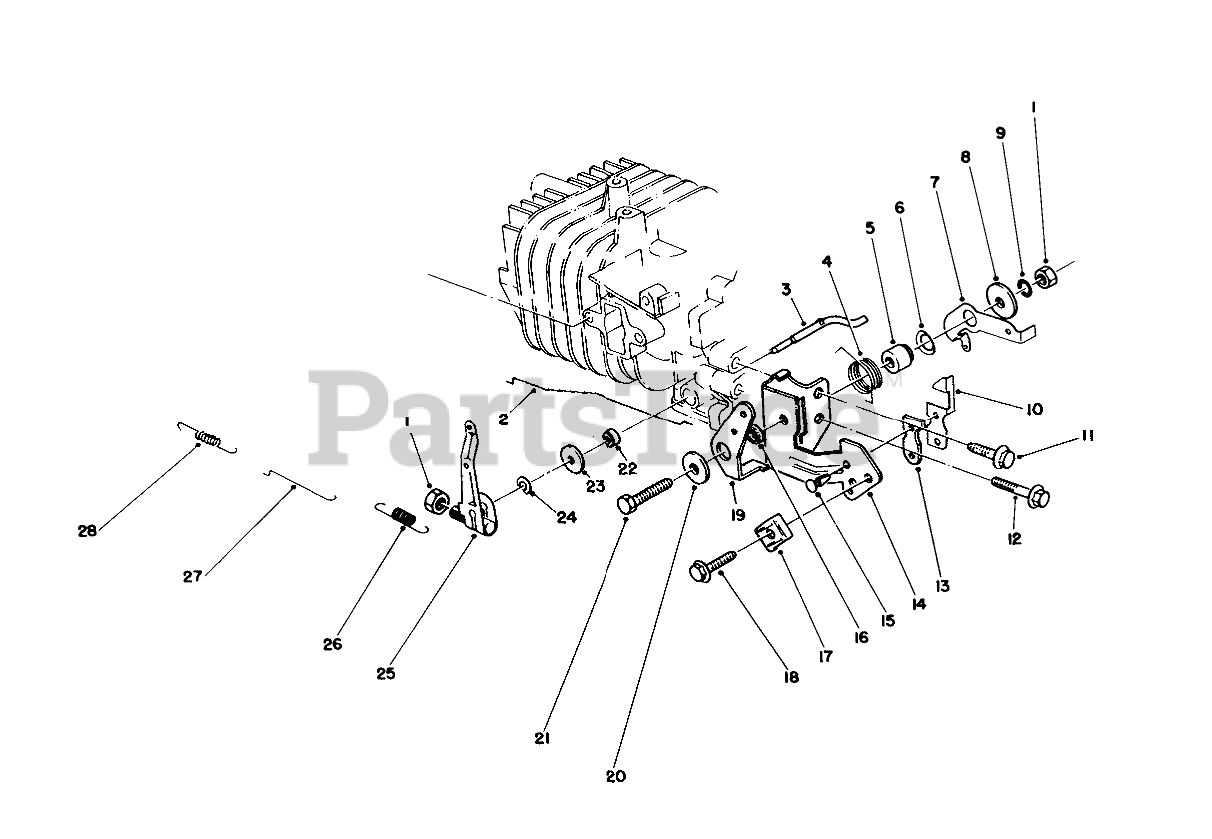

CARBURETOR ASSEMBLY (ENGINE NO. 47PG6) Parts Diagram

  • Title

1

Toro 81-0900

NUT

$3.49

$

In Stock, only 2 left!

0

2

Toro 81-1720

CHOKE ROD

$

$

Not available

3

Toro 81-0840

Shaft-Govemor

$

$

Not available

4

Toro 81-2460

SPRING-CHOKE LEVER

$

$

Not available

5

Toro 81-1770

Gov Lever Spacer
(Superseded to 81-5780)

$13.99

$

Usually ships in 3-6 days

0

6

Toro 81-1820

Washer-Gov. Spring Lever

$

$

Not available

7

Toro 81-2850

LEVER-SPRING, GOVERNOR

$24.99

$

Usually ships in 3-6 days

0

8

Toro 81-1750

WASHER

$1.99

$

In Stock, Qty 5

0

9

Toro 81-1450

LOCKWASHER

$3.49

$

In Stock, only 2 left!

0

10

Toro 81-1840

TERMINAL-KILL SWITCH

$8.99

$

Usually ships in 3-6 days

0

11

Toro 81-1170

BOLT

$9.49

$

Usually ships in 3-6 days

0

12

Toro 81-0540

BOLT

$7.99

$

Usually ships in 3-6 days

0

13

Toro 81-1830

INSULATOR-KILL SWITCH

$5.99

$

Usually ships in 3-6 days

0

14

Toro 81-2420

BRACKET-THROTTLE, CONTROL

$

$

Not available

15

Toro 81-1850

KILL SWITCH RIVET

$

$

Not available

16

Toro 81-2470

SPACER-CHOKE LEVER

$2.49

$

In Stock, Qty 5

0

17

Toro 81-2430

CLAMP

$3.99

$

Usually ships in 3-6 days

0

18

Toro 50-0130

BOLT

$5.49

$

Usually ships in 3-6 days

0

19

Toro 81-1710

LEVER-CONTROL, CHOKE

$

$

Not available

20

Toro 50-0760

WASHER

$

$

Not available

21

Toro 81-1730

BOLT

$3.99

$

In Stock, only 2 left!

0

22

Toro 81-0850

SEAL-OIL

$14.99

$

Usually ships in 3-6 days

0

23

Toro 81-0860

WASHER

$

$

Not available

24

Toro 81-0870

E-RING

$

$

Not available

25

Toro 81-2840

GOVERNOR ARM

$

$

Not available

26

Toro 81-2830

SPRING-GOVERNOR

$

$

Not available

27

Toro 81-0910

ROD-CARBURETOR

$

$

Not available

28

Toro 81-0920

SPRING

$9.99

$

In Stock, only 1 left!

0

1

Toro 81-2240

CARB STUD BOLT

$

$

Not available

2

Toro 81-0090

GASKET-AIR CLEANER

$7.99

$

In Stock, Qty 10

0

3

Toro 81-4950

CHOKE VALVE

$

$

Not available

4

Toro 81-0230

SPRING

$

$

Not available

5

Toro 81-0220

BUSHING

$

$

Not available

6

Toro 81-2160

SCREW

$3.99

$

Usually ships in 3-6 days

0

7

Toro 81-1950

SHAFT-CHOKE

$

$

Not available

8

Toro 81-0250

SHAFT

$92.99

$

Usually ships in 3-6 days

0

9

Toro 81-0260

PLATE

$23.99

$

Usually ships in 3-6 days

0

10

Toro 81-0270

Screw-Throttle
(Superseded to 81-2160)

$3.99

$

Usually ships in 3-6 days

0

11

Toro 81-1030

PILOT JET

$26.99

$

Usually ships in 3-6 days

0

12

Toro 81-2320

GASKET

$6.49

$

In Stock, only 3 left!

0

13

Toro 81-2330

SHIELD

$

$

Not available

14

Toro 81-2190

INSULATOR

$15.99

$

Usually ships in 3-6 days

0

15

Toro 81-0780

GASKET-CARB

$5.49

$

In Stock, Qty 11

0

16

Toro 81-0980

Pin
(Superseded to 81-2600)

$6.99

$

Usually ships in 3-6 days

0

17

Toro 81-4910

NEEDLE

$

$

Not available

18

Toro 81-1940

MAIN JET (76.3)

$

$

Not available

Toro 81-2340

JET-HIGH ALTITUDE

Note: Not illustrated

$16.99

$

Usually ships in 3-6 days

0

Toro 81-4580

Piston (58 mm)

Note: Not illustrated

$

$

Not available

19

Toro 81-0970

FLOAT

$48.99

$

Usually ships in 3-6 days

0

20

Toro 81-1010

GASKET

$15.99

$

In Stock, only 1 left!

0

21

Toro 81-1610

Bowl-Float
(Superseded to 81-5660)

$57.99

$

Usually ships in 3-6 days

0

22

Toro 81-1020

GASKET

$

$

Not available

23

Toro 81-1000

Bolt
(Superseded to 81-5670)

$11.99

$

Usually ships in 3-6 days

0

Toro 12-6379

Carburetor Kit (Incl. Ref. #2, 15, 17, 20 & 22)

Note: Not illustrated

$

$

Not available

Toro 81-4900

CARB

Note: Not illustrated

$

$

Not available
