20745 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) Engine Assembly Parts Diagram

Walk-Behind Mower

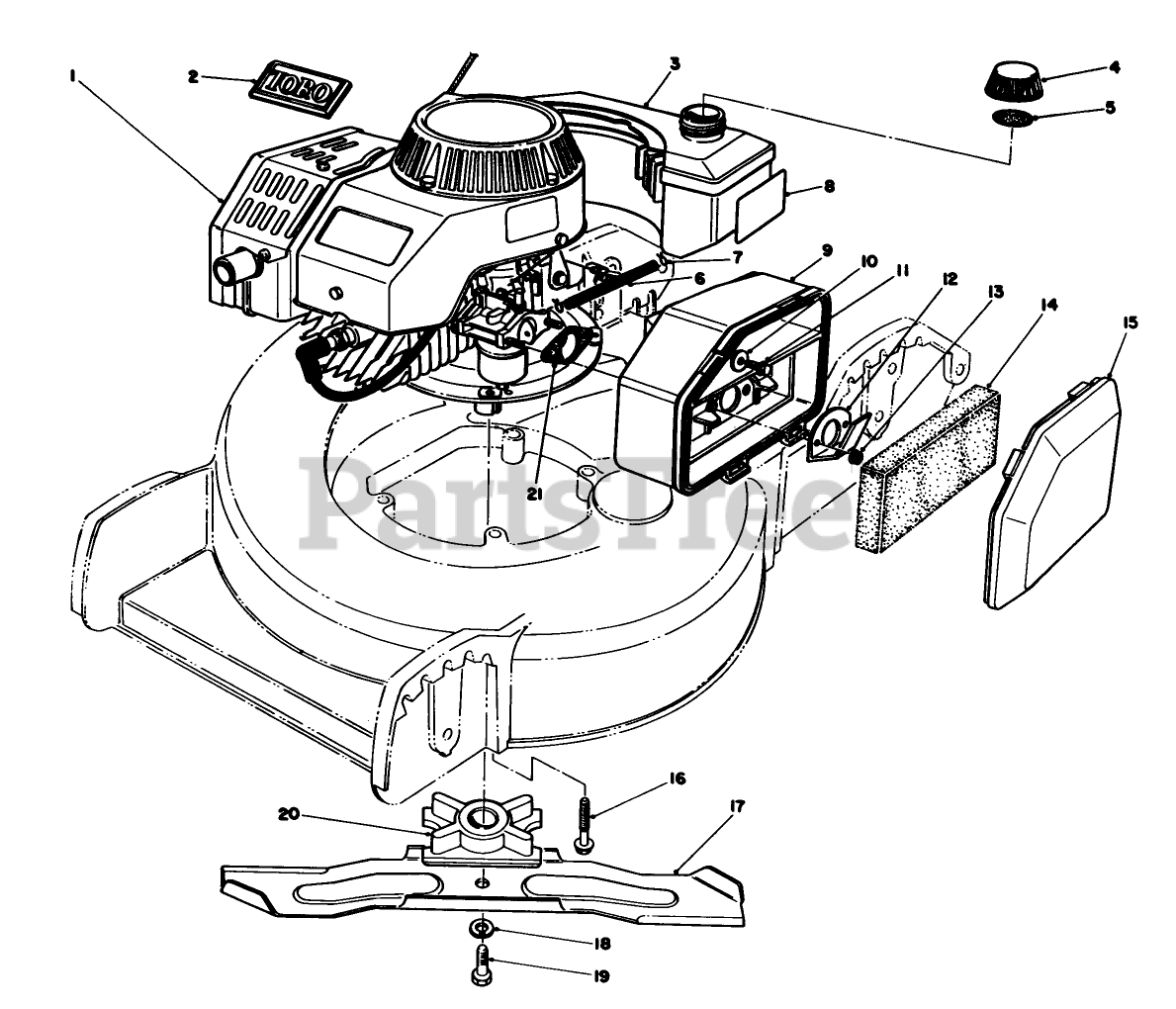

Engine Assembly Parts Diagram

  • Title

1

Toro 59255

See Supercession: 12-8099
(Superseded to 12-8099)

$

$

Not available

2

Toro 46-8290

See Supercession: 98-3206
(Superseded to 98-3206)

$2.49

$

In Stock, only 2 left!

0

3

Toro 81-0040

DISCONTINUED
(Superseded to 99-5263)

$

$

Not available

4

Toro 42-0681

GAS CAP ASM 50:1

$47.99

$

Usually ships in 3-6 days

0

5

Toro 20-4620

GAS CAP GASKET

$11.99

$

Usually ships in 3-6 days

0

6

Toro 81-2310

FUEL LINE

$3.99

$

Usually ships in 3-6 days

0

7

Toro 2412-80

CLAMP-HOSE

$5.49

$

In Stock, only 2 left!

0

8

Toro 40-2440

DISCONTINUED

$

$

Not available

9

Toro 81-0110

AIR CLEANER

$

$

Not available

10

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

11

Toro 51-2690

SCREW-HH

$2.49

$

In Stock, only 4 left!

0

12

Toro 81-0140

SPIT BACK DEFLECTOR

$

$

Not available

13

Toro 49-7810

See Supercession: 33023-00
(Superseded to 33023-00)

$0.99

$

Usually ships in 3-6 days

0

14

Toro 81-0100

FILTER

$9.99

$

In Stock, only 4 left!

0

15

Toro 81-0120

DISCONTINUED

$

$

Not available

16

Toro 3234-18

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

17

Toro 33-0490

See Supercession: 33-0490-03
(Superseded to 33-0490-03)

$45.99

$

Usually ships in 3-6 days

0

18

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

19

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 12

0

20

Toro 49-7900

BLADE RETAINER

$80.99

$

In Stock, only 2 left!

0

21

Toro 81-0090

GASKET-AIR CLEANER

$8.99

$

In Stock, only 3 left!

0
