20747 C - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) Engine Assembly (model No. 47pg6) Parts Diagram

Walk-Behind Mower

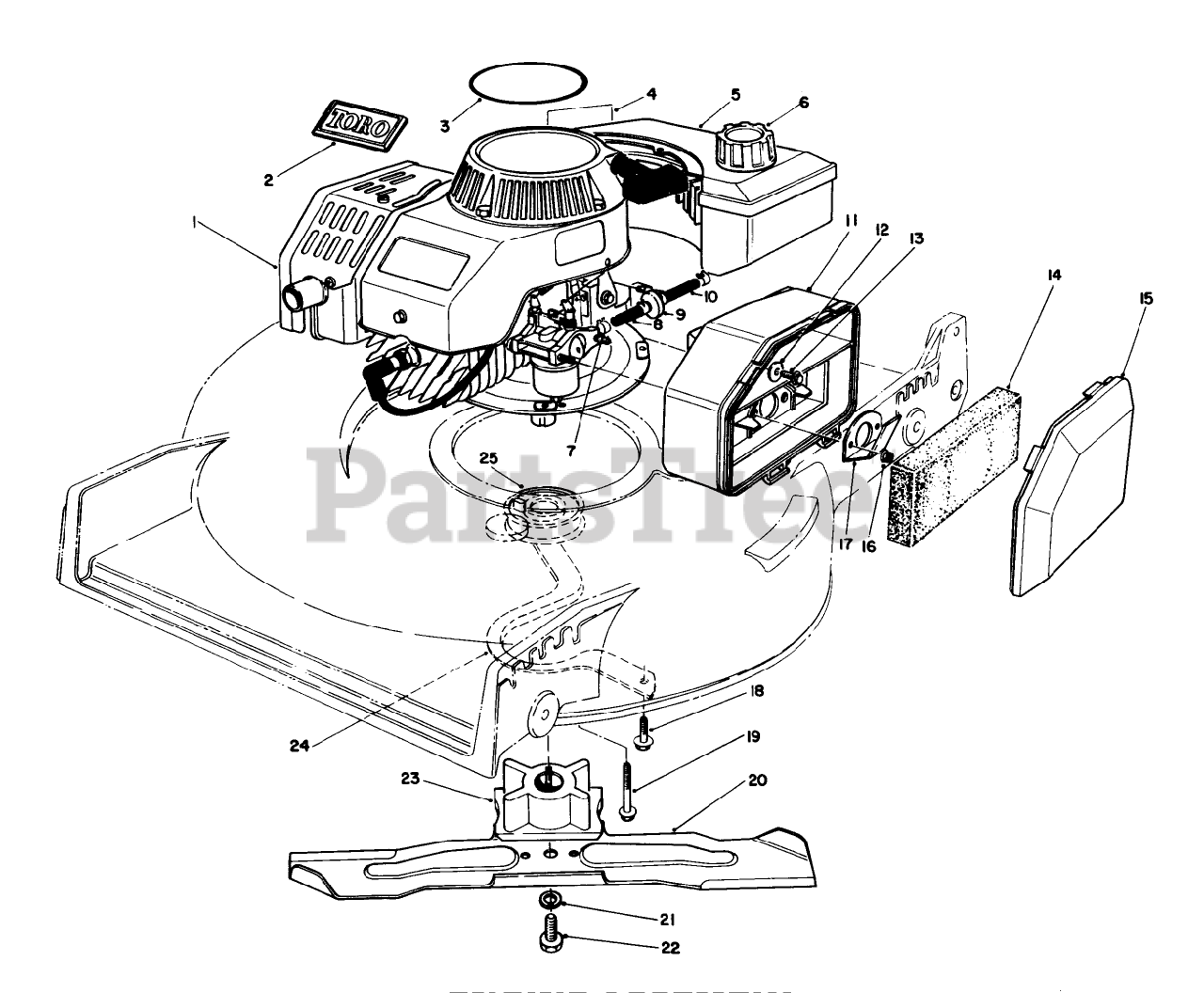

Engine Assembly (model No. 47pg6) Parts Diagram

  • Title

1

Engine (Complete)

$

$

Not available

2

Toro 46-8290

See Supercession: 98-3206
(Superseded to 98-3206)

$2.49

$

In Stock, only 2 left!

0

3

Toro 57-3110

DECAL- 2 CYC RECOIL

$

$

Not available

4

Toro 40-2440

DISCONTINUED

$

$

Not available

5

Toro 81-0042

See Supercession: 99-5263
(Superseded to 99-5263)

$

$

Not available

6

Toro 55-3575

GAS CAP ASM

$19.99

$

In Stock, only 2 left!

0

7

Toro 2412-95

CLAMP-FUEL LINE

$1.99

$

In Stock, Qty 6

0

8

Toro 51-3216

HOSE-FUEL

$5.99

$

In Stock, only 3 left!

0

9

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, only 4 left!

0

10

Toro 51-3215

HOSE-FUEL

$3.99

$

Usually ships in 3-6 days

0

11

Toro 81-0110

AIR CLEANER

$

$

Not available

12

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

13

Toro 51-2690

SCREW-HH

$2.49

$

In Stock, only 4 left!

0

14

Toro 81-0100

FILTER

$9.99

$

In Stock, only 4 left!

0

15

Toro 81-0120

DISCONTINUED

$

$

Not available

16

Toro 49-7810

See Supercession: 33023-00
(Superseded to 33023-00)

$0.99

$

Usually ships in 3-6 days

0

17

Toro 81-0140

SPIT BACK DEFLECTOR

$

$

Not available

18

Toro 11-9760

See Supercession: 49-2040
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

19

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 14

0

20

Toro 42-1000

See Supercession: 107-4276-03
(Superseded to 107-4276-03)

$29.99

$

In Stock, only 4 left!

0

21

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

22

Toro 26-0670

SCREW-BLADE

$

$

Not available

23

Toro 62-7540

BLADE RETAINER

$107.99

$

Usually ships in 3-6 days

0

24

Toro 40-5720

DISCONTINUED

$

$

Not available

25

Toro 62-7550

PULLEY-DRIVE, ZONE START

$

$

Not available

Toro 46-1040

DISCONTINUED

$

$

Not available

Toro 46-1041

WRENCH KEY

$13.99

$

Usually ships in 3-6 days

0
