2075 (2075 C, 20750 C) - Poulan Chainsaw, Type 3 (2007-07) Engine Assembly Type 1, 2, 3, 4 Parts Diagram

Chainsaw, Type 3

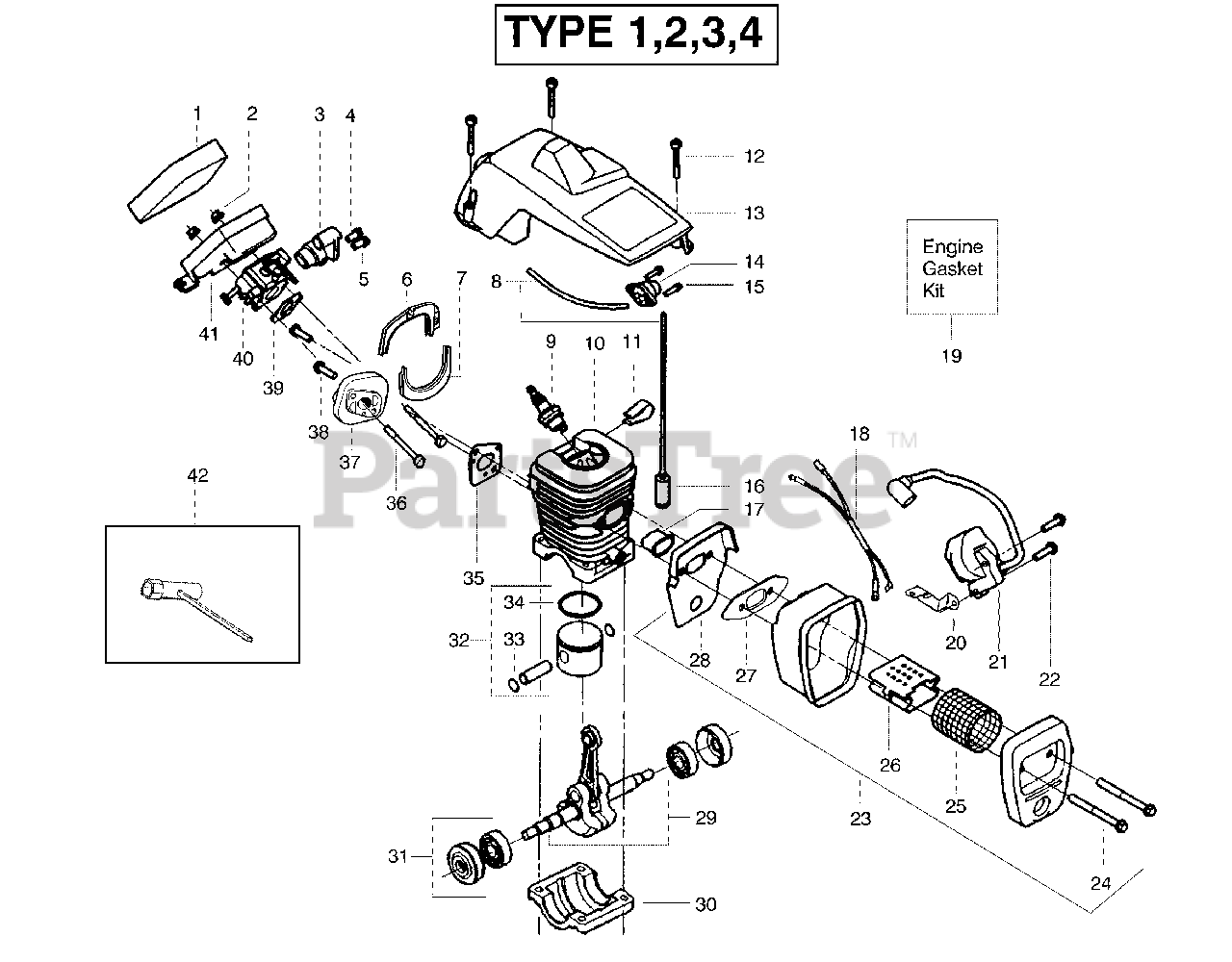

Engine Assembly Type 1, 2, 3, 4 Parts Diagram

  • Title

1

Poulan 530037793

Foam - Air Filter

$4.99

$

In Stock, Qty 20+

0

2

Poulan 530016101

Nut

$6.49

$

In Stock, Qty 8

0

3

Poulan 530049244

Grommet-Carb Adjust

$3.99

$

In Stock, only 3 left!

0

4

Poulan 530038479

Limiter Cap-High (red)

$3.99

$

Usually ships in 3-10 days

0

5

Poulan 530038478

Limiter Cap-Low(blue)

$3.99

$

In Stock, Qty 19

0

6

Seal-Carb Adapter

Note: Note: Your chain saw may have either a one or two piece seal.

$

$

Not available

7

Seal-Carb Adapter

Note: Note: Your chain saw may have either a one or two piece seal.

$

$

Not available

8

Poulan 530069247

Kit-Fuel Line (Small)

$6.49

$

In Stock, Qty 20+

0

9

Poulan 952030150

Spark Plug (RCJ-7Y)

$3.49

$

In Stock, Qty 20+

0

10

Poulan 530069606

Kit-Cylinder
(Superseded to 530071252)

$34.61

$

Usually ships in 3-10 days

0

11

Poulan 530016136

Clip-High Tension Lead

$3.99

$

Usually ships in 3-10 days

0

12

Poulan 530016153

Screw

$6.49

$

In Stock, Qty 15

0

13

Poulan 530071310

Shield-Cylinder 2075

$

$

Not available

13

Poulan 530055187

Shield-Cylinder 2075c

$

$

Not available

13

Poulan 530056047

Shield-Cylinder 2075oc

$21.99

$

Usually ships in 3-10 days

0

14

Poulan 530047213

Assy - Air Purge
(Superseded to 530071835)

$8.99

$

In Stock, Qty 20+

0

15

Poulan 530015780

Screw

$6.49

$

In Stock, only 3 left!

0

16

Poulan 530095646

Assy-Fuel Pick-up

$4.99

$

In Stock, Qty 20+

0

17

Poulan 530037652

Insulator-Heat

$

$

Not available

18

Poulan 530052296

Assy. -Wire Harness

$

$

Not available

19

Poulan 530069608

Kit-Engine Gasket

Note: Incl. 27, 35 & 39

$8.99

$

In Stock, Qty 20+

0

20

Poulan 530047442

Strap-Ground

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 530052277

Module- Ignition

$42.99

$

Usually ships in 3-10 days

0

22

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

23

Poulan 530047207

Assy-Muffler
(Superseded to 530071904)

Note: Incl. 24,25,26,27,28

$

$

Not available

24

Poulan 530016132

Screw

$6.49

$

In Stock, Qty 10

0

25

Poulan 530036103

Screen-Spark

$

$

Not available

26

Poulan 530037813

Diffuser-Muffler

$4.99

$

In Stock, only 2 left!

0

27

Poulan 530069608

Gasket-Muffler

$8.99

$

In Stock, Qty 20+

0

28

Poulan 530049870

Backplate-Muffler

$6.49

$

Usually ships in 3-10 days

0

29

Poulan 530047062

Assy. - Crankshaft
(Superseded to 545113101)

$72.99

$

Usually ships in 3-10 days

0

30

Poulan 530037935

Cap-Crankcase

$10.99

$

Usually ships in 3-10 days

0

31

Poulan 530056363

Assy.-Seal & Bearing

$18.99

$

In Stock, Qty 7

0

32

Poulan 530069604

Kit-Piston

Note: Incl. 33 & 34

$36.99

$

Usually ships in 3-10 days

0

33

Poulan 530015697

Retainer-Piston Pin

$6.49

$

In Stock, Qty 6

0

34

Poulan 530029805

Ring - Piston

$6.99

$

In Stock, Qty 20+

0

35

Poulan 530069608

Gasket - Carb. Adapter

$8.99

$

In Stock, Qty 20+

0

36

Poulan 530016187

Screw

$6.49

$

In Stock, only 2 left!

0

37

Poulan 530071310

Adapter - Carb. 2075 (Kit)

$

$

Not available

Poulan 530049700

Adapter - Carb. 2075c, 2075oc

$7.49

$

In Stock, only 2 left!

0

38

Poulan 530016386

Screw

$10.99

$

In Stock, Qty 9

0

39

Poulan 530069608

Gasket - Carburetor

$8.99

$

In Stock, Qty 20+

0

40

Poulan 530069703

Kit-Carburetor
(Superseded to 545081885)

Note: incl. 4 & 5

$34.99

$

In Stock, Qty 11

0

41

Poulan 530037804

Housing- Air Filter
(Superseded to 530057480)

$8.99

$

In Stock, only 1 left!

0

42

Poulan 530031163

Wrench - Bar

$9.99

$

In Stock, Qty 17

0

Poulan 530087857

Operator Manual 2075 (Type 1- 4)

Note: Not Shown

$6.49

$

Usually ships in 3-10 days

0

Poulan 530088308

Operator Manual 2075 2075C, 2075OC (Type 5)

Note: Not Shown

$2.99

$

Usually ships in 3-10 days

0

Poulan 530038257

Operator Manual Decal Instruction

Note: Not Shown

$

$

Not available

Poulan 530038486

Operator Manual Decal Stop

Note: Not Shown

$

$

Not available
