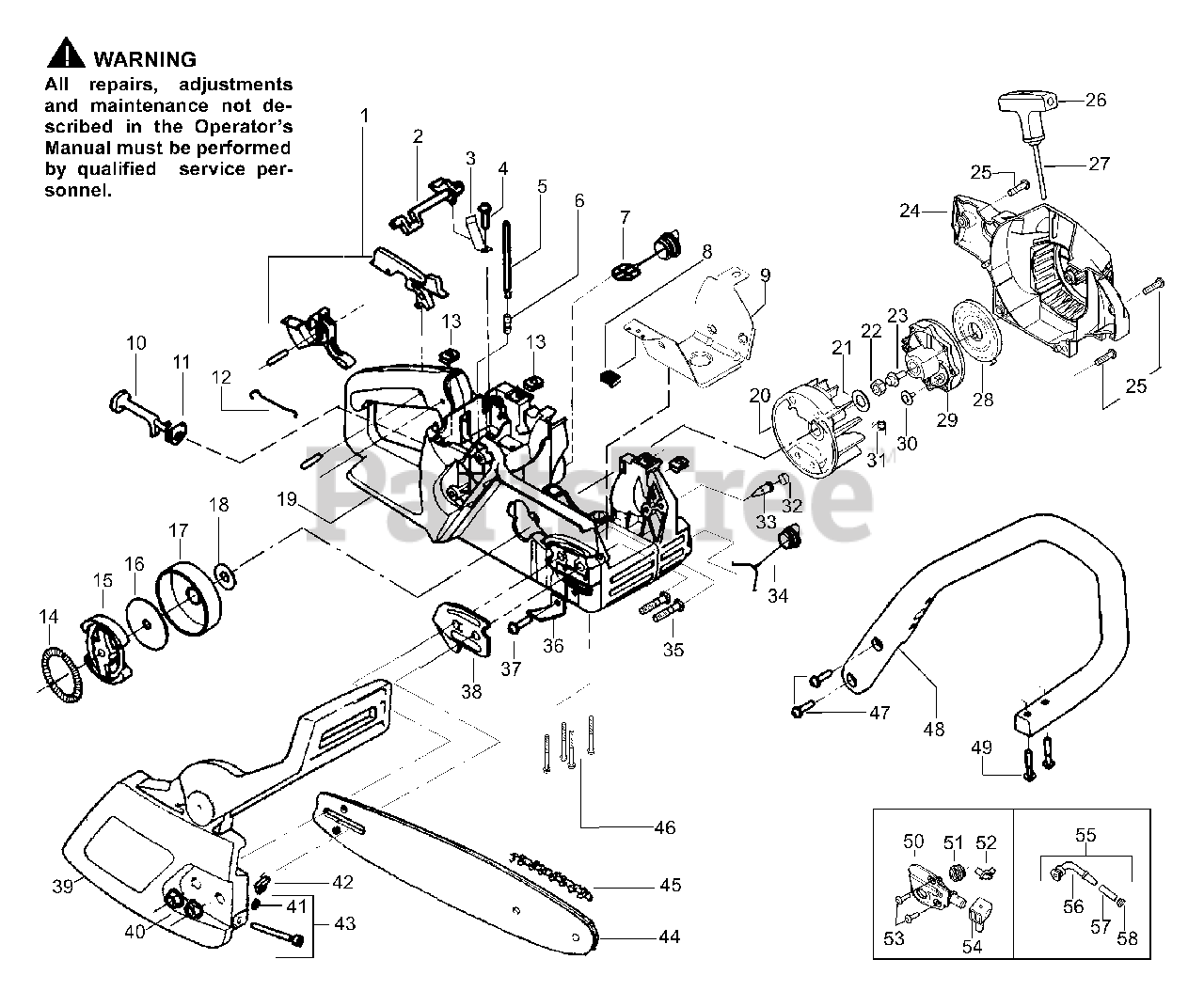

2075 LE - Poulan Chainsaw Handle, Chassis & Bar Assembly Parts Diagram

Chainsaw

Handle, Chassis & Bar Assembly Parts Diagram

  • Title

1

Poulan 530071305

Trigger & Lockout Kit

Note: (Includes Pin)

$7.49

$

Usually ships in 3-10 days

0

2

Poulan 530038227

Switch Lever

$

$

Not available

3

Poulan 530016149

Switch Spring

$

$

Not available

4

Poulan 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

5

Poulan 530069216

Fuel Line Kit (Large)

$6.49

$

In Stock, Qty 20+

0

6

Poulan 530023877

Fitting - Fuel line

$4.99

$

In Stock, Qty 20+

0

7

Poulan 530047192

Fuel Cap Ass'y.
(Superseded to 580940901)

$6.49

$

In Stock, Qty 20+

0

8

Poulan 530055322

Clip - "U"

$2.49

$

Usually ships in 3-10 days

0

9

Poulan 530055183

Shield - Heat

$7.49

$

Usually ships in 3-10 days

0

10

Poulan 530047989

Lever-Choke

$

$

Not available

11

Poulan 530038406

Grommet-Choke lever

$

$

Not available

12

Poulan 530037809

Wire-Throttle

$

$

Not available

13

Poulan 530015922

Nut-Speed

$6.49

$

In Stock, Qty 5

0

14

Poulan 530094188

Spring - Clutch
(Superseded to 530014949)

$13.99

$

In Stock, Qty 19

0

15

Poulan 530014949

Assy.-Clutch

Note: (Incl. 14)

$13.99

$

In Stock, Qty 19

0

16

Poulan 530015611

Washer-Clutch

$6.49

$

In Stock, Qty 20+

0

17

Poulan 530047061

Drum Assy. W/brg.

$17.99

$

In Stock, Qty 11

0

18

Poulan 530015907

Washer - Thrust

$

$

Not available

19

Poulan 530069822

Kit - Chassis Assy.

$

$

Not available

20

Poulan 530039209

Flywheel Ass'y.
(Superseded to 530063575)

$

$

Not available

21

Poulan 530015127

Washer-Flywheel

$6.49

$

Usually ships in 3-10 days

0

22

Poulan 530016134

Nut-Flywheel

$6.49

$

Usually ships in 3-10 days

0

23

Poulan 530015920

Screw

$6.49

$

In Stock, Qty 8

0

24

Poulan 530049334

Fan Housing

$

$

Not available

25

Poulan 530015892

Screw

$6.49

$

In Stock, Qty 20+

0

26

Poulan 530037485

Starter Handle
(Superseded to 530056402)

$6.49

$

In Stock, only 2 left!

0

27

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 20+

0

28

Poulan 530027531

Starter Spring
(Superseded to 545008015)

$6.49

$

In Stock, Qty 17

0

29

Poulan 530037817

Starter Pulley
(Superseded to 545034301)

$

$

Not available

30

Poulan 530016080

Screw

$6.49

$

In Stock, Qty 11

0

31

Poulan 530023817

Spring - Starter Dog

$6.49

$

In Stock, Qty 5

0

32

Poulan 530038264

Plug - Bronze Vent

$6.49

$

In Stock, Qty 6

0

33

Poulan 530026119

Check Valve

$4.49

$

In Stock, Qty 15

0

34

Poulan 530010846

Oil Cap Ass'y.
(Superseded to 530057236)

$

$

Not available

35

Poulan 530016133

Bolt - Bar

$6.49

$

In Stock, only 4 left!

0

36

Poulan 530029850

Chain Catcher

$6.49

$

In Stock, Qty 20+

0

37

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

38

Poulan 530038238

Plate-Bar Mounting

$

$

Not available

39

Poulan 530054735

Assy.-Chain Brake
(Superseded to 545139906)

$

$

Not available

40

Poulan 530015917

Nut-Bar Mounting

$3.99

$

In Stock, Qty 20+

0

41

Poulan 530038593

Retainer-Bar Adjust

$4.99

$

In Stock, Qty 20+

0

42

Poulan 530015826

Pin-Bar Adjust

$4.99

$

In Stock, Qty 20+

0

43

Poulan 530069611

Kit-Bar Adjust

Note: (Incl 41,42)

$4.99

$

In Stock, Qty 20+

0

44

Poulan 952044370

Bar-16"

$

$

Not available

45

Poulan 952051211

Chain-16"
(Superseded to 581562201)

$22.99

$

In Stock, Qty 15

0

46

Poulan 530016132

Screw

$6.49

$

In Stock, Qty 10

0

47

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

48

Poulan 530037799

Front Handle

$

$

Not available

49

Poulan 530015940

Screw

$6.49

$

In Stock, Qty 9

0

50

Poulan 530071259

Kit-Oil Pump

Note: (Incl 50,51,52,54)

$18.99

$

In Stock, only 1 left!

0

51

Poulan 530037820

Gear-Worm Spring

$6.49

$

In Stock, only 4 left!

0

52

Poulan 530049477

Elbow-Oil Pickup

$4.99

$

In Stock, Qty 5

0

53

Poulan 530016064

Screw

$4.99

$

In Stock, Qty 7

0

54

Poulan 530019206

Seal Block

$6.49

$

Usually ships in 3-10 days

0

55

Poulan 530047663

Oil-Pickup Ass'y.

Note: (Incl. 56, 57 & 58)

$4.99

$

In Stock, Qty 8

0

56

Poulan 530038373

Oiler Pickup

$4.99

$

Usually ships in 3-10 days

0

57

Poulan 530037821

Oil Filter
(Superseded to 530056533)

$6.49

$

Usually ships in 3-10 days

0

58

Poulan 530030189

Plug-Oil Filter
(Superseded to 530056533)

$6.49

$

Usually ships in 3-10 days

0
