20752 - Toro Walk-Behind Mower (SN: 002000001 - 002999999) (1982) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

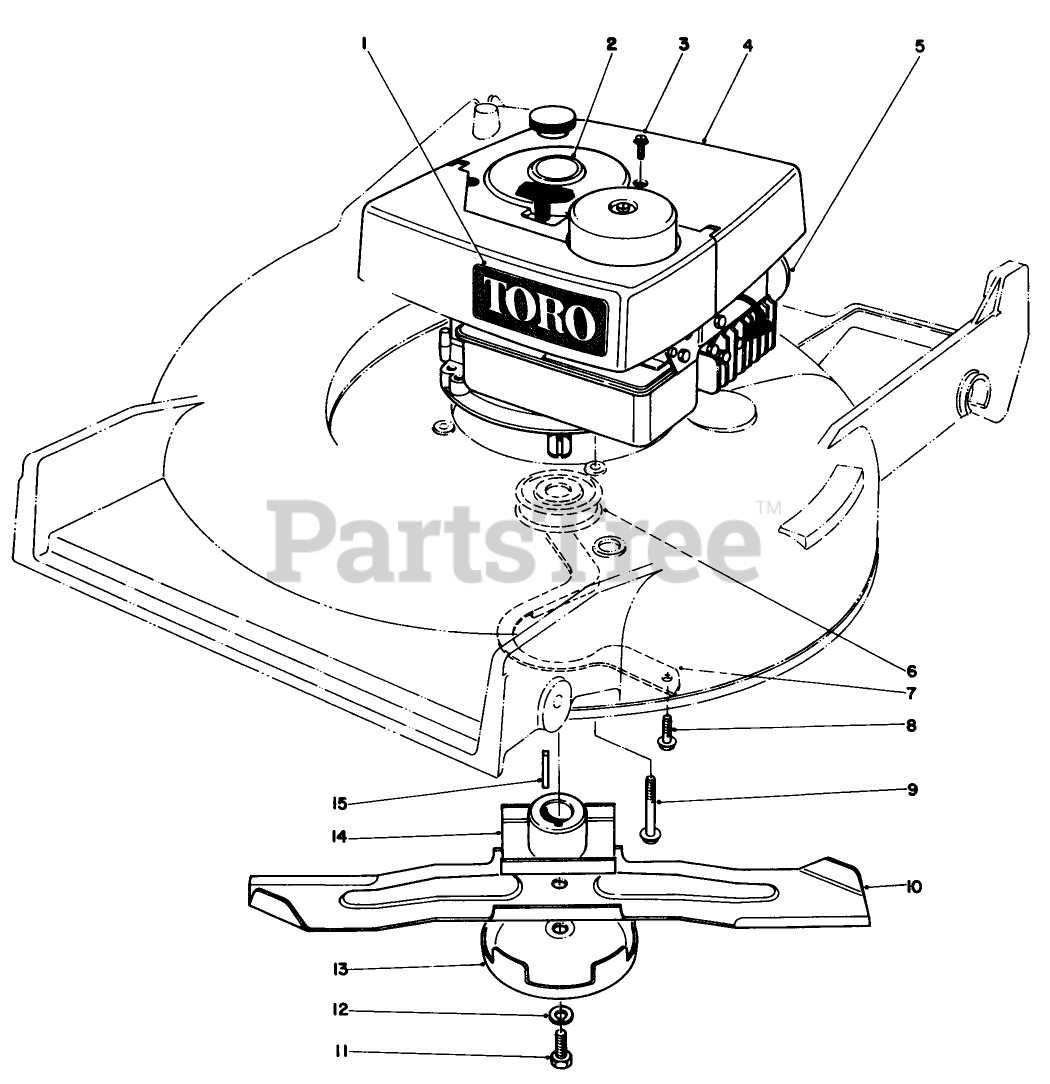

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 44-0510

Decal Tow
(Superseded to 70-2200)
Usually ships in 5 to 8 days

$

$5.22

0

2

Toro Part# 38-0790

Decal-Shroud
Usually ships same day

Not available

$

$

3

Toro Part# 32144-60

TAPPING SCREW
Usually ships same day

Not available

$

$

Usually ships same day

Not available

$

$

Usually ships same day

Currently unavailable

$

$

6

Toro Part# 21-5580

DRIVER PULLEY
Usually ships same day

Not available

$

$

7

Toro Part# 39-1840

BELT GUIDE
Usually ships same day

Not available

$

$

8

Toro Part# 11-9760

Screw
(Superseded to 49-2040)
Usually ships in 1 day

$

$1.67

0

9

Toro Part# 11-0590

SCREW-HWHTF
(Superseded to 32144-102)
Usually ships in 1 day

$

$2.56

0

10

Toro Part# 26-0880

Blade
(Superseded to 107-4276-03)
Usually ships in 1 day

$

$26.82

0

11

Toro Part# 26-0670

SCREW-BLADE
Usually ships in 1 day

$

$4.08

0

12

Toro Part# 3253-22

WASHER-LOCK
Usually ships in 1 day

$

$1.88

0

13

Toro Part# 8-4240

AntiScalp Cup
(Superseded to 80-2770)
Usually ships in 1 day

$

$13.00

0

14

Toro Part# 26-0770

Blade Retainer
(Superseded to 46-3490)
Usually ships in 1 day

$

$79.05

0

15

Toro Part# 27-6300

KEY-SQUARE
Usually ships in 1 day

$

$4.75

0
