20752 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1978) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

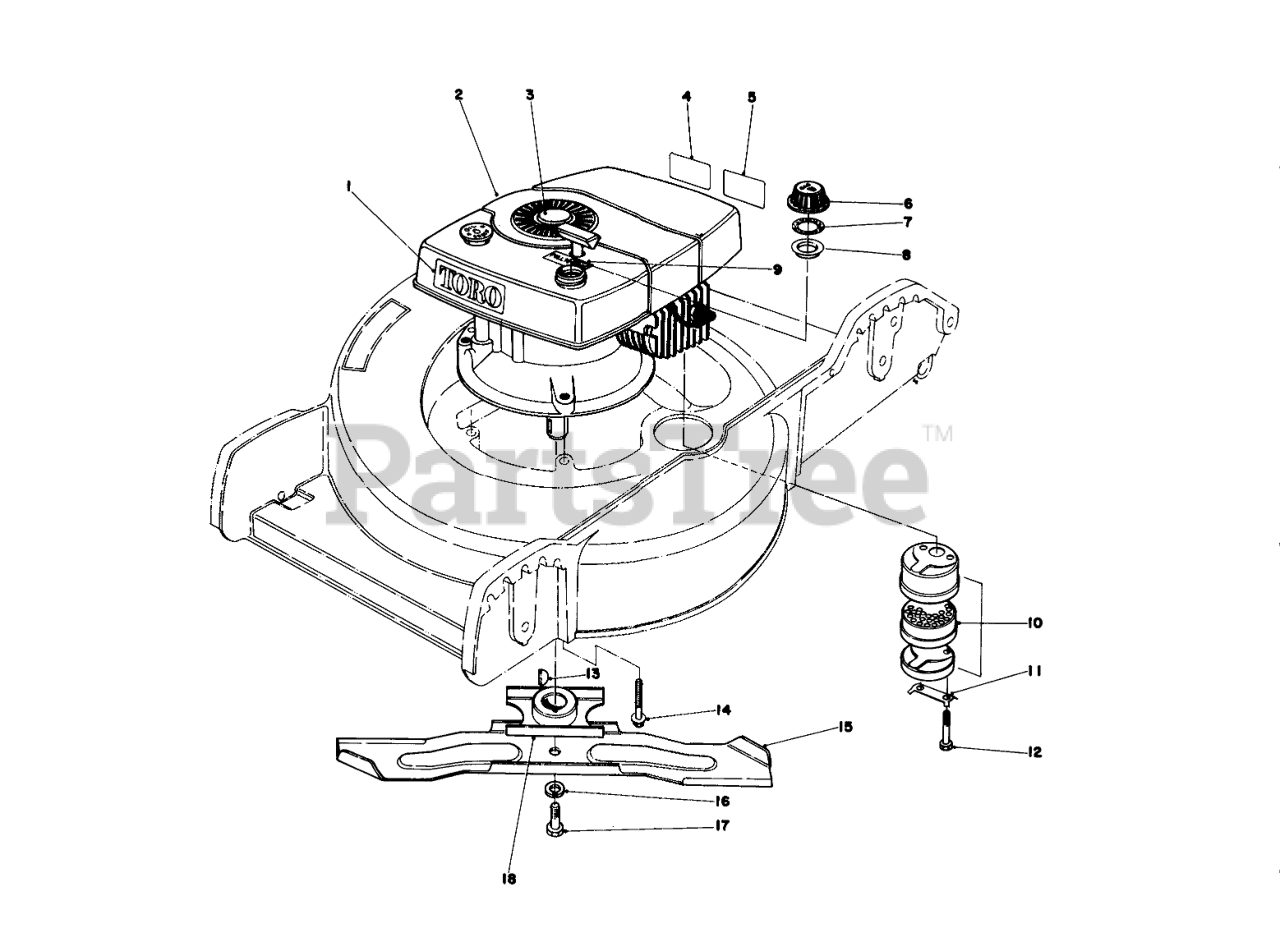

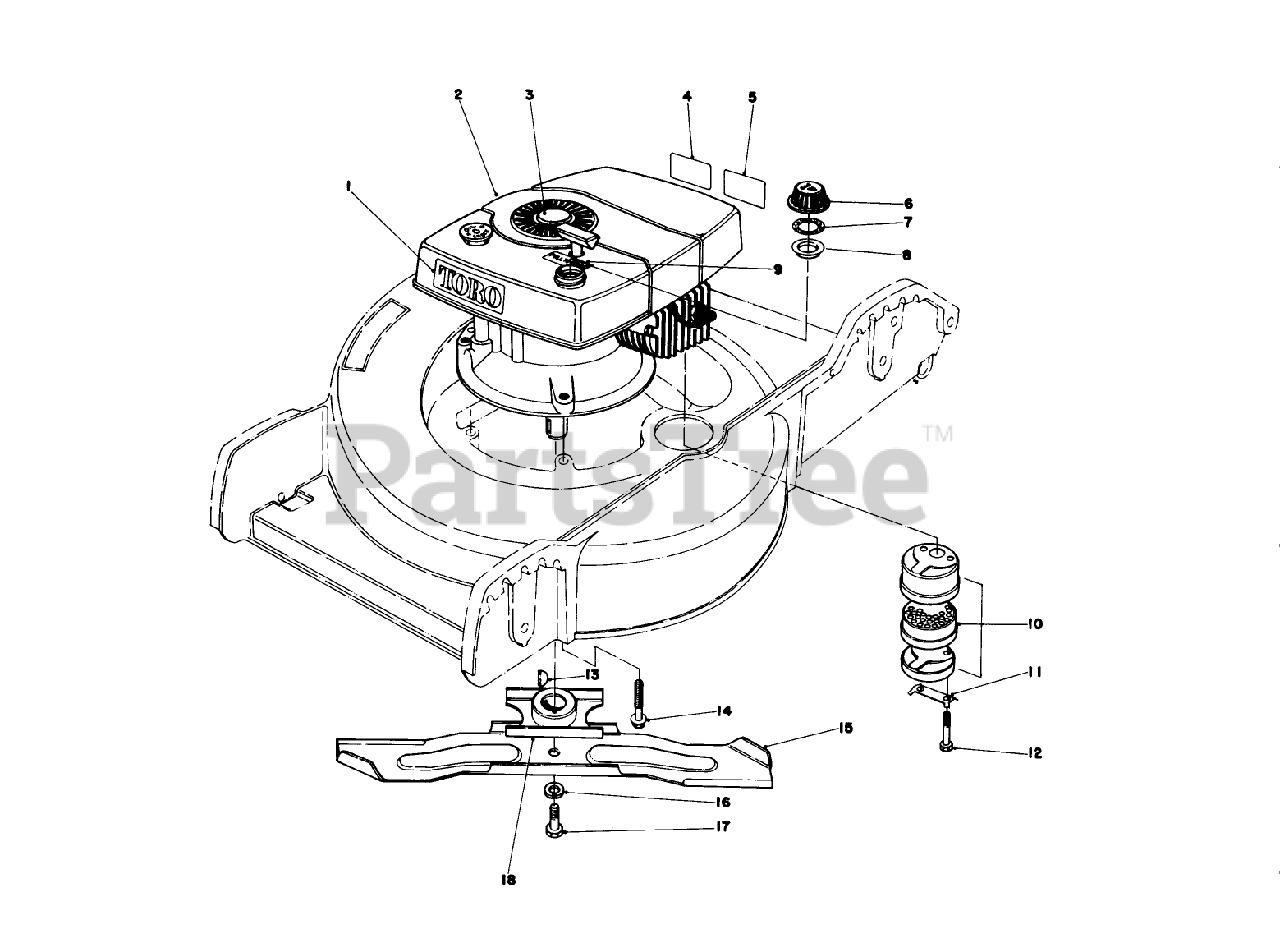

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 26-7730

Decal Toro

$

$

Not available

2

Toro 221-589

Engine

$

$

Currently unavailable

3

Toro 21-4871

Plug Button
(Superseded to 21-4870)

$

$

Not available

4

Toro 37-1580

Decal-Maintenan

$

$

Not available

5

Toro 37-1600

Decal Maintenance

$

$

Not available

6

Toro 27-7870

Gas Cap (Incl. Ref. #7 & 8)
(Superseded to 42-0682)

$

$

Not available

7

Toro 2210-144

GASKET

$9.99

$

Usually ships in 3-6 days

0

8

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available

9

Toro 36-9110

Decal Pull

$

$

Not available

10

Toro 5-4769

Muffler (Incl. Ref. #11 & 12)

$54.99

$

Usually ships in 3-6 days

0

Toro 36-3200

Muffler (Spark Arrestor-Optional)
(Superseded to 39-5930)

Note: Not Illustrated.

$

$

Not available

11

Toro 3-5094

CLIP - LOCKING

$10.99

$

Usually ships in 3-6 days

0

12

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

13

Toro 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 20+

0

14

Toro 11-0581

3/8-16 X 2 CAPSCREW

$3.99

$

Usually ships in 3-6 days

0

15

Toro 33-0490

Blade
(Superseded to 33-0490-03)

$42.99

$

In Stock, only 1 left!

0

16

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

17

Toro 3-5246

SPECIAL SCREW

$

$

Not available

18

Toro 20-2750

Blade Retailer
(Superseded to 49-7890)

$64.99

$

Usually ships in 3-6 days

0
