20758 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

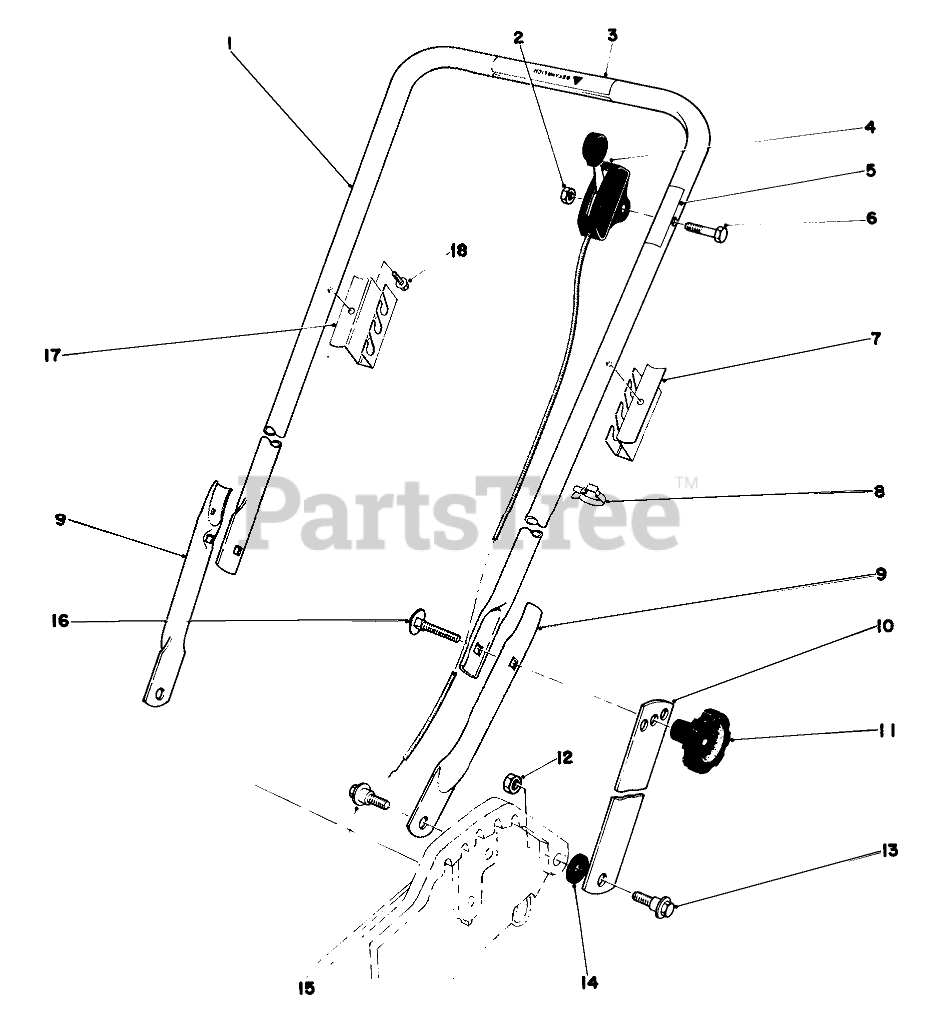

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 11-4959

Upper Handle (Incl. #3)

$

$

Not available

2

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

3

Toro 46-9270

Decal-Handle Wrap (French, English & German)

$

$

Not available

4

Toro 40-5521

Throttle Control
(Superseded to 46-6000)

$42.99

$

Usually ships in 3-6 days

0

5

Toro 39-2750

Decal-Throttle

$

$

Not available

6

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 36-0730

SUPPORT BAG LH

$

$

Not available

8

Toro 218465

Clip

$

$

Currently unavailable

9

Toro 33-0520

Hand-Lower

$

$

Not available

10

Toro 33-0530

18" HANDLE LATCH

$

$

Not available

11

Toro 194050

Horn

$

$

Currently unavailable

12

Toro 329647

Locknut

$

$

Currently unavailable

13

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 4 left!

0

14

Toro 3-3287

SPACER

$5.49

$

In Stock, only 3 left!

0

15

Toro 5-2490

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

16

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 20+

0

17

Toro 36-0740

SUPPORT BAG RH

$

$

Not available

18

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0
