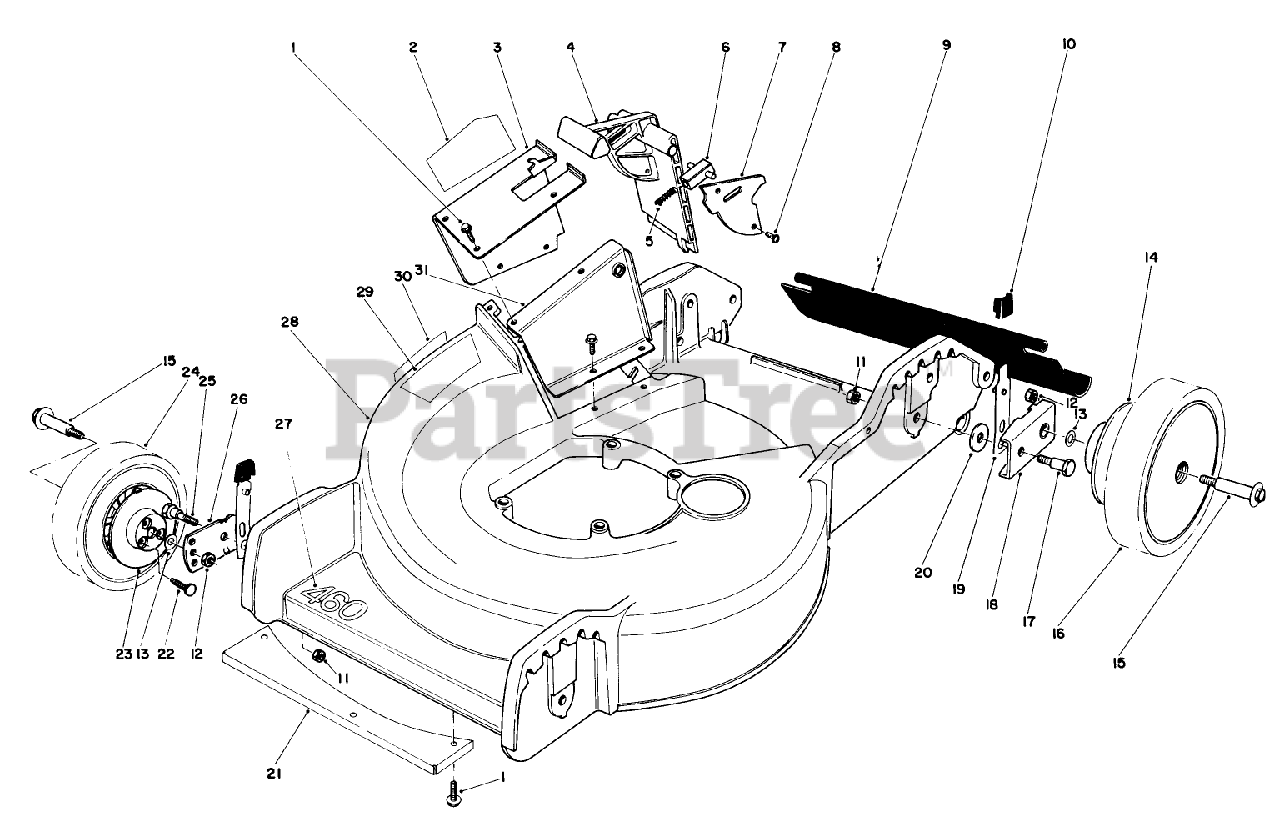

20758 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) Housing Assembly Parts Diagram

Walk-Behind Mower

Housing Assembly Parts Diagram

  • Title

1

Toro 12-3270

SCREW

$3.99

$

In Stock, Qty 9

0

2

Toro 46-8340

DISCONTINUED

$

$

Not available

3

Toro 11-4969

DISCONTINUED

$

$

Not available

4

Toro 33-0410

See Supercession: 33-0412
(Superseded to 33-0412)

$

$

Not available

5

Toro 33-0450

SPRING-COMPRESSION, LATCH

$

$

Not available

6

Toro 47-5550

See Supercession: 47-5551
(Superseded to 47-5551)

$

$

Not available

7

Toro 33-0440

See Supercession: 33-0441
(Superseded to 33-0441)

$

$

Not available

8

Toro 32144-32

SCREW

$2.99

$

Usually ships in 3-6 days

0

9

Toro 33-2380

SHIELD - TRAILING

$76.99

$

Usually ships in 3-6 days

0

10

Toro 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 12

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 32146-6

See Supercession: 3296-6
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 10

0

13

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 10

0

14

Toro 46-1900

DISCONTINUED

$

$

Not available

15

Toro 27-6230

BOLT-WHEEL

$8.99

$

In Stock, only 2 left!

0

16

Toro 46-1140

DISCONTINUED

$

$

Not available

17

Toro 44-5270

PIVOT SCREW

$9.49

$

In Stock, Qty 5

0

18

Toro 47-2940

HP PIVOT ARM ASM

$

$

Not available

19

Toro 25-8000

SPRING ARM ASM

$

$

Not available

20

Toro 33-0390

PIVOT WASHER

$4.49

$

In Stock, only 2 left!

0

21

Toro 46-8980

DISCONTINUED

$

$

Not available

22

Toro 27-6260

SCREW-DRIVE

$1.49

$

In Stock, Qty 20+

0

23

Toro 46-1901

Wheel Cover Inner

$

$

Currently unavailable

24

Toro 46-1110

DISCONTINUED

$

$

Not available

25

Toro 25-3440

PIVOT SCREW

$

$

Not available

26

Toro 33-0400

PIVOT ARM ASSY

$

$

Not available

27

Toro 46-8330

DISCONTINUED

$

$

Not available

28

Toro 11-4059

DISCONTINUED

$

$

Not available

29

Toro 46-9330

DISCONTINUED

$

$

Not available

30

Toro 46-7370

STEP PAD DECAL

$28.99

$

Usually ships in 3-6 days

0

31

Toro 33-0430

DISCONTINUED

$

$

Not available
