207610x52A - Murray 20" Walk-Behind Mower (2005) Mower Housing Assembly Parts Diagram

20" Walk-Behind Mower

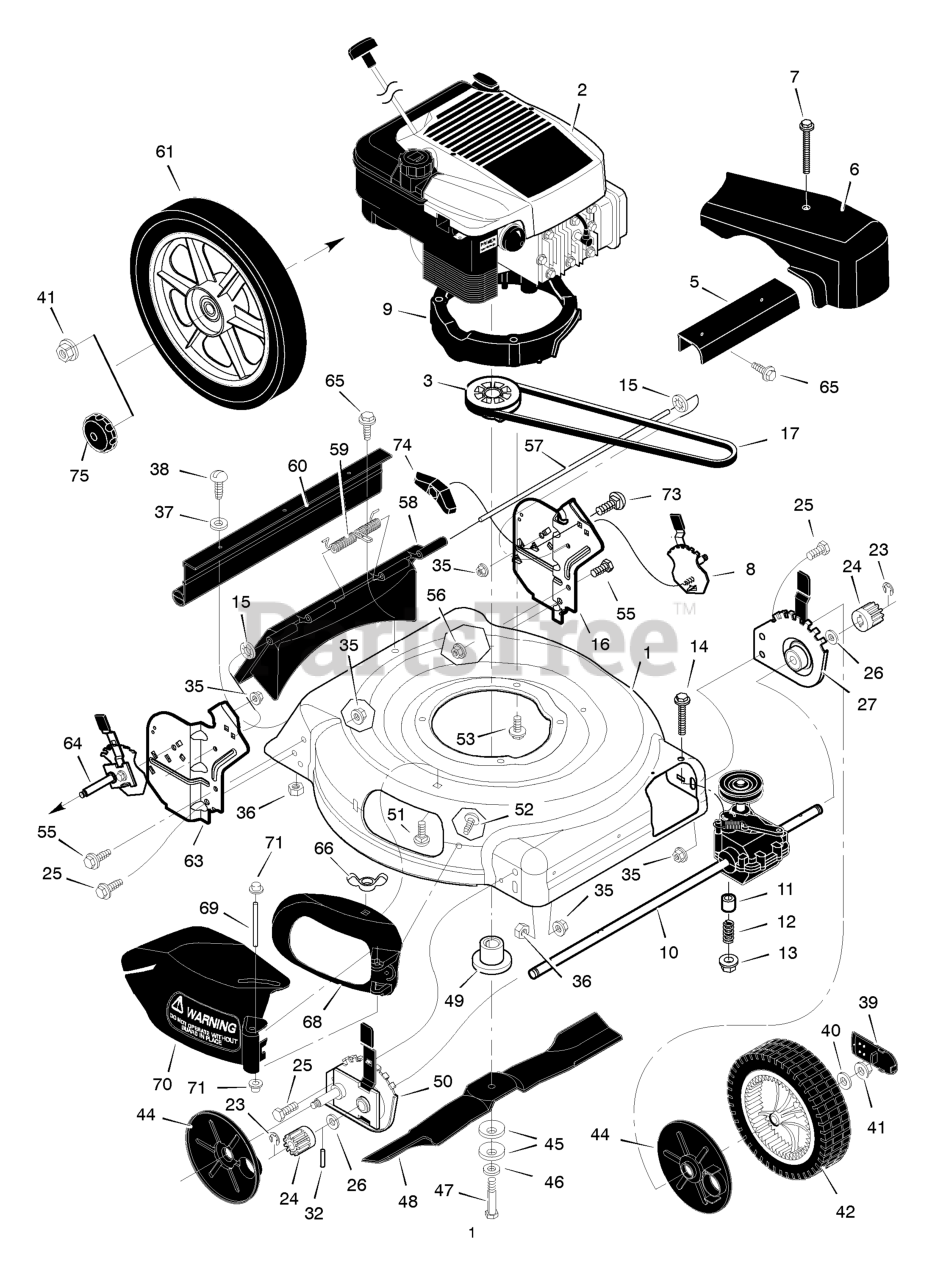

Mower Housing Assembly Parts Diagram

  • Title

1

Housing

$

$

Not available

2

Engine *

$

$

Not available

3

Murray 1101653MA

Pulley, Crankshaft

$9.99

$

Usually ships in 2-12 days

0

4

Murray 032X64MA

Pin, Spring

$3.99

$

Usually ships in 2-12 days

0

5

Murray 1101625

Cover, Axle (Black)

$5.99

$

Usually ships in 2-12 days

0

6

Murray 1101623

Cover, Belt (Black)

$35.99

$

Usually ships in 2-12 days

0

7

Murray 26X304MA

Screw

$4.49

$

Usually ships in 2-12 days

0

8

Murray 672605MA

Adjuster, Left Height

$23.99

$

Usually ships in 2-12 days

0

9

Murray 1101639

Spacer, Engine

$21.99

$

Usually ships in 2-12 days

0

10

Murray 1101619

Transmission *

$90.99

$

Usually ships in 2-12 days

0

11

Murray 043844MA

Spacer

$12.99

$

Usually ships in 2-12 days

0

12

Murray 164X27MA

Spring

$3.99

$

Usually ships in 2-12 days

0

13

Murray 015X88MA

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

14

Murray 01X156MA

Bolt
(Superseded to 703870)

$4.49

$

Usually ships in 2-12 days

0

15

Murray 028X49MA

Retainer, Push

Note: (Included with Ref. No. 58)

$3.99

$

In Stock, Qty 13

0

16

Murray 1102123E701

Bracket, Left Handle

$

$

Currently unavailable

17

Murray 37X128MA

Belt

$20.99

$

Usually ships in 2-12 days

0

23

Murray 011X16MA

E-Ring

$3.99

$

Usually ships in 2-12 days

0

24

Murray 071792MA

Gear, Pinion

$18.99

$

In Stock, only 1 left!

0

25

Murray 001X85MA

Bolt

$3.99

$

Usually ships in 2-12 days

0

26

Murray 17X186MA

Washer

$5.49

$

Usually ships in 2-12 days

0

27

Murray 672603MA

Adjuster, Left Frt. Height

$113.99

$

In Stock, only 1 left!

0

32

Murray 043629MA

Pin, Drive

$5.99

$

In Stock, Qty 6

0

35

Murray 015X68MA

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

36

Murray 15X102MA

Nut, Hex

$3.99

$

Usually ships in 2-12 days

0

37

Murray 017X38MA

Washer

$3.99

$

Usually ships in 2-12 days

0

38

Murray 004X21MA

Screw

$3.99

$

Usually ships in 2-12 days

0

39

Murray 043615MA

Cap, Hub

$4.49

$

Usually ships in 2-12 days

0

40

Murray 17X169MA

Washer
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

41

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

42

Murray 071133MA

Wheel, Drive

$50.99

$

In Stock, only 2 left!

0

44

Murray 071780MA

Cover, Dust

$5.99

$

In Stock, only 2 left!

0

45

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

46

Murray 17X124MA

Washer

$4.49

$

Usually ships in 2-12 days

0

47

Murray 01X144MA

Bolt

$5.49

$

In Stock, Qty 5

0

48

Murray 672763E701MA

Blade

$26.99

$

In Stock, only 4 left!

0

49

Murray 1101336MA

Adapter, Blade

$9.99

$

Usually ships in 2-12 days

0

50

Murray 672602MA

Adjuster, Right Frt. Height

$79.99

$

Usually ships in 2-12 days

0

51

Murray 002X16MA

Bolt, Carriage

$3.99

$

Usually ships in 2-12 days

0

52

Murray 26X221MA

Screw

$3.49

$

Usually ships in 2-12 days

0

53

Murray 025X11MA

Bolt, Engine

$6.99

$

Usually ships in 2-12 days

0

55

Murray 001X45MA

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

56

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

57

Murray 215X17 Z

Rod, Pivot

Note: (Included with Ref. No. 58)

$

$

Currently unavailable

58

Murray 672610

Door, Rear (Gray)

$11.99

$

Usually ships in 2-12 days

0

59

Murray 166X44MA

Spring

Note: (Included with Ref. No. 58)

$14.99

$

In Stock, only 3 left!

0

60

Murray 671969MA

Deflector, Rear

$18.99

$

Usually ships in 2-12 days

0

61

Murray 1102159

Wheel, Rear

$83.99

$

In Stock, only 1 left!

0

63

Murray 1102122E701

Bracket, Right Handle

$

$

Currently unavailable

64

Murray 672604MA

Adjuster, Right Height

$24.99

$

Usually ships in 2-12 days

0

65

Murray 26X245MA

Screw

$4.49

$

In Stock, Qty 6

0

66

Murray 014X86MA

Wingnut
(Superseded to 703141)

$3.49

$

In Stock, Qty 12

0

68

Murray 671926

Bezel

$

$

Not available

69

Murray 215X18 Z

Pin, Pivot

$

$

Currently unavailable

70

Murray 671927

Deflector, Chute (Black)

$3.99

$

Usually ships in 2-12 days

0

71

Murray 028X42MA

Cap, Push

$3.99

$

Usually ships in 2-12 days

0

73

Murray 002X81MA

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

74

Murray 071495MA

Knob

$4.99

$

In Stock, only 3 left!

0

75

Murray 672449MA

Knob

$5.99

$

In Stock, only 2 left!

0

--

Murray F-050436L

Instruction Book

$

$

Currently unavailable
